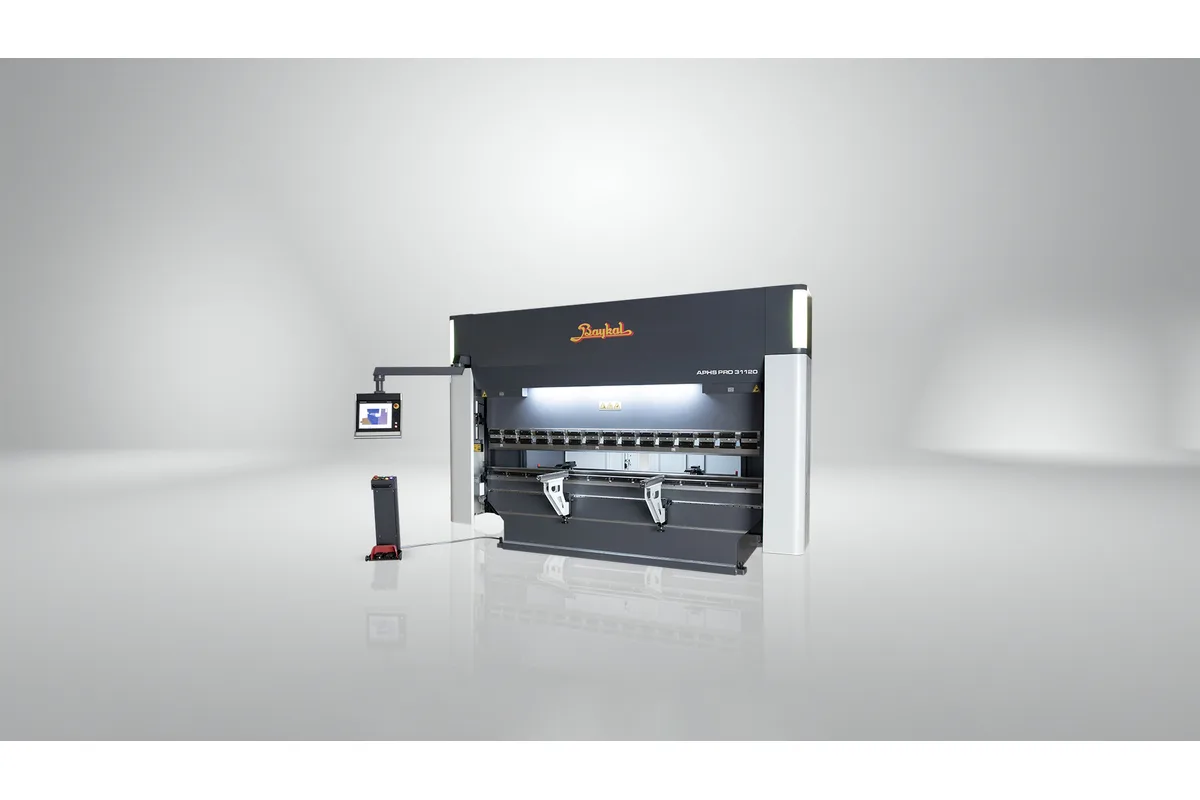

Baykal APHS PRO 6106x240
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS PRO 6106x240 cost?
Price estimate
We do not have a price for the Baykal APHS PRO 6106x240 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Six metres of bending length is what the Baykal APHS PRO 6106x240 is bought for. The bed measures 6,100 mm (240.2 in) and the force is 2,400 kN, the lowest of the five six-metre columns in Baykal's APHS PRO data.
Length dominates every other figure. The side frames stand 5,100 mm (200.8 in) apart, the machine weighs approximately 25 Ton, and the bed is 1,100 mm (43.3 in) off the floor. That bed height is well above the 880 mm (34.6 in) of the APHS 4110x240 and will usually mean a pit or an operator platform.
In cross-section it is a mixture. The throat gap is the deep one, 500 mm (19.7 in), but the stroke is 260 mm (10.2 in) and the table 90 mm (3.5 in) wide, as on the light models. Daylight opening is 500 mm (19.7 in), the smallest of the six-metre group.
Drive and speeds: 22 kW (29.5 hp), a 300 L tank, 140 mm/s approach, 10 mm/s working and 100 mm/s return. This is the only six-metre size that bends at 10 mm/s.
On a bed this long, deflection and part handling decide the result. Baykal's PRO description lists CNC motorized crowning and a front sheet follower with sliding arm for heavy and long pieces. Check which of them are included.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 2,400 kN |
| Bending Length | 6,100 mm (240.2 in) |
| Distance Between Frames | 5,100 mm (200.8 in) |
| Throat Gap | 500 mm (19.7 in) |
| Stroke | 260 mm (10.2 in) |
| Daylight Opening | 500 mm (19.7 in) |
| Table Width | 90 mm (3.5 in) |
| Bed Height | 1,100 mm (43.3 in) |
| Side Frame Width | 1,960 mm (77.2 in) |
| Approach Speed | 140 mm/s |
| Working Speed | 10 mm/s |
| Return Speed | 100 mm/s |
| Motor Power | 22 kW (29.5 hp) |
| Oil Tank Volume | 300 L |
| Machine Weight | 25 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,100 mm (240.2 in) bending length
- Fastest of the six-metre sizes: 140 mm/s approach and 10 mm/s working speed
- 5,100 mm (200.8 in) between the side frames
- Front sheet follower with sliding arm appears in Baykal's PRO description
- Lightest six-metre model at approximately 25 Ton
Limitations
- 2,400 kN is modest over 6,100 mm (240.2 in)
- Daylight opening of only 500 mm (19.7 in) with a 260 mm (10.2 in) stroke
- Bed height of 1,100 mm (43.3 in)
- Narrow 90 mm (3.5 in) table for a machine this long
Best For
Frequently Asked Questions
01
Up to 6,100 mm (240.2 in). Parts no wider than 5,100 mm (200.8 in) pass between the side frames; longer ones are limited to the 500 mm (19.7 in) throat gap.
02
For thin and medium sheet over the full length, or thicker plate on shorter bends. If full-length plate is the job, the APHS PRO 6108x300 has 3,000 kN and the APHS PRO 6116x600 has 6,000 kN on the same bending length.
03
Baykal lists a bed height of 1,100 mm (43.3 in). The data sheet does not explain it, but a long bed needs a deep beam to resist deflection. Plan the floor level or a platform around that figure.
04
Baykal's PRO text names linear guided moveable front support arms and a front sheet follower with sliding arm, described as making heavy and long pieces more precise to process. The technical data does not say whether they are standard.
