Baykal APHS HYBRID 41240

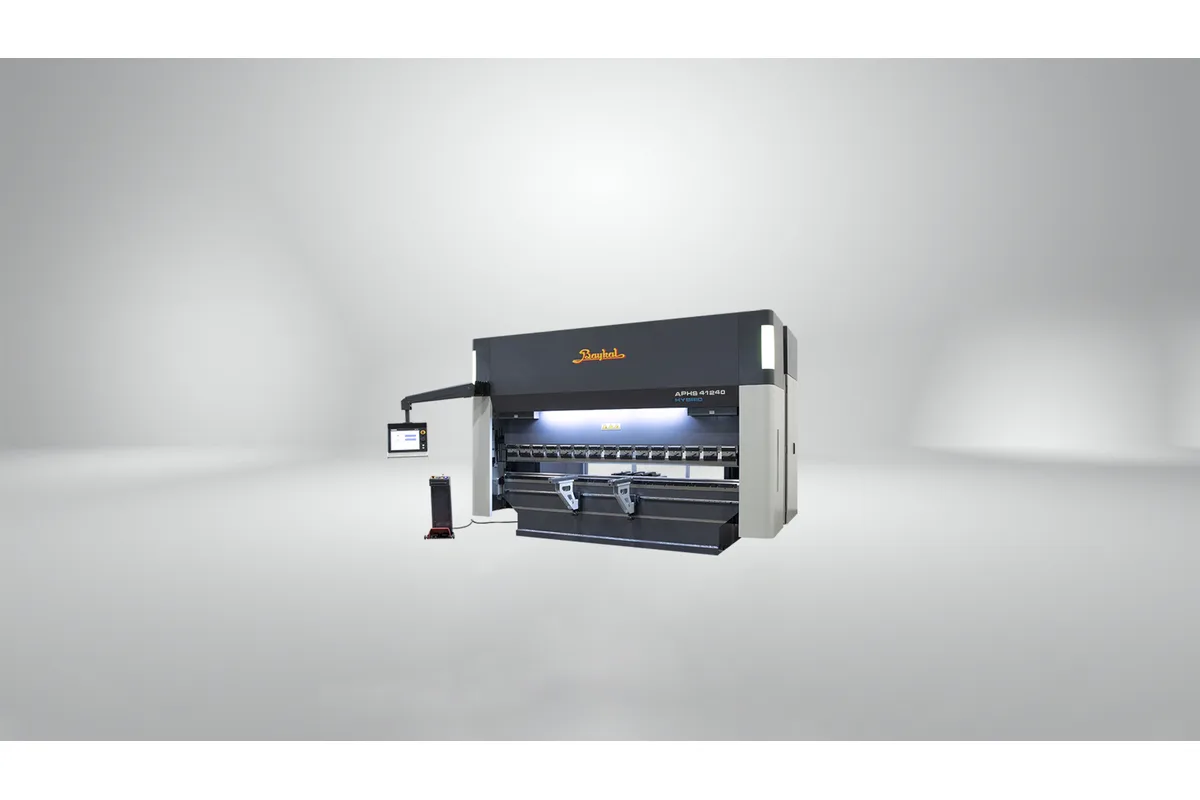

Image: baykal.com.tr, Baykal
Key Specifications
bending length
throat gap
stroke
daylight opening
approach speed
working speed
How much does the Baykal APHS HYBRID 41240 cost?
Price estimate
We do not have a price for the Baykal APHS HYBRID 41240 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Baykal APHS HYBRID 41240 is the third of the four 4,100 mm (161.4 in) models in Baykal's hybrid table. One caution comes first: the bending force cell of this column in the maker's data sheet does not agree with the model designation, so no force figure is shown on this page. Confirm the rated force with Baykal before relying on it.
The rest of the column is consistent and tells a clear story. This is one of the models whose ram speeds carry a footnote. Standard approach and return are 160 mm/s and the standard working speed is 8 mm/s; with the H+Package they become 200 mm/s and 10 mm/s. Baykal's product page ties that package to the 240-300 tons models.
Frame dimensions are those of the lighter long machines, not of the largest. Stroke is 260 mm (10.2 in), the daylight opening 530 mm (20.9 in) and the throat gap 410 mm (16.1 in). Buyers who need the 320 mm (12.6 in) stroke and 500 mm (19.7 in) throat have to go to the APHS HYBRID 41300.
Drive and backgauge follow the series pattern. Rated power is listed as 2x9.2 kW and oil capacity as 2x55 L. The X axis has 750 mm (29.5 in) of range at 350 mm/s, the R axis 160 mm (6.3 in) at 240 mm/s. Baykal describes the hybrids as ready for robotic applications and promotes them on 60% energy saving and 60% less oil than its standard hydraulic press brakes, claims that are the maker's own.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 4,100 mm (161.4 in) |
| Throat Gap | 410 mm (16.1 in) |
| Stroke | 260 mm (10.2 in) |
| Daylight Opening | 530 mm (20.9 in) |
| Approach Speed | 160 mm/s; 200 mm/s with H+Package |
| Working Speed | 8 mm/s; 10 mm/s with H+Package |
| Return Speed | 160 mm/s; 200 mm/s with H+Package |
| X Axis Range | 750 mm (29.5 in) |
| X Axis Speed | 350 mm/s |
| R Axis Range | 160 mm (6.3 in) |
| R Axis Speed | 240 mm/s |
| Rated Power | 2x9.2 kW |
| Oil Capacity | 2x55 L |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,100 mm (161.4 in) bending length on the hybrid drive
- H+Package option raises approach and return to 200 mm/s
- Oil capacity of 2x55 L across the two drive units
- 530 mm (20.9 in) daylight opening
- X axis backgauge speed of 350 mm/s
Limitations
- The bending force printed for this column in Baykal's data sheet conflicts with the model name and must be confirmed
- Standard approach speed is 160 mm/s and working speed 8 mm/s
- Stroke of 260 mm (10.2 in) and throat of 410 mm (16.1 in), smaller than the APHS HYBRID 41300
- The H+Package is an extra
Best For
Frequently Asked Questions
01
Baykal's data sheet prints a force for this column that does not match the model designation, so it is not repeated here. Ask Baykal to confirm the rated force in writing before sizing work for this machine.
02
As standard, 160 mm/s approach, 8 mm/s working and 160 mm/s return. With the H+Package the table gives 200 mm/s, 10 mm/s and 200 mm/s. Baykal's sheet does not say what the package consists of.
03
Stroke is 260 mm (10.2 in), the daylight opening 530 mm (20.9 in) and the throat gap 410 mm (16.1 in). The APHS HYBRID 41300 has a 320 mm (12.6 in) stroke and a 500 mm (19.7 in) throat gap.
04
Rated power is 2x9.2 kW with 2x55 L of oil. The backgauge X axis has a range of 750 mm (29.5 in) at 350 mm/s and the R axis a range of 160 mm (6.3 in) at 240 mm/s.
