Amada EGB 8025e
Image: amada.com, Amada
Key Specifications
control
press capacity
max bending length
distance between frames
open height
stroke
How much does the Amada EGB 8025e cost?
Estimated price range
Our best estimate for a cnc press brake in this class — not a quote from Amada. Configuration moves it a long way.
Overview

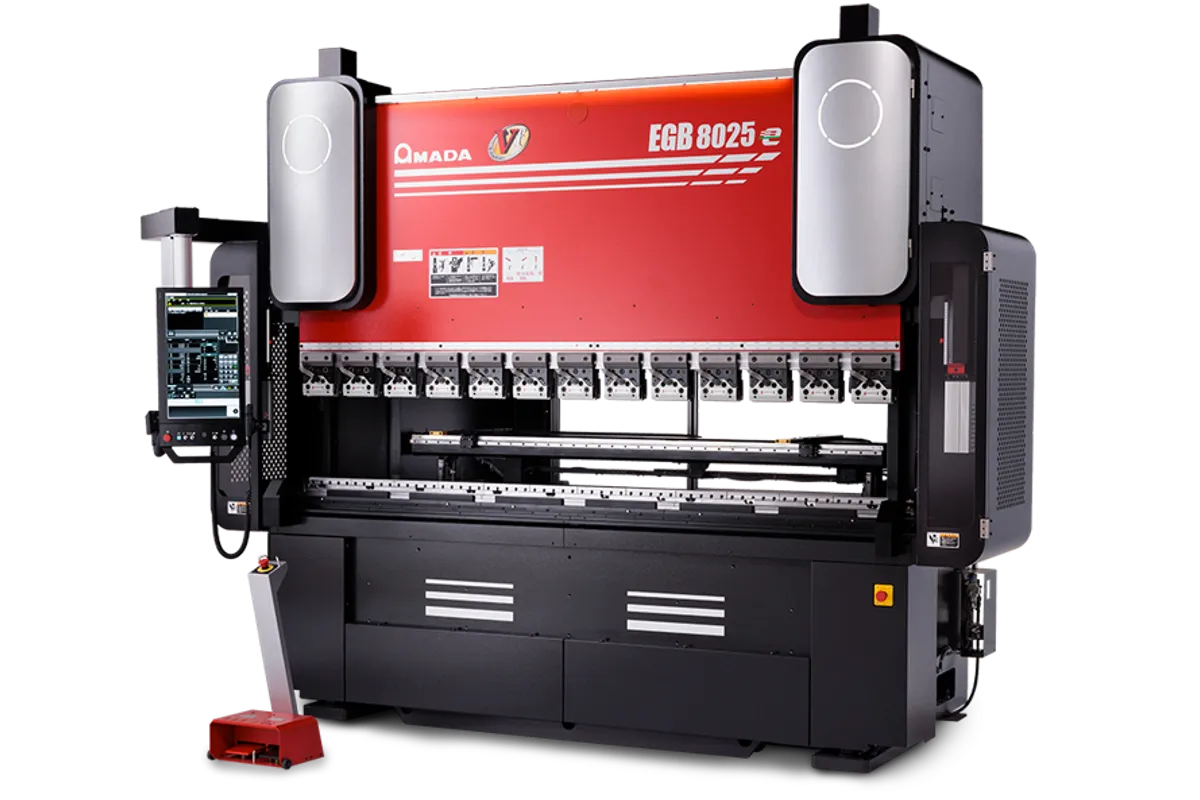

The Amada EGB 8025e pairs 800 kN of press capacity with a 2600 mm maximum bending length. It carries 10 axes and the AMNC 4ie control, and weighs approximately 7200 kg.
What separates it from the EGB 6020e is length and force, nothing else in the table. The EGB 6020e stops at 2150 mm and 600 kN with 1700 mm between its frames. Here the frames stand 2220 mm apart, which is the more useful gain: a panel up to that width slides between them and can be pushed back as far as the gauging allows, while anything longer, up to the full 2600 mm, stays within the 450 mm throat.
Tool space is unchanged from the shorter machine. The ram has a 250 mm stroke, and the open height is 520 mm as standard or 620 mm on the high body. Speeds are 250 mm/s for approach and return and 25 mm/s for bending. Force per unit of bend length works out slightly higher than on the EGB 6020e, so this is a longer machine of the same class, not one meant for much thicker plate.
Plan the installation around 3443 mm of length, 2144 mm of width and 2799 mm of height. The oil capacity is listed as 0 l, so no hydraulic oil service has to be scheduled.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AMNC 4ie |
| Press Capacity | 800 kN |
| Max Bending Length | 2600 mm |
| Distance Between Frames | 2220 mm |
| Open Height | 520 mm / 620 mm (high body) |
| Stroke | 250 mm |
| Throat Depth | 450 mm |
| Oil Capacity | 0 l |
| Approach Speed | 250 mm/s |
| Bending Speed | 25 mm/s |
| Return Speed | 250 mm/s |
| Number of Axes | 10 |
| Machine Length | 3443 mm |
| Machine Width | 2144 mm |
| Machine Height | 2799 mm |
| Machine Weight | 7200 kg (approximate) |
Specifications sourced from amada.eu — verified 2026-10-03
Strengths & Limitations
Strengths
- 2220 mm between the frames lets wide panels pass through instead of being held to the throat depth
- 800 kN over a 2600 mm bending length, against 600 kN and 2150 mm on the EGB 6020e
- High body version raises the open height from 520 mm to 620 mm
- Ram approach and return at 250 mm/s on a 250 mm stroke
- 0 l oil capacity in the table, so hydraulic oil service is not part of upkeep
Limitations
- Bends longer than 2220 mm are restricted to the 450 mm throat depth
- At approximately 7200 kg and 3443 mm long it needs more floor than the EGB 6020e (approximately 5500 kg, 2940 mm)
- Bending speed stays at 25 mm/s; the extra size brings no faster forming
- 800 kN is the ceiling: heavy plate at full length is outside this machine's range
Best For
Frequently Asked Questions
01
The maximum bending length is 2600 mm. Between the frames there is 2220 mm, so parts up to that width are not limited by the frame; longer ones have to stay within the 450 mm throat depth.
02
When parts exceed what the EGB 6020e covers: 2150 mm of bending length, 1700 mm between the frames and 600 kN. The EGB 8025e raises those to 2600 mm, 2220 mm and 800 kN. Stroke, throat depth, open height and ram speeds are identical, so there is no other reason in the table to go larger.
03
520 mm on the standard machine and 620 mm on the high body, with a 250 mm stroke in both cases. Pick the high body if your punches and dies are tall or if box sides have to clear the tooling as the part is lifted out.
04
The machine is 3443 mm long, 2144 mm wide and 2799 mm high, and weighs approximately 7200 kg. The height matters for doorways and crane hooks as much as for the final position.
05
The AMNC 4ie, driving 10 axes. Amada's table gives the axis count without naming the individual axes, so ask how the 10 axes are divided between the ram and the back gauge when you configure the machine.
