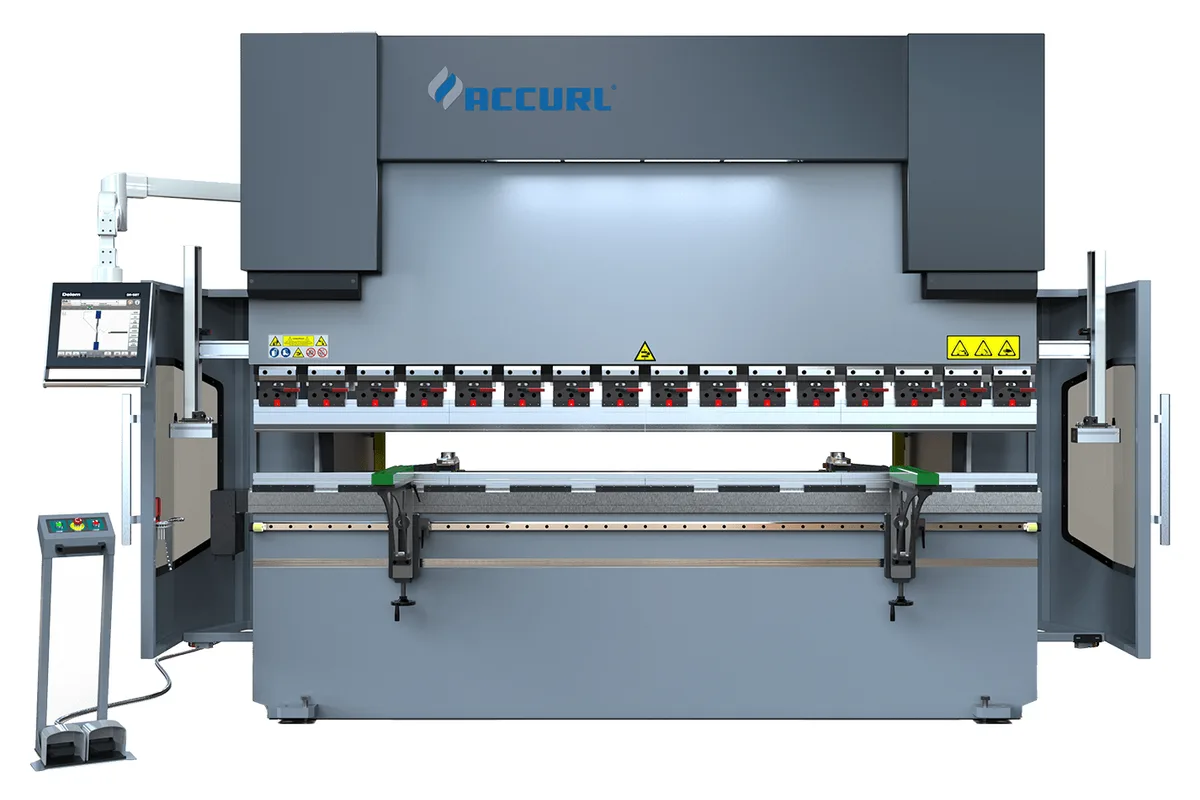

Accurl EURO-PRO B 50320
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
stroke
table height
How much does the Accurl EURO-PRO B 50320 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 50320 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO-PRO B 50320 is the first five-metre press brake in the EURO-PRO B table, with a bending length of 5,000 mm (196.9 in) and a capacity of 3,200 kN. Between its side frames there are 4,050 mm (159.4 in).
Five metres is a useful in-between. It takes parts that a four-metre machine cannot, such as long tipper sides and lighting columns, at a weight of 26,000 kg (57,319 lb). The six-metre EURO-PRO B 60400 is listed at 38,000 kg (83,774 lb).
The ram has a stroke of 300 mm (11.8 in) and speeds of 120 mm/s on approach, 8 mm/s in the bend and 85 mm/s on return. The table is 180 mm (7.1 in) wide and 1,180 mm (46.5 in) high, the highest working table of the whole series.
Two entries need a word. This page gives no daylight opening for the model; get that figure from Accurl. And the motor is listed as 18.5 kW (24.8 hp), less than the 22 kW (29.5 hp) of the shorter EURO-PRO B 40320, which is worth querying.
The machine is 5,300 mm (208.7 in) long, 2,250 mm (88.6 in) wide and 3,320 mm (130.7 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,200 kN |
| Bending Length | 5,000 mm (196.9 in) |
| Distance Between Side Frames | 4,050 mm (159.4 in) |
| Gap | 400 mm (15.7 in) |
| Stroke | 300 mm (11.8 in) |
| Table Height | 1,180 mm (46.5 in) |
| Table Width | 180 mm (7.1 in) |
| Approach Speed | 120 mm/s |
| Bending Speed | 8 mm/s |
| Return Speed | 85 mm/s |
| Motor Power | 18.5 kW (24.8 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 5,300 mm (208.7 in) |
| Machine Width | 2,250 mm (88.6 in) |
| Machine Height | 3,320 mm (130.7 in) |
| Machine Weight | 26,000 kg (57,319 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 5,000 mm (196.9 in) bending length with 3,200 kN
- 4,050 mm (159.4 in) between the side frames
- 300 mm (11.8 in) stroke for deep formed parts
- 26,000 kg (57,319 lb), far lighter than the six-metre models
Limitations
- No daylight figure is given for this model here
- Table height of 1,180 mm (46.5 in), the highest in the series
- Listed motor of 18.5 kW (24.8 hp) is smaller than on shorter models of equal force
- Return speed of 85 mm/s and bending at 8 mm/s
Best For
Frequently Asked Questions
01
Up to 5,000 mm (196.9 in). The side frames are 4,050 mm (159.4 in) apart, and the gap for parts that pass beyond them is 400 mm (15.7 in).
02
It is not listed on this page. The four-metre EURO-PRO B 40320 of the same capacity has 560 mm (22 in) of daylight and the same 300 mm (11.8 in) stroke, but the figure for this model should come from Accurl.
03
The specification table lists 18.5 kW (24.8 hp). The standard equipment for the series names a Siemens efficiency motor of class IE3 and a HOERBIGER hydraulic valve block, pump and valves.
04
Yes, the EURO-PRO B 50400 with 4,000 kN, a 30 kW (40.2 hp) motor and a 320 mm (12.6 in) stroke, at a weight of 32,000 kg (70,547 lb). Its table is lower as well.
