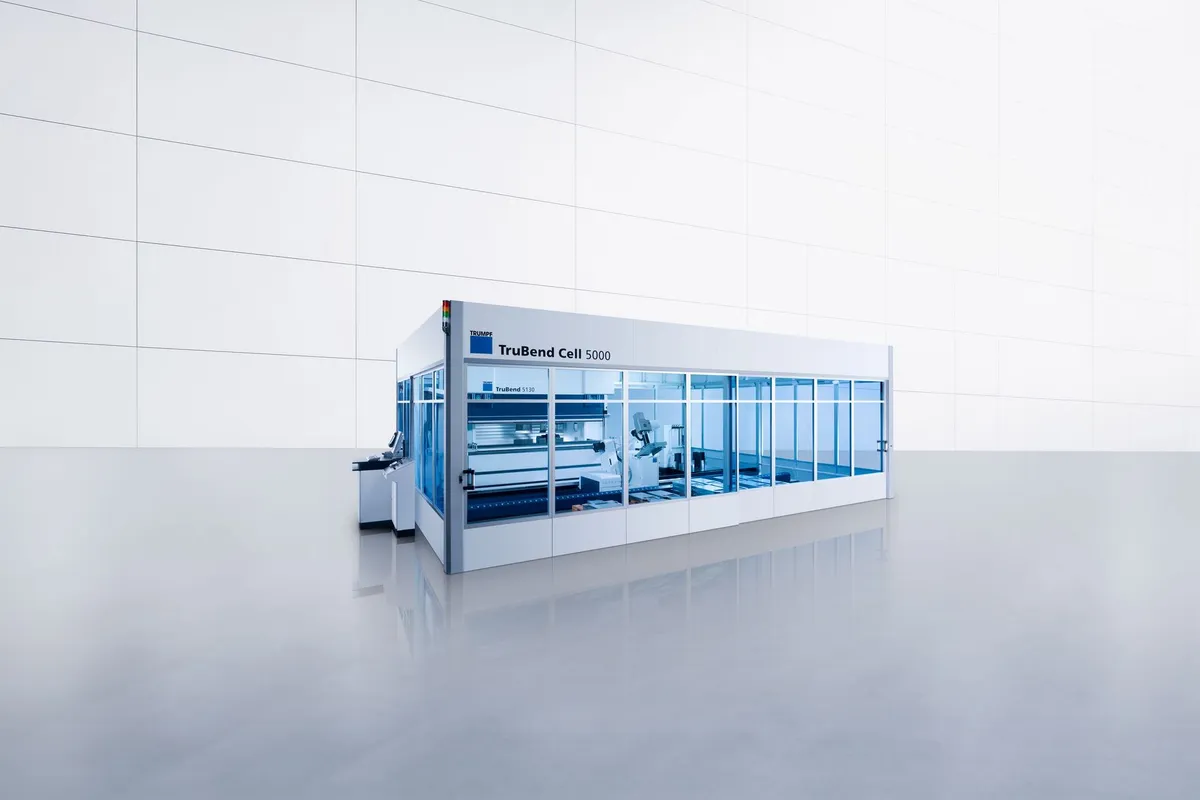

Trumpf TruBend Cell 5000

Est. $600,000 - $1,200,000+ (new, full cell configuration) Specs verified 2026-10-03 · trumpf.com Updated 2026-10-03

Image: trumpf.com, Trumpf

Key Specifications

bending length range

3,230 - 4,420 mm (127.2 - 174.0 in)

usable open height

615 mm

throat depth

420 mm

rapid speed

200 mm/s (7.9 in/s)

max bending speed

25 mm/s (1.0 in/s)

bendmaster 60 capacity

60 kg, parts up to 2,000 x 1,000 mm

How much does the Trumpf TruBend Cell 5000 cost?

Estimated price range

Est.$600,000 - $1,200,000+ (new, full cell configuration)

Our best estimate for a cnc press brake in this class — not a quote from Trumpf. Configuration moves it a long way.

Overview

The TruBend Cell 5000 is Trumpf's automated bending cell for medium and large parts. It is built on press brakes with bending lengths from 3,230 to 4,420 mm (127.2 - 174.0 in) and comes with one of two handling units, the BendMaster 60 or the BendMaster 150.

The BendMaster chosen sets the part envelope. The BendMaster 60 carries 60 kg and handles parts up to 2,000 x 1,000 mm. The BendMaster 150 carries 150 kg and takes parts up to 3,000 x 1,500 mm. On part weight the table needs careful reading: Trumpf states parts of up to 100 kg (220 lb), while the detailed rows give a maximum part weight of 40 kg beside the 60 kg carrying capacity and the 2000 mm x 1000 mm part size. The 40 kg figure therefore reads as the limit with the smaller unit. Have the part weight confirmed for the unit you are quoted.

The detailed rows describe the shortest machine: a press force of 1300 kN on a 3230 mm bending length, with 2690 mm between the columns, 615 mm of usable open height and a 420 mm throat. The ram comes down at 200 mm/s (7.9 in/s) in rapid and presses at up to 25 mm/s (1.0 in/s). The back gauge is a 6-axis CNC unit, and angle measurement is by ACB Wireless and ACB Laser.

For layout, the path length is 8 m - 16 m. The sheet stack can be 700 mm high and finished parts 1000 mm. Base machines weigh 11,800 - 23,400 kg (26,015 - 51,588 lb) and measure 3,980 - 5,180 x 1,800 - 2,055 x 2,835 - 3,200 mm. The BendMaster is listed at 620 kg and each 2000 mm floor track element at 310 kg.

Full Specifications

Parameter	Value
Bending Length Range	3,230 - 4,420 mm (127.2 - 174.0 in)
Usable Open Height	615 mm
Throat Depth	420 mm
Rapid Speed	200 mm/s (7.9 in/s)
Max Bending Speed	25 mm/s (1.0 in/s)
Bendmaster 60 Capacity	60 kg, parts up to 2,000 x 1,000 mm
Bendmaster 150 Capacity	150 kg, parts up to 3,000 x 1,500 mm
Max Part Weight	Up to 100 kg (220 lb)
Back Gauge	6-axis CNC
Angle Measurement	ACB Wireless and ACB Laser
Machine Weight Range	11,800 - 23,400 kg (26,015 - 51,588 lb) base machine
Machine Dimensions Range	3,980 - 5,180 x 1,800 - 2,055 x 2,835 - 3,200 mm
Press Force	1300 kN
Bending Length	3230 mm
Width Between Columns	2690 mm
Rapid Downward Movement	200 mm/s
Maximum Y Press Operation	25 mm/s
Maximum Part Size	2000 mm x 1000 mm
Profiles	up to 2500 mm
Maximum Part Weight	40 kg
Maximum Carrying Capacity	60 kg
Minimum Sheet Thickness	0.7 mm
Path Length	8 m - 16 m
Max Sheet Stack	700 mm
Maximum Stack Height for Finished Parts	1000 mm
Bendmaster Weight	620 kg
Weight of Basic Machine	11800 kg
Trubend Machine	3980 mm x 1800 mm x 2835 mm
Floor Track of Each 2000 Mm Element	310 kg
Wide Range of Components	Process small and large parts weighing up to 220 lbs. with the gripper and vacuum gripping technology
Twice As Good	BendMaster 60 and BendMaster 150: The right automation solution for every range of parts

Specifications sourced from trumpf.com — verified 2026-10-03

Strengths & Limitations

Strengths

Two handling units: BendMaster 60 for 60 kg and parts up to 2,000 x 1,000 mm, BendMaster 150 for 150 kg and parts up to 3,000 x 1,500 mm
Angle measurement with ACB Wireless and ACB Laser
Automatic gripper change, with gripper and vacuum gripping technology
615 mm of usable open height and a 420 mm throat for the BendMaster to manoeuvre flanged parts
Path length of 8 m - 16 m, so the track can be matched to the number of stacks
1300 kN press force on the 3230 mm machine, with a 6-axis CNC back gauge

Limitations

Part weight is listed two ways, up to 100 kg (220 lb) and 40 kg, so the limit depends on the BendMaster fitted
Minimum sheet thickness is 0.7 mm
Maximum Y press speed is 25 mm/s (1.0 in/s)
Base machines weigh 11,800 - 23,400 kg (26,015 - 51,588 lb) before the BendMaster and floor track are added

Best For

Automated bending of large panels up to 3,000 x 1,500 mm with the BendMaster 150 Medium parts up to 2,000 x 1,000 mm with the BendMaster 60 Long parts on bending lengths of 3,230 - 4,420 mm (127.2 - 174.0 in) Angle-critical parts, using ACB Laser or ACB Wireless measurement Profiles up to 2500 mm long

Frequently Asked Questions

01 What is the difference between the BendMaster 60 and the BendMaster 150?

Capacity and part size. The BendMaster 60 is listed with a 60 kg capacity and parts up to 2,000 x 1,000 mm. The BendMaster 150 is listed with 150 kg and parts up to 3,000 x 1,500 mm. Trumpf presents the two as covering different ranges of parts within the same cell.

02 How heavy a part can the TruBend Cell 5000 bend?

Trumpf states that the cell processes parts weighing up to 100 kg (220 lb). The detailed rows, which sit alongside a 60 kg carrying capacity, give a maximum part weight of 40 kg. Ask Trumpf which limit applies to the BendMaster in your quotation.

03 What press brake sizes are available in the TruBend Cell 5000?

Bending lengths range from 3,230 to 4,420 mm (127.2 - 174.0 in). The 3230 mm machine is listed with 1300 kN of press force, 2690 mm between the columns, 615 mm of usable open height and a 420 mm throat, and it measures 3980 mm x 1800 mm x 2835 mm.

04 How does the TruBend Cell 5000 measure bend angles?

The table lists ACB Wireless and ACB Laser for angle measurement, and Trumpf describes the result as "First part, perfect part". Measuring the angle in the machine matters in a cell because no operator is checking the first part by hand.

05 How much material can the TruBend Cell 5000 hold?

The maximum sheet stack is 700 mm and the maximum stack height for finished parts is 1000 mm. The path length is 8 m - 16 m, and a longer track leaves room for more stacking positions. Minimum sheet thickness is 0.7 mm.

06 How does the TruBend Cell 5000 relate to the TruBend 5130?

The smallest base machine in the cell matches the TruBend 5130 on the two figures both tables give: a 3,230 mm (127 in) bending length and a weight of 11,800 kg (26,015 lb). The cell adds a 620 kg BendMaster and floor track at 310 kg per 2000 mm element.
