Ganesh GEN MILL 6328

Q: How much does the Ganesh GEN MILL 6328 cost?

The price estimate for the Ganesh GEN MILL 6328 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-gen-mill-6328#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

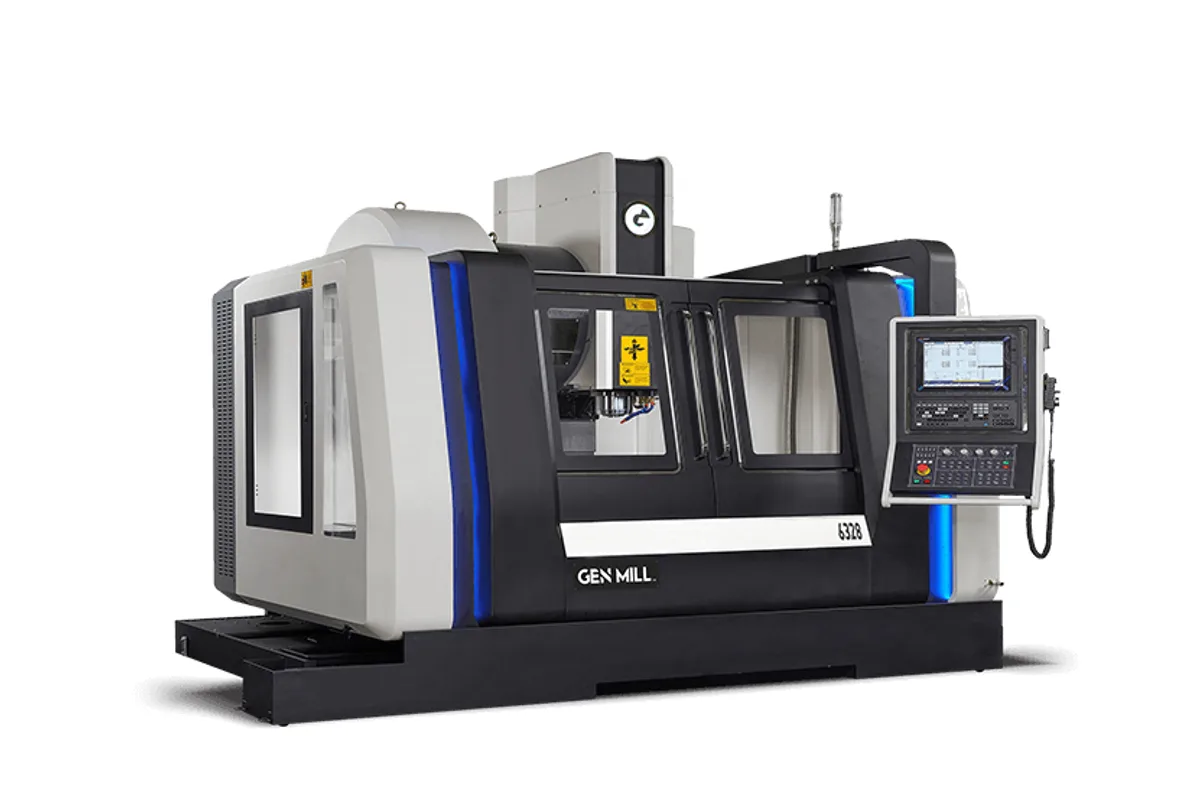

Image: expandmachinery.com, Ganesh

Key Specifications

Max Spindle

12,000 rpm (15,000 and 20,000 rpm optional), inline direct drive

Spindle Taper

CAT 40 (CAT 50, BT 40 / 50 optional)

Tool Capacity

40+1, twin-arm tool changer

Table Size

68.9 x 27.56 in (1,750 x 700 mm)

Accuracy

±0.0002 in / 12 in (±0.005 mm over 300 mm travel), JIS6338

Repeatability

±0.0001 in / 12 in (±0.003 mm over 300 mm travel), JIS6338

How much does the Ganesh GEN MILL 6328 cost?

Price estimate

Uncertain

We do not have a price for the Ganesh GEN MILL 6328 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The GEN MILL 6328 is the long-bed vertical machining center in the range: 63 in (1,600 mm) of X travel over a 68.9 x 27.56 in (1,750 x 700 mm) table, with Y and Z both 27.56 in (700 mm). At 26,455 lb (12,000 kg) it weighs considerably more than the GEN MILL 4024 at 15,708 lb (7,120 kg), and it is built to carry long plates, bars and multi-station fixtures.

Guideway support is described in the travel table itself. The X axis rides on 6 cross-roller trucks and the Y axis on 4 cross-roller ways with 8 trucks, which spreads the load of a long table. X and Y ballscrews are 50 mm in diameter, Z is 40 mm, and the axis drives produce 4,408 lb (2,000 kg) of maximum thrust and 2,204 lb (1,000 kg) of constant thrust.

Rapids are 944 ipm (24 m/min) in all three axes, slower than the 1,417 ipm (36 m/min) of the GEN MILL 4024 in X and Y, which is the usual consequence of moving this much mass. The spindle is a 12,000 rpm inline direct-drive unit giving 90 ft-lb at 1,500 rpm. CAT 40 is standard. CAT 50 and BT 40 or 50 tapers are listed as options, as are 15,000 and 20,000 rpm spindles, so the machine can be ordered toward either heavy cutting or high speed.

A 40+1 twin-arm changer handles tools in 2.8 sec on average. Through-the-tool coolant at 300 psi draws from a 148 gallon (560 liter) tank, and 4th and 5th axis wiring is included. Spindle nose to table distance runs from 5.9 to 31.5 in (150 - 800 mm). The supply is 38 kVA at 220 VAC.

Full Specifications

Parameter	Value
X Axis Travel	63 in (1,600 mm)
Y Axis Travel	27.56 in (700 mm)
Z Axis Travel	27.56 in (700 mm)
Distance Spindle Nose to Table	5.9 - 31.5 in (150 - 800 mm)
Throat	28.74 in (730 mm) spindle center to Z-axis covers
Table Size	68.9 x 27.56 in (1,750 x 700 mm)
T-Slots	5 T-slots, 0.709 in (18 mm) wide on 100 mm centers
Way System	X axis on 6 cross-roller trucks; Y axis on 4 cross-roller ways with 8 trucks
Max Spindle Speed	12,000 rpm (15,000 and 20,000 rpm optional), inline direct drive
Spindle Torque	90 ft-lb at 1,500 rpm
Spindle Taper	CAT 40 (CAT 50, BT 40 / 50 optional)
Positioning Accuracy	±0.0002 in / 12 in (±0.005 mm over 300 mm travel), JIS6338
Repeatability	±0.0001 in / 12 in (±0.003 mm over 300 mm travel), JIS6338
Rapid Traverse Xyz	944 ipm (24 m/min) X, Y, Z
Cutting Feed Rate	0.04 - 393 ipm
Ballscrews	X, Y 50 mm, 10 mm pitch; Z 40 mm
Axis Thrust	4,408 lb (2,000 kg) maximum; 2,204 lb (1,000 kg) constant
Tool Capacity	40+1, twin-arm tool changer
Tool Change Time	2.8 sec tool-to-tool (average)
Max Tool Diameter (full magazine)	5.90 in (150 mm); 3.15 in (80 mm) with adjacent tools
Max Tool Length	11.81 in (300 mm)
Max Tool Weight	15 lb (7 kg)
Air Requirement	85 psi at 14 scfm
Coolant Tank Capacity	148 gallons (560 liters)
Power Requirement	38 kVA, 220 VAC ±5%, 60 Hz
Machine Weight	26,455 lb (12,000 kg)

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

63 in (1,600 mm) of X travel with a 68.9 x 27.56 in (1,750 x 700 mm) table
X axis on 6 cross-roller trucks and Y axis on 8, with 50 mm ballscrews
Spindle options include CAT 50 taper and 15,000 or 20,000 rpm
40+1 tool changer and 148 gallon (560 liter) coolant tank
Axis thrust of 4,408 lb (2,000 kg) maximum

Limitations

Rapids are 944 ipm (24 m/min), slower than the 1,417 ipm (36 m/min) X and Y rapids of the GEN MILL 4024
Tool change averages 2.8 sec
The standard CAT 40 changer limits tools to 15 lb (7 kg)
At 26,455 lb (12,000 kg) it needs a suitable foundation and rigging plan

Best For

Long parts such as rails, plates and extrusions up to 63 in (1,600 mm) Multi-vise or multi-fixture production setups Mold and die plates needing 27.56 in (700 mm) of Y Vertical milling with a CAT 50 spindle option

Frequently Asked Questions

01 How big is the work envelope of the GEN MILL 6328?

X travel is 63 in (1,600 mm) and Y and Z are 27.56 in (700 mm) each. The table measures 68.9 x 27.56 in (1,750 x 700 mm) with 5 T-slots of 0.709 in (18 mm) on 100 mm centers. Spindle nose to table distance is 5.9 - 31.5 in (150 - 800 mm).

02 What spindle options are there?

Standard is a 12,000 rpm inline direct-drive CAT 40 spindle with 90 ft-lb at 1,500 rpm. Expand Machinery lists 15,000 and 20,000 rpm spindles as options, and CAT 50, BT 40 and BT 50 tapers as optional tool types. Confirm which tool changer and tool limits apply if you order a 50-taper spindle.

03 How is the long table supported?

The travel table states that the X axis uses 6 cross-roller trucks and the Y axis 4 cross-roller ways with 8 trucks. Ballscrews are 50 mm with a 10 mm pitch on X and Y and 40 mm on Z. Maximum thrust is 4,408 lb (2,000 kg) and constant thrust 2,204 lb (1,000 kg).

04 How does it differ from the GEN MILL 4024?

The GEN MILL 6328 has 63 in (1,600 mm) of X, 27.56 in (700 mm) of Y and 40+1 tools. The GEN MILL 4024 has 40.55 in (1,030 mm) of X, 23.62 in (600 mm) of Y and 30+1 tools, but it is quicker, with 1,417 ipm (36 m/min) X and Y rapids and a 2.2 sec tool change. On the GEN MILL 6328 those figures are 944 ipm (24 m/min) and 2.8 sec.

05 What services does it need?

The connected load is 38 kVA at 220 VAC ±5%, 60 Hz. Air is 85 psi at 14 scfm. Coolant capacity is 148 gallons (560 liters), and the machine weighs 26,455 lb (12,000 kg).
