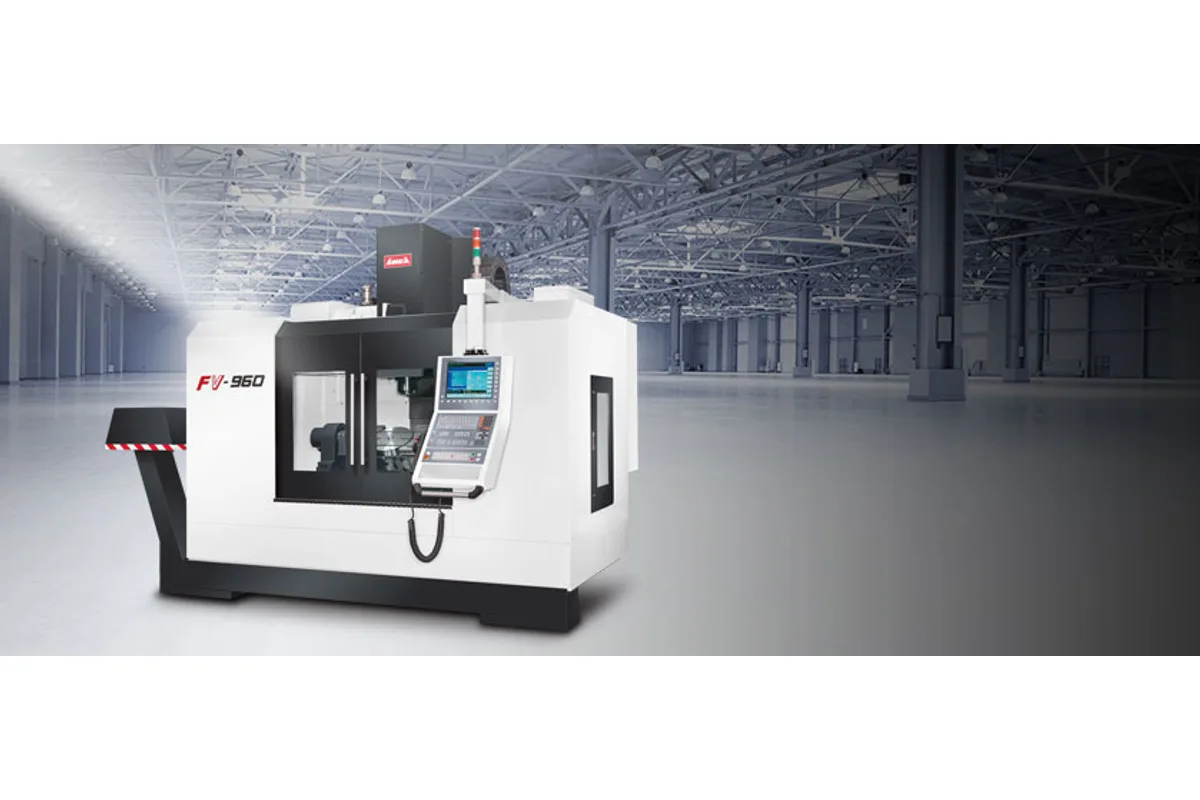

AWEA FV-960
Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the AWEA FV-960 cost?
Price estimate
We do not have a price for the AWEA FV-960 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AWEA FV-960 combines a long X axis with a tilting rotary table. X travel is 960 mm (37.8 in), Y is 600 mm (23.6 in) and Z is 480 mm (18.9 in), and the table is listed as 560 x 365 mm (22.0 x 14.4 in) with a Ø350 mm platter. That layout leaves room beside the trunnion, so the machine can be used for 5-axis parts on the rotary table and for 3-axis work with a vise on the same setup.
The A-axis tilts through -42˚ ~ +120˚ and the C-axis through 360˚. Table load at 0° is given as 200 kg. An asymmetric tilt range like this favours undercut access on one side and gives the trunnion a stiffer support on the other; buyers whose parts need equal tilt both ways should compare the FV-560, whose range is 100° ~ -100°.
Power is where this model differs most from its smaller sibling. AWEA lists the spindle motor at 10 / 14 kW (13.4 / 18.8 hp) (11 / 15 kW opt.), on a direct drive BBT40 spindle with 12,000 rpm or optionally 15,000 rpm. The supply requirement is 45 kVA. Magazine capacity is 24 T (30 T / 40 T opt.).
Feeds match across the FV pair: 32 m/min (1,260 ipm) rapids in X and Y, 24 m/min (945 ipm) in Z, and cutting feed of 1~15 m/min (39~591 ipm). Listed accuracy is 0.006 mm positioning and 0.005 mm repeatability. The machine weighs 7,400 kg (16,314 lb) and measures 3,100 x 2,185 x 3,235 mm (122.0 x 86.0 x 127.4 in).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 960 mm (37.8 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 480 mm (18.9 in) |
| Table Size | 560 x 365 mm (22.0 x 14.4 in) (Ø350 mm) |
| Max Table Load | 0° : 200 kg |
| A Axis Range | -42˚ ~ +120˚ |
| C Axis Range | 360˚ |
| Distance Spindle Center to Column | 800 mm (31.5 in) |
| Distance Spindle Nose to Table Center | 100 ~ 580 mm (3.9 ~ 22.8 in) |
| Spindle Taper | BBT40 |
| Spindle Motor Power | 10 / 14 kW (13.4 / 18.8 hp) (11 / 15 kW opt.) |
| Max Spindle Speed | 12,000 rpm (15,000 rpm opt.) |
| Rapid Traverse Xy | 32 m/min (1,260 ipm) |
| Rapid Traverse Z | 24 m/min (945 ipm) |
| Cutting Feed Rate | 1~15 m/min (39~591 ipm) |
| Tool Capacity | 24 T (30 T / 40 T opt.) |
| Max Tool Diameter (full magazine) | Ø75 / Ø125 mm (Ø3.0 / Ø4.9 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Positioning Accuracy | 0.006 mm |
| Repeatability | 0.005 mm |
| CNC Control | HEIDENHAIN TNC640 (FANUC Oi -MF Plus / SIEMENS 840D Opt.) |
| Power Requirement | 45 kVA |
| Air Pressure Requirement | 6 kg/cm² |
| Machine Weight | 7,400 kg (16,314 lb) |
| Machine Dimensions | 3,100 x 2,185 x 3,235 mm (122.0 x 86.0 x 127.4 in) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 960 mm (37.8 in) of X travel on a 5-axis machine with an A / C table
- Table load of 200 kg at 0° on a 560 x 365 mm (22.0 x 14.4 in) table
- Spindle motor of 10 / 14 kW (13.4 / 18.8 hp) (11 / 15 kW opt.)
- Magazine of 24 T (30 T / 40 T opt.)
- HEIDENHAIN TNC640 control, with FANUC Oi -MF Plus or SIEMENS 840D as options
Limitations
- A-axis range of -42˚ ~ +120˚ is not symmetrical
- Z travel of 480 mm (18.9 in) limits tall parts on the tilted table
- Requires 45 kVA, well above the 25 kVA of the FV-560
- AWEA's structure page gives a different table size for this model than its specification table
Best For
Frequently Asked Questions
01
X is 960 mm (37.8 in), Y is 600 mm (23.6 in) and Z is 480 mm (18.9 in). The A-axis swivels -42˚ ~ +120˚ and the C-axis rotates 360˚. The distance from spindle nose to table center is 100 ~ 580 mm (3.9 ~ 22.8 in).
02
The specification table lists 560 x 365 mm (22.0 x 14.4 in) with a Ø350 mm platter and a load capacity of 200 kg at 0°. A second table on AWEA's structure page prints a slightly different rectangular size for this model, so confirm the dimensions with the maker before designing fixtures.
03
A direct drive BBT40 spindle at 12,000 rpm, with 15,000 rpm optional. The motor is rated 10 / 14 kW (13.4 / 18.8 hp), and an 11 / 15 kW motor is listed as an option. AWEA describes a floating hydraulic tool release that keeps unclamping pressure off the spindle bearings.
04
24 as standard, with 30 T and 40 T magazines optional. Tools can be 250 mm (9.8 in) long and 7 kg (15 lb), with a diameter of Ø75 mm or Ø125 mm when adjacent pockets are empty. The arm type changer uses random tool call.
