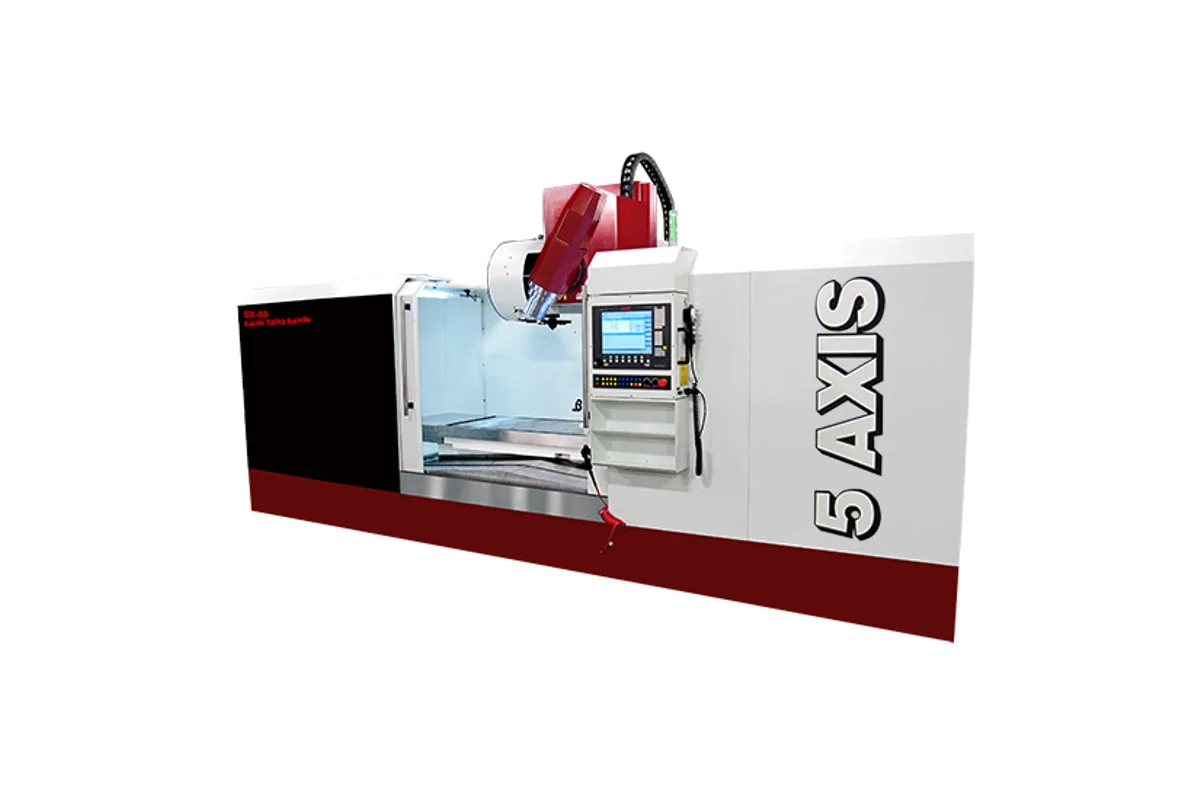

Fryer SX-80
Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Fryer SX-80 cost?
Price estimate
We do not have a price for the Fryer SX-80 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fryer SX-80 is the large model of the SX tilting-head 5-axis series, with 80 x 35 x 34 in (2,032 x 889 x 864 mm) of travel. Two things grow besides the stroke: the table load reaches 10,000 lb (4,536 kg), and the built-in rotary table is 30 in (762 mm) where the SX-60 lists 24 in (610 mm). Fryer's series text names the 30” flush mounted table specifically for the SX-80.
A 10,000 lb table under a tilting head is an unusual combination and defines the work. Large dies, turbine and pump casings, structural fittings and heavy fixtures loaded with several parts can be set on the 30 x 93 in (762 x 2,362 mm) machine table and machined on five sides without a trunnion that would have to lift them. The door opens 81 in (2,057 mm) for loading.
Long parts are the other use. With a table mounted rotary axis and a tailstock, or simply with the head tilted, features at an angle to the length of a rail or beam can be cut along 80 in (2,032 mm) of X. Spindle nose to table is 36 to 2 in (914 - 51 mm), and the spindle centre stands 36 in (914 mm) from the column.
The head and spindle are unchanged from the SX-45 and SX-60: +/- 110° of B travel, 40 hp (29.8 kW) peak, 100 - 18,000 rpm, 85 ft-lb (115 Nm) at 850 rpm, 40 tools. Operating dimensions are 211 x 122 x 114 in (5,359 x 3,099 x 2,896 mm), and the weight is 25,000 lb (11,340 kg).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 80 in (2,032 mm) |
| Y Axis Travel | 35 in (889 mm) |
| Z Axis Travel | 34 in (864 mm) |
| B Axis Range | +/- 110° |
| C Axis Range | +/- 360° |
| Max Table Load | 10,000 lb (4,536 kg) |
| Table Size | 30 x 93 in (762 x 2,362 mm) |
| Rotary Table Size | 30 in (762 mm) |
| Way Type | Roller Type Linear |
| T-Slots | 5 / 0.709 in (18 mm) |
| Table Top to Floor | 35 in (889 mm) |
| Spindle Motor Power | 40 hp (29.8 kW) peak |
| Max Spindle Speed | 100 - 18,000 rpm |
| Spindle Torque | 85 ft-lb (115 Nm) at 850 rpm |
| Spindle Taper | Big Plus CAT-40 (BT-40, HSK-63A) |
| Spindle Nose to Center of Rotation | 11 in (279 mm) |
| Distance Spindle Nose to Table | 36 - 2 in (914 - 51 mm) |
| Spindle Center to Column | 36 in (914 mm) |
| Tool Capacity | 40-station arm type |
| Tool Change Time | 3 seconds |
| Max Tool Diameter (full magazine) | 3.2 in (81 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5.9 in (150 mm) |
| Max Tool Weight | 15 lb (6.8 kg) |
| Max Tool Length | 13 in (330 mm) |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Positioning Accuracy B C | 15 seconds of arc (5 seconds of arc) |
| Repeatability B C | 5 seconds of arc (2 seconds of arc) |
| Rapid Traverse Xyz | 1,200 ipm (30.5 m/min) X, Y; 1,000 ipm (25.4 m/min) Z |
| Rotary Rapid Traverse | B axis 33 rpm; C axis 22 rpm |
| Cutting Feed Rate | 0.001 - 900 ipm (up to 22.9 m/min) |
| Servo Type | AC Digital Brushless |
| Axis Thrust | 4,955 lb (2,248 kgf) X, Y; 6,193 lb (2,809 kgf) Z |
| Air Requirement | 90 psi (6.2 bar), 5 cfm (142 L/min) |
| Coolant Capacity | 100 gal (379 L) |
| Coolant Flow | 9 gpm (34 L/min) |
| Door Opening Width | 81 in (2,057 mm) |
| Power Requirement | 80 A, 430-500 VAC, 3 phase (220 VAC optional) |
| Machine Dimensions | 211 x 122 x 114 in (5,359 x 3,099 x 2,896 mm) |
| Machine Weight | 25,000 lb (11,340 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,000 lb (4,536 kg) table load under a 5-axis tilting head
- 30 in (762 mm) built-in rotary table size, the largest in the SX series
- 80 in (2,032 mm) of X and 35 in (889 mm) of Y travel
- 81 in (2,057 mm) door opening
- Rapids of 1,200 ipm (30.5 m/min) in X and Y despite the size
Limitations
- Z travel of 34 in (864 mm) is slightly less than the 35 in (889 mm) of the SX-60
- Spindle power and torque are the same as on the SX-45
- Operating footprint of 211 x 122 in (5,359 x 3,099 mm)
- Dual chip auger or conveyor for this length is an option
Best For
Frequently Asked Questions
01
Fryer's series text says the machine is available with a flush mounted 30” rotary table on the SX-80 or a table mounted 12” rotary table, and the specification table lists a built-in rotary table size of 30 in (762 mm). The buyer selects the type and size of rotary table.
02
10,000 lb (4,536 kg), evenly distributed, on a machine table of 30 x 93 in (762 x 2,362 mm) with 5 T-slots. The SX-60 is rated 7,500 lb (3,402 kg) and the SX-45 5,500 lb (2,495 kg).
03
Operating dimensions are 211 x 122 x 114 in (5,359 x 3,099 x 2,896 mm) and the machine weighs 25,000 lb (11,340 kg). The table top is 35 in (889 mm) above the floor. Power is 80 A at 430-500 VAC, 3 phase, with 220 VAC optional.
04
Full 5 axis contouring with either the Siemens SINUMERIK ONE CNC or the Fanuc 31i B5 CNC, with conversational or G code programming. An adaptive feed option is listed that Fryer says lowers cycle times by up to 40%.
