AWEA FV-560

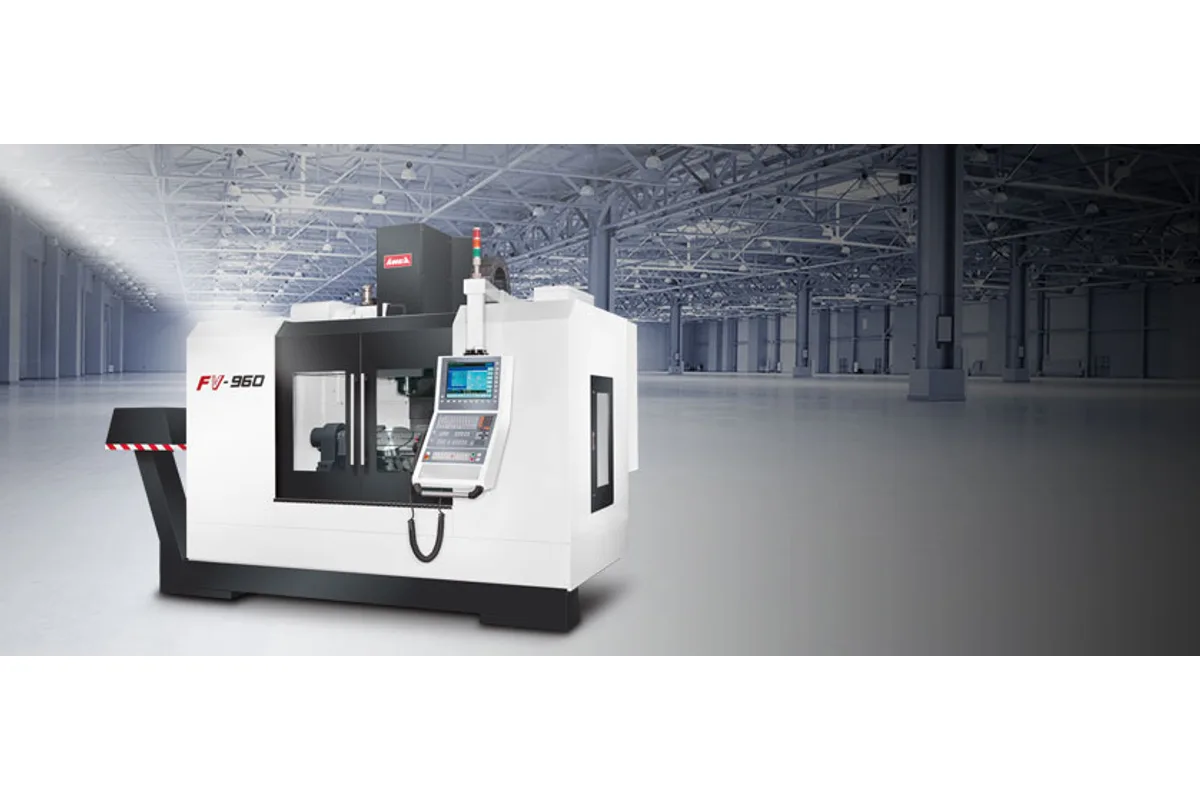

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Accuracy
Repeatability
How much does the AWEA FV-560 cost?
Price estimate
We do not have a price for the AWEA FV-560 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AWEA FV-560 is a compact 5-axis vertical machining center with an A / C rotary table of Ø220 mm (Ø8.7 in). Linear travels are 560 mm (22.0 in) in X, 510 mm (20.1 in) in Y and 460 mm (18.1 in) in Z. The A-axis swivels 100° ~ -100° and the C-axis turns a full 360˚.
Part size is set by the table, not the travels. A Ø220 mm platter with a listed load of 75 kg at 0° is made for small, intricate components: impellers, medical implants, tool holders, small aerospace fittings. A symmetrical tilt range in both directions lets the spindle approach a part from either side without re-clamping, which the FV-960 with its -42˚ ~ +120˚ range does not allow to the same degree.
The spindle is a direct drive BBT40 unit at 12,000 rpm, with 15,000 rpm as an option. AWEA's table prints the motor rating for this model without a unit, so it is left out here; ask the maker for the kW figures. Rapids are 32 m/min (1,260 ipm) in X and Y and 24 m/min (945 ipm) in Z. Positioning accuracy is 0.006 mm and repeatability 0.005 mm under ISO230-2, and a closed-loop linear scale is optional.
The standard control is the HEIDENHAIN TNC640, with FANUC Oi -MF Plus and SIEMENS 840D as options. AWEA says the table supports both 5 axes synchronous machining and 4+1 positioning. The machine weighs 4,500 kg (9,921 lb), needs 25 kVA and stands 2,200 x 2,415 x 3,050 mm (86.6 x 95.1 x 120.1 in).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 560 mm (22.0 in) |
| Y Axis Travel | 510 mm (20.1 in) |
| Z Axis Travel | 460 mm (18.1 in) |
| Table Size | Ø220 mm (Ø8.7 in) |
| Max Table Load | 0° : 75 kg |
| A Axis Range | 100° ~ -100° |
| C Axis Range | 360˚ |
| Distance Spindle Center to Column | 600 mm (23.6 in) |
| Distance Spindle Nose to Table Center | 100 ~ 560 mm (3.9 ~ 22.0 in) |
| Spindle Taper | BBT40 |
| Max Spindle Speed | 12,000 rpm (15,000 rpm opt.) |
| Rapid Traverse Xy | 32 m/min (1,260 ipm) |
| Rapid Traverse Z | 24 m/min (945 ipm) |
| Cutting Feed Rate | 1~15 m/min (39~591 ipm) |
| Tool Capacity | 24 T |
| Max Tool Diameter (full magazine) | Ø75 / Ø125 mm (Ø3.0 / Ø4.9 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Positioning Accuracy | 0.006 mm |
| Repeatability | 0.005 mm |
| CNC Control | HEIDENHAIN TNC640 (FANUC Oi -MF Plus / SIEMENS 840D Opt.) |
| Power Requirement | 25 kVA |
| Air Pressure Requirement | 6 kg/cm² |
| Machine Weight | 4,500 kg (9,921 lb) |
| Machine Dimensions | 2,200 x 2,415 x 3,050 mm (86.6 x 95.1 x 120.1 in) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- A-axis swivel of 100° ~ -100° with a 360˚ C-axis
- Direct drive BBT40 spindle at 12,000 rpm, 15,000 rpm optional
- HEIDENHAIN TNC640 standard, FANUC Oi -MF Plus or SIEMENS 840D optional
- ISO230-2 positioning accuracy of 0.006 mm and repeatability of 0.005 mm
- Small installation: 4,500 kg (9,921 lb) and 25 kVA
Limitations
- Table is only Ø220 mm (Ø8.7 in) with a 75 kg load at 0°
- The maker's table gives the spindle motor rating for this model without a unit
- 24-tool magazine, with tools limited to 7 kg (15 lb)
- Linear scales are optional, not standard
Best For
Frequently Asked Questions
01
The A-axis swiveling range is 100° ~ -100° and the C-axis rotary range is 360˚. AWEA describes the A / C rotary table as suited to 5 axes synchronous machining or 4+1 axes 5 faces machining.
02
The rotary table is Ø220 mm (Ø8.7 in) and the listed table load capacity at 0° is 75 kg. Travels are 560 mm (22.0 in) in X, 510 mm (20.1 in) in Y and 460 mm (18.1 in) in Z, with 100 ~ 560 mm (3.9 ~ 22.0 in) from spindle nose to table center.
03
The table lists the HEIDENHAIN TNC640 as standard, with FANUC Oi -MF Plus and SIEMENS 840D as options. AWEA states that the spindle is driven by a HEIDENHAIN spindle motor with 12,000 rpm and 15,000 rpm versions.
04
The FV-960 is the larger machine: 960 mm (37.8 in) of X travel, a 560 x 365 mm (22.0 x 14.4 in) table with a Ø350 mm platter, 200 kg at 0° and a weight of 7,400 kg (16,314 lb). Its A-axis range is -42˚ ~ +120˚. The FV-560 has the smaller Ø220 mm (Ø8.7 in) table and weighs 4,500 kg (9,921 lb).
