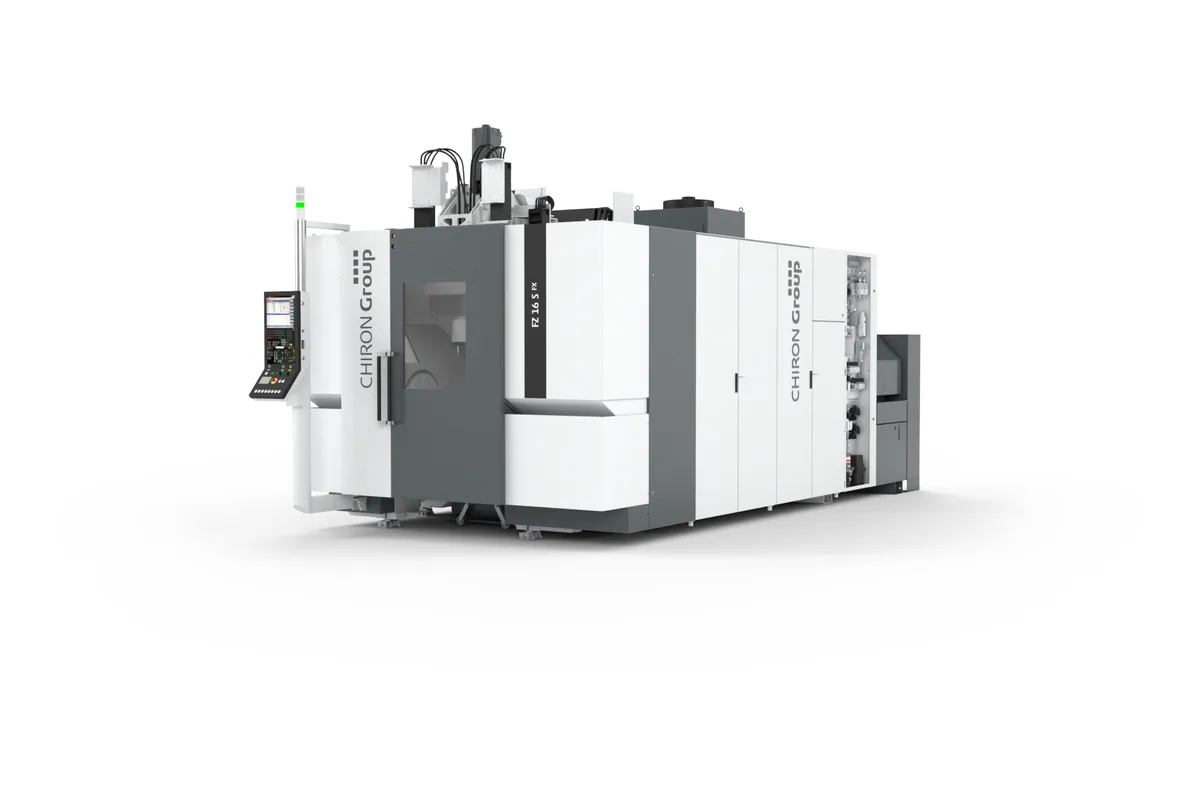

Chiron FZ 16S

$400,000 - $575,000 Updated 2026-03-11

Key Specifications

X Travel

550 mm (21.7 in)

Y Travel

400 mm (15.7 in)

Z Travel

425 mm (16.7 in)

Max Spindle

20,000 RPM standard (up to 40,000 RPM optional)

Spindle Taper

HSK-A63 standard (HSK-A100 optional)

Tool Capacity

48 standard (up to 162 optional)

Overview

The Chiron FZ 16S is a high-dynamic 5-axis machining center built for production environments where speed, precision, and compact footprint are non-negotiable. With X/Y/Z travels of 550 x 400 x 425 mm (21.7 x 15.7 x 16.7 in) and a 2-axis tilt-rotary table with direct drives, the FZ 16S delivers 5-axis simultaneous machining with the speed characteristics that have made Chiron a standard in aerospace structural component production.

The machine features a rigid gantry design with a mineral-cast machine bed for vibration damping and thermal stability. Linear direct drives on X, Y, and Z axes eliminate backlash and provide acceleration rates that exceed ball-screw machines. Spindle options include the standard HSK-A63 at 20,000 RPM and high-speed options up to 40,000 RPM, as well as an HSK-A100 variant with 400 Nm of torque for heavy steel and titanium cutting. The A and C rotary axes use direct drives for maximum dynamics with workpiece capacity up to 700 mm diameter and 360 kg.

The compact 3.1 m2 floor footprint makes the FZ 16S one of the most space-efficient production 5-axis machines available. Tool management supports up to 162 tools with a pick-up style changer that loads and unloads during machining time. Water-cooled drives on all axes and the milling spindle provide thermal stability across long production shifts. The machine runs on Siemens SINUMERIK 840D sl control. Competitors include the Grob G350, DMG Mori DMU 65, and Heller HF 3500. New FZ 16S machines price between $400,000 and $575,000. Used units from 2017-2022 trade between $200,000 and $375,000.

Full Specifications

Parameter	Value
X-Axis Travel	550 mm (21.7 in)
Y-Axis Travel	400 mm (15.7 in)
Z-Axis Travel	425 mm (16.7 in)
Max Spindle Speed	20,000 RPM standard (up to 40,000 RPM optional)
Spindle Taper	HSK-A63 standard (HSK-A100 optional)
Spindle Torque	Up to 400 Nm (295 ft-lb) with HSK-A100 option
A Axis Range	Direct drive tilt axis
C Axis Range	360° continuous direct drive
Max Workpiece Diameter	700 mm (27.6 in)
Max Workpiece Weight	360 kg (794 lb)
Table Diameter	280 mm (11.0 in) rotary table
Tool Capacity	48 standard (up to 162 optional)
Axis Drives	Linear direct drives on X, Y, Z; direct drives on A, C
Machine Bed	Mineral cast
Machine Weight	8,700 kg (19,180 lb)
Machine Footprint	3.1 m² floor area
CNC Control	Siemens SINUMERIK 840D sl
Thermal Management	Water-cooled drives on all axes and spindle
English	Greek
Chiron	Î§ÎµÎ¯ÏÏÎ½ (translit. CheÃrÅn)
Phonetic	IPA
Kahy Ron	/ËkaÉª rÉn/
Father	Mother
Cronus	Philyra
Brothers	Sisters
Hadeszeusposeidon	HeraDemeterHestia
Daughters	Son
Endeishippoocyrhoe	Carystus

Specifications sourced from chiron-group.com — verified 2026-03-28
