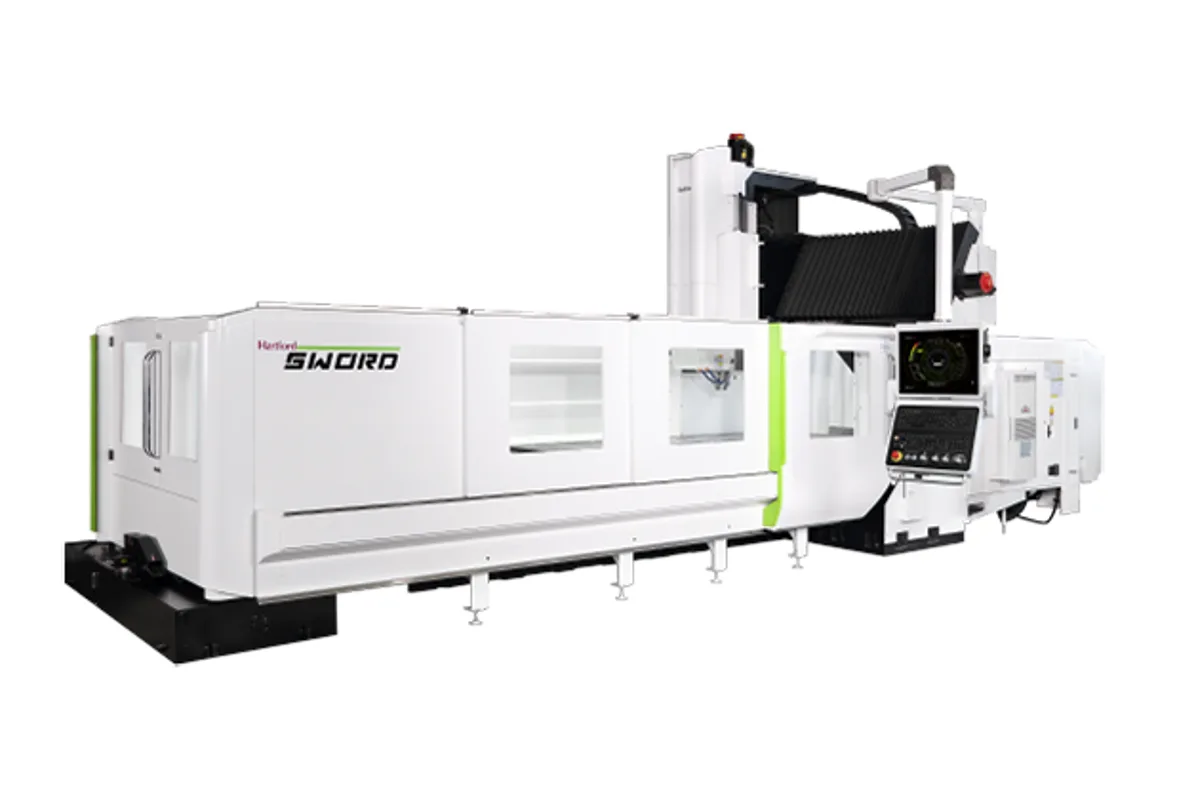

Hartford SW-435
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
t slots
How much does the Hartford SW-435 cost?
Price estimate
We do not have a price for the Hartford SW-435 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford SW-435 has the widest gantry of the SW box-guideway double-column machining centers. Y travel is 3,500 mm (137.8 in) over a 4,000 x 3,000 mm (157.5 x 118.1 in) table, with 4,000 mm (157.5 in) of X travel and a table load of 16,000 kg (35,273 lb).
Its table rows differ from the neighbouring models in ways that show a heavier build. The base rides on 4 box guideways, where a narrower table needs fewer, and both the X and Y ballscrews are supported. The gear spindle is listed as a single 6,000 rpm version. The motor row is a single pair too, 18.5 / 22 kW (Cont. / 30 min), with no options printed.
A DDS spindle at 10,000 / 12,000 rpm is listed as the alternative to the gear head. Z travel is 780 mm, or 1,070 mm as the option.
Three metres between the columns admits parts that otherwise go to a gantry machine with a floor plate: large welded frames, turbine housings split on the centreline, wide press bolsters. The table still moves under the bridge, so the part's weight is on the X ways, and the 16,000 kg limit is the figure to check first. Tool changers are an S type, listed as S: 20, or an arm type with 32 tools, or 40.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 4,000 x 3,000 mm (157.5 x 118.1 in) |
| Max Table Load | 16,000 kg (35,273 lb) |
| T-Slots | 28 x 250 (16) mm |
| X Axis Travel | 4,000 mm (157.5 in) |
| Y Axis Travel | 3,500 mm (137.8 in) |
| Z Axis Travel | 780 opt. 1,070 mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 rpm |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Tool Capacity | S: 20 A: 32(40) pcs |
| Tool Shank | BT-50(BBT-50 /CAT-50 /DIN69871A) |
| Spindle Motor Power | 18.5 / 22 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,500 mm (137.8 in) of Y travel, the widest in the SW line
- Table of 4,000 x 3,000 mm (157.5 x 118.1 in) for 16,000 kg (35,273 lb)
- 4 box guideways on the base
- Supported X and Y ballscrews
- DDS spindle at 10,000 / 12,000 rpm available beside the 6,000 rpm gear head
Limitations
- Only one motor rating is printed, 18.5 / 22 kW, without the options listed for the SW-426 (up to 30/37 kW)
- Gear head listed at 6,000 rpm only, with no lower range
- Z travel of 780 mm, or 1,070 mm, is small against a three-metre table width
- Arm-type magazine of 32 tools, or 40
Best For
Frequently Asked Questions
01
Y travel is 3,500 mm (137.8 in) and the table is 4,000 x 3,000 mm (157.5 x 118.1 in). X travel is 4,000 mm (157.5 in).
02
16,000 kg (35,273 lb) as an average load. Hartford notes 4 box guideways on the base for stability on this model, and T-slots are listed as 28 x 250 (16) mm.
03
A #50 gear spindle at 6,000 rpm and a #50 DDS spindle at 10,000 / 12,000 rpm. The spindle drive motor is given as 18.5 / 22 kW (Cont. / 30 min), with no optional ratings on this page.
04
The SW-426 has a 4,000 x 2,500 mm (157.5 x 98.4 in) table, 2,600 mm (102.4 in) of Y travel and a 13,500 kg (29,762 lb) load, with motor options up to 30/37 kW. The SW-435 is wider and carries more.
