Litz SV-1000

Q: How much does the Litz SV-1000 cost?

The price estimate for the Litz SV-1000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-sv-1000#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

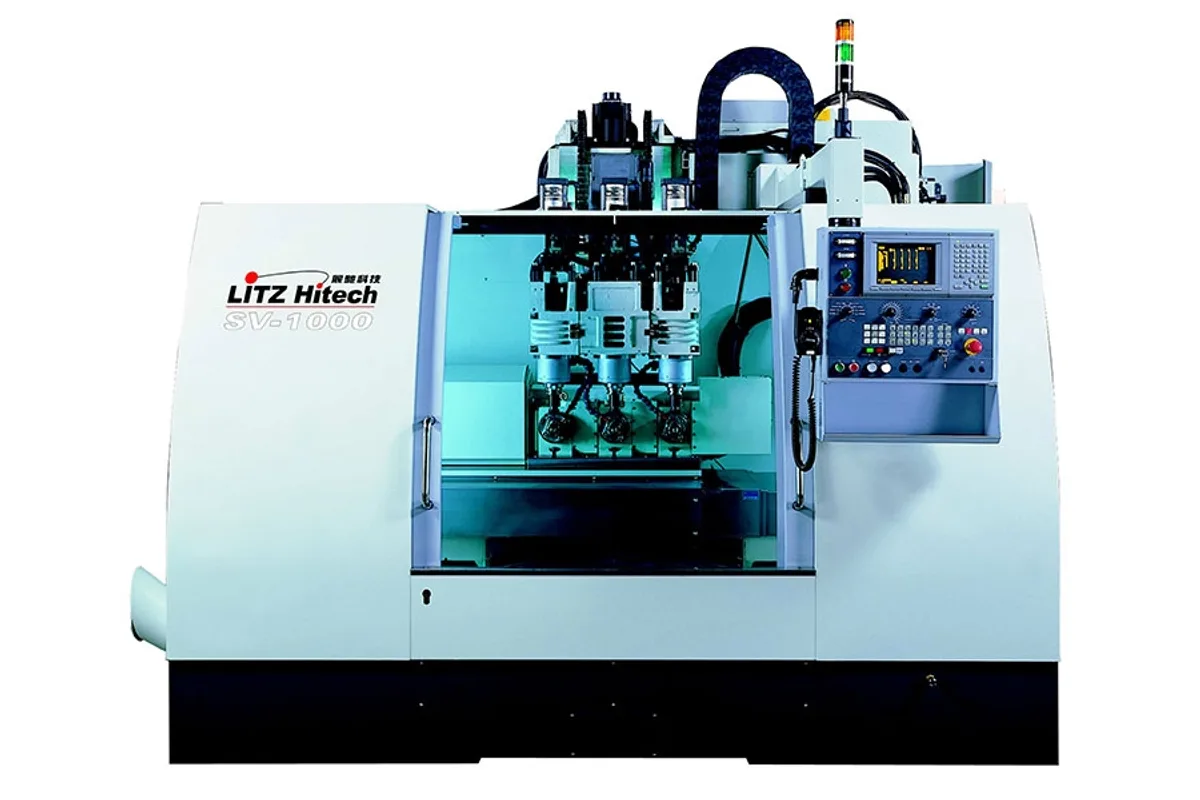

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

6,000 rpm

Tool Capacity

Table Size

1,200 x 560 mm (47.2 x 22.0 in)

Spindle Power

7.5 / 11 kW (10 / 15 HP) (continuous / 30 min rated)

x axis travel

1,020 mm (40.2 in)

y axis travel

600 mm (23.6 in)

How much does the Litz SV-1000 cost?

Price estimate

Uncertain

We do not have a price for the Litz SV-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz SV-1000 is a multi-spindle vertical machining center, listed by Litz under 3-Spindles Machine and named Three-Vertical Machining Center. It works over a 1,200 x 560 mm (47.2 x 22.0 in) table with travels of 1,020 mm (40.2 in) in X, 600 mm (23.6 in) in Y and 635 mm (25.0 in) in Z.

The idea is to cut identical parts side by side in one program. Each cycle then produces several workpieces for one set of axis moves, which suits long runs of small, repetitive parts where a single-spindle machine would be limited by its own cycle time.

Several figures follow from that purpose. Tools are small: at most 60 mm (2.4 in) in diameter, 160 mm (6.3 in) long and 4 kg (9 lb). The tool capacity is given as 6, with the changing method described as 2 sets for inter-changing by arm. Spindle speed is 6,000 rpm on BT-40 tooling with a 7.5 / 11 kW (10 / 15 HP) motor, continuous and 30 min rated. Rigid tapping is standard.

Axis speeds are moderate, 18 / 18 / 18 m/min (709 / 709 / 709 ipm), and cutting feed runs to 8,000 mm/min. The table takes 1,000 kg (2,205 lb), enough for a multi-station fixture. The control is the Mitsubishi M70, with FANUC listed as an option. Machine weight is 7,000 kg (15,432 lb) and supply 25 kVA.

Full Specifications

Parameter	Value
X Axis Travel	1,020 mm (40.2 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	635 mm (25.0 in)
Distance Spindle Nose to Table	95 to 730 mm (3.7 to 28.7 in)
Max Spindle Speed	6,000 rpm
Tool Capacity	6
Max Tool Diameter (full magazine)	60 mm (2.4 in)
Max Tool Length	160 mm (6.3 in)
Max Tool Weight	4 kg (9 lb)
Tool Change Method	2 Sets For Inter-Changing (Arm)
Tool Shank	BT-40
Spindle Motor Power	7.5 / 11 kW (10 / 15 HP) (continuous / 30 min rated)
Axis Motors Xyz	2 / 2 / 3.5 kW
Table Size	1,200 x 560 mm (47.2 x 22.0 in)
Max Table Load	1,000 kg (2,205 lb)
T-Slots	5 x 18 mm x 100 mm (number x width x distance from the center)
Cutting Feed Rate	1-8,000 mm/min (up to 315 ipm)
CNC Control	Mitsubishi M70
Machine Weight	7,000 kg (15,432 lb)
Power Requirement	25 kVA
Coolant Tank Capacity	290 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	18 / 18 / 18 m/min (709 / 709 / 709 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Multi-spindle layout for machining identical parts in one cycle
1,200 x 560 mm (47.2 x 22.0 in) table rated for 1,000 kg (2,205 lb)
Rigid tapping, automatic tool changer and a hood for the top of the machine are standard
635 mm (25.0 in) of Z travel with 95 to 730 mm (3.7 to 28.7 in) under the spindle nose

Limitations

Tool capacity of 6 limits the number of operations per setup
Tools no larger than 60 mm (2.4 in) in diameter, 160 mm (6.3 in) long and 4 kg (9 lb)
Spindle speed of 6,000 rpm limits small-tool cutting speed
Rapids of 18 / 18 / 18 m/min (709 / 709 / 709 ipm)

Best For

Long production runs of small identical parts Drilling, tapping and light milling on multi-station fixtures Shops trading flexibility for output per cycle

Frequently Asked Questions

01 What is the Litz SV-1000?

It is a vertical machining center that Litz lists under 3-Spindles Machine and names a Three-Vertical Machining Center. Travels are 1,020 x 600 x 635 mm (40.2 x 23.6 x 25.0 in) over a 1,200 x 560 mm table.

02 How many tools does the SV-1000 have?

The table gives a tool count of 6 and describes the changing method as 2 sets for inter-changing with an arm. Tools are limited to 60 mm (2.4 in) in diameter, 160 mm (6.3 in) in length and 4 kg (9 lb).

03 What spindle speed and power does the SV-1000 offer?

Spindle speed is 6,000 rpm with BT-40 tooling. The spindle motor is rated 7.5 / 11 kW (10 / 15 HP), continuous and 30 min. A spindle dust-proof air-sealing system and rigid tapping are standard.

04 What options are listed for the SV-1000?

A chip conveyor, a rotating table as fourth axis, linear scales on the three axes, coolant through the ballscrews, a tool length measurement system and FANUC or Mitsubishi controls appear in the option list.
