Anger Machining TMV 1350A

Q: How much does the Anger Machining TMV 1350A cost?

The price estimate for the Anger Machining TMV 1350A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/anger-tmv-1350a#price; the request is passed to Anger Machining or an authorised dealer.

Specs verified 2026-10-05 · anger-machining.com Updated 2026-10-05

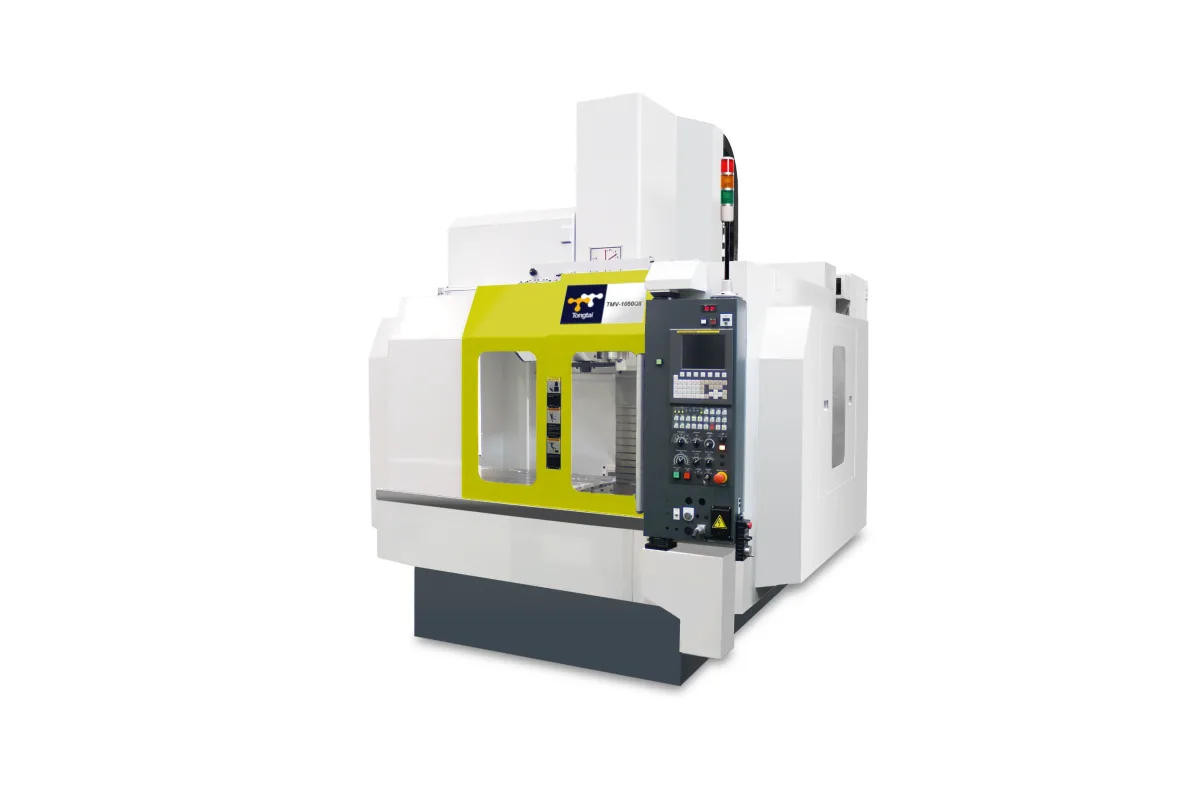

Anger Machining TMV series vertical machining center

Image: anger-machining.com, Anger Machining

Key Specifications

Max Spindle

3,500 (6,000) rpm

Spindle Taper

BBT50 (HSK100)

Tool Capacity

24(32) pcs.

Table Size

1,500x750 mm (59.1x29.5 in)

Spindle Power

11/15 kW (14.8/20.1 hp), S1/S6-60%

number of axes

3 (4,5)

How much does the Anger Machining TMV 1350A cost?

Price estimate

Uncertain

We do not have a price for the Anger Machining TMV 1350A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Low speed and high torque set the Anger Machining TMV 1350A apart from the smaller TMV models. Its BBT50 spindle is listed at 3,500 rpm, with 6,000 rpm in brackets, and delivers 70-280/95-382 Nm (S1/S6-60%) from 11/15 kW.

Those are figures for big cutters in steel and cast iron, which is what Anger means when it says the BT-50 spindles are for heavy-duty machining. The work area matches: 1,350 mm (53.1 in) in X, 750 mm (29.5 in) in Y and 700 mm (27.6 in) in Z, a 1,500x750 mm table and 1,300 kg (2,866 lb) of table load on a machine that weighs 13,000 kg (28,660 lb).

Nothing about it is quick. Rapids are 20/20/15 m/min, acceleration is 2.1/2/2 m/s², and chip-to-chip time is 8.4 s. On long roughing cuts none of that matters; on parts with many small features it does, and the TMV 1050QII with 48/48/48 m/min would be the better tool if the part fits its 1,100x600 mm table.

The magazine holds 24 tools, or 32 in the bracketed version, each up to 15 kg and 300 mm long. Tool diameter is listed as 110 mm, with 200 mm in brackets. HSK100 is shown as an alternative interface. Siemens and Fanuc controls are offered and a 4th or 5th axis is optional.

Full Specifications

Parameter	Value
Number of Axes	3 (4,5)
X Axis Travel	1,350 mm (53.1 in)
Y Axis Travel	750 mm (29.5 in)
Z Axis Travel	700 mm (27.6 in)
Max Part Size	1,500/750/700 mm (59.1/29.5/27.6 in)
Axis Acceleration Xyz	2.1/2/2 m/s²
Rapid Traverse Xyz	20/20/15 m/min (787/787/591 ipm)
Max Spindle Speed	3,500 (6,000) rpm
Spindle Motor Power	11/15 kW (14.8/20.1 hp), S1/S6-60%
Spindle Torque	70-280/95-382 Nm (S1/S6-60%)
Spindle Taper	BBT50 (HSK100)
Tool Capacity	24(32) pcs.
Max Tool Diameter (full magazine)	110 (200) mm
Tool Length	300 mm (11.8 in)
Tool Weight	15 kg (33 lb)
Chip to Chip Time	8.4 s (at 1,800 rpm)
Table Size	1,500x750 mm (59.1x29.5 in)
T-Slot Width	18 (5pcs.) mm
Max Table Load	1,300 kg (2,866 lb)
Machine Weight	13,000 kg (28,660 lb)
Machine Dimensions	3,700/3,640/3,250 mm (145.7/143.3/128.0 in)
Operating Voltage	3x380 (3x220 at Fanuc) V
Power Requirement	30 kVA
CNC Control	Siemens, Fanuc
Lubrication	CL, MQL

Specifications sourced from anger-machining.com — verified 2026-10-05

Strengths & Limitations

Strengths

Spindle torque of 70-280/95-382 Nm (S1/S6-60%) on a BBT50 interface
Table load of 1,300 kg on a 1,500x750 mm table
Y travel of 750 mm and Z travel of 700 mm
Tools up to 15 kg, with an HSK100 interface as the alternative
13,000 kg cast-iron machine with a wide base

Limitations

Spindle speed is 3,500 rpm, or 6,000 rpm in the bracketed version
Rapids of 20/20/15 m/min and 2.1/2/2 m/s² acceleration
Chip-to-chip time of 8.4 s slows work with many tools
Spindle power is 11/15 kW, so the torque is available only at low speed

Best For

Heavy milling of steel and cast-iron components Large fixtures and machine parts up to 1,300 kg Boring and face milling with large BBT50 tools Parts up to 1,500/750/700 mm

Frequently Asked Questions

01 What spindle does the TMV 1350A have?

A BBT50 spindle, with HSK100 in brackets as an alternative. Speed is listed as 3,500 rpm with 6,000 rpm in brackets, power as 11/15 kW and torque as 70-280/95-382 Nm, the last two as S1/S6-60% ratings. The spindle block is headed SPINDLES (FANUC).

02 How heavy can the workpiece be?

The maximum table load is 1,300 kg (2,866 lb). The table is 1,500x750 mm with five T-slots 18 mm wide, and the maximum part size is 1,500/750/700 mm.

03 Why are the rapids lower than on the TMV QII models?

The table simply lists lower figures for the larger machines: 20/20/15 m/min and 2.1/2/2 m/s² here, against 48/48/48 m/min on the TMV 850QII and TMV 1050QII. The TMV 1350A weighs 13,000 kg and is specified for heavy cuts, not for fast positioning.

04 How does it differ from the TMV 1600A?

The TMV 1600A is the next size: 1,600 mm of X, 800 mm of Y, a 1,700x850 mm table and 2,000 kg of table load. It has 32 tools as standard and Anger offers an additional high-torque spindle for it. The TMV 1350A is the faster of the two, 20/20/15 m/min against 15/15/12 m/min on the TMV 1600A.

05 What tool sizes fit the magazine?

Tools up to 300 mm long and 15 kg. The diameter row reads 110 (200) mm. Capacity is 24 tools, with 32 tools as the bracketed option, and chip-to-chip time is 8.4 s at 1,800 rpm.
