Anger Machining TMV 850QII

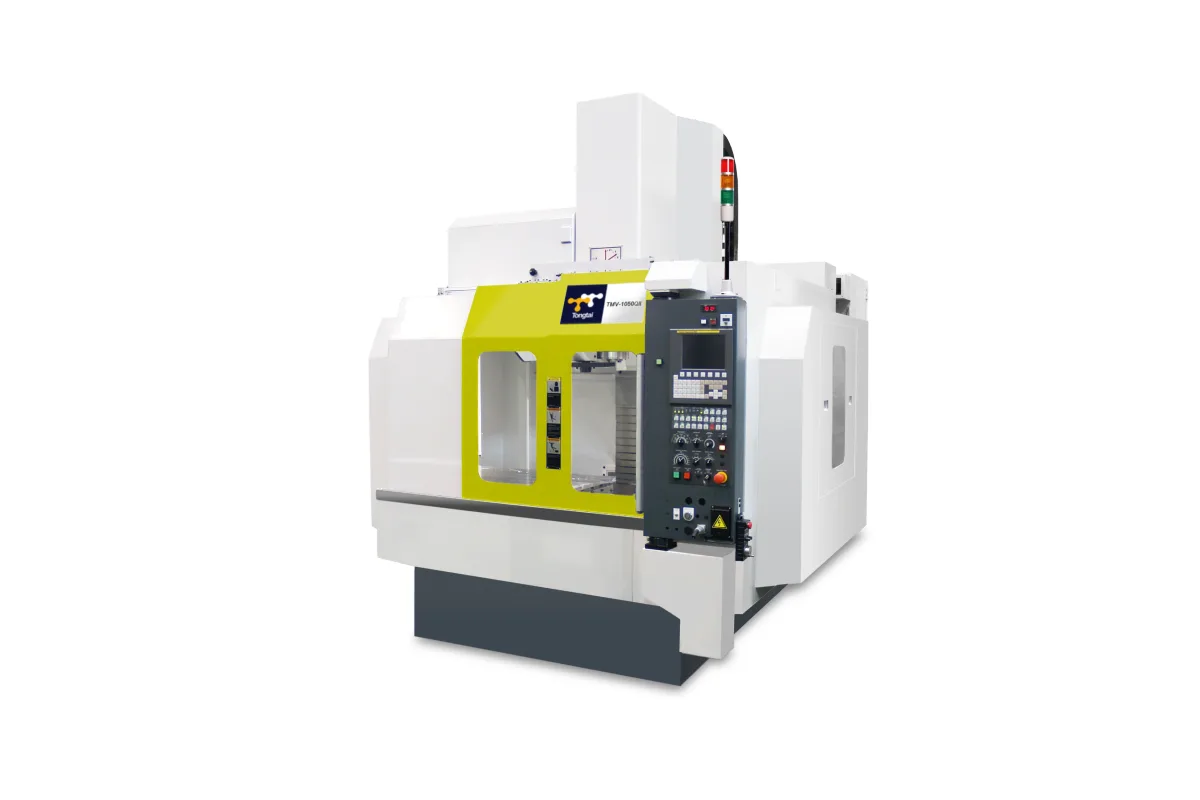

Image: anger-machining.com, Anger Machining
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
number of axes
x axis travel
How much does the Anger Machining TMV 850QII cost?
Price estimate
We do not have a price for the Anger Machining TMV 850QII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Anger Machining TMV 850QII is the smallest TMV vertical machining center: 850 mm (33.5 in) of X travel, 600 mm (23.6 in) of Y and 530 mm (20.9 in) of Z, with a 950x600 mm table rated for 800 kg (1,764 lb).
Y travel equals the 600 mm depth of the table, so a plate that fills the table can be machined edge to edge. Maximum part height is generous as well: the part size row reads 950/600/630 mm.
Anger's table gives the spindle as ranges, because several Fanuc spindles are offered: 7.5-11/12-18.5 kW and 17.9-95.5/35.8-153 Nm, both as S1/S6-60% ratings. The spindle is directly coupled to the motor, and oil-air cooling is optional. The datasheet's speed row is not legible as printed, so ask Anger for the speed of each spindle.
Rapids of 48/48/48 m/min and a 4.3 s chip-to-chip time make the QII models the quick end of the TMV series; the TMV 1350A, with its BBT50 spindle, lists 20/20/15 m/min. The changer holds 24 BBT40 tools up to 125 mm in diameter, 320 mm long and 7 kg. A 4th or 5th axis is optional, and the cast-iron frame weighs in at 5,500 kg (12,125 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Number of Axes | 3 (4,5) |
| X Axis Travel | 850 mm (33.5 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 530 mm (20.9 in) |
| Max Part Size | 950/600/630 mm (37.4/23.6/24.8 in) |
| Axis Acceleration Xyz | 5.6-9.1/5-7.1/5 m/s² |
| Rapid Traverse Xyz | 48/48/48 m/min (1,890/1,890/1,890 ipm) |
| Spindle Motor Power | 7.5-11/12-18.5 kW (S1/S6-60%) |
| Spindle Torque | 17.9-95.5/35.8-153 Nm (S1/S6-60%) |
| Spindle Taper | BBT40 |
| Tool Capacity | 24 pcs. |
| Max Tool Diameter (full magazine) | 125 mm (4.9 in) |
| Tool Length | 320 mm (12.6 in) |
| Tool Weight | 7 kg (15 lb) |
| Chip to Chip Time | 4.3 s (at 1,800 rpm) |
| Table Size | 950x600 mm (37.4x23.6 in) |
| T-Slot Width | 18 (5pcs.) mm |
| Max Table Load | 800 kg (1,764 lb) |
| Machine Weight | 5,500 kg (12,125 lb) |
| Machine Dimensions | 2,200/3,000/2,810 mm (86.6/118.1/110.6 in) |
| Operating Voltage | 3x380 (3x220 at Fanuc) V |
| Power Requirement | 30 kVA |
| CNC Control | Siemens, Fanuc |
| Lubrication | CL, MQL |
Specifications sourced from anger-machining.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Y travel of 600 mm on a 950x600 mm table
- Table load of 800 kg (1,764 lb) in a 5,500 kg machine
- Rapids of 48/48/48 m/min on X/Y/Z
- Spindle torque up to 95.5/153 Nm (S1/S6-60%) depending on the spindle chosen
- Optional 4th or 5th axis for multi-side work
- Direct-coupled spindle with optional oil-air cooling
Limitations
- Magazine holds 24 tools with no larger option listed
- X travel of 850 mm; longer parts need the TMV 1050QII
- Chip-to-chip time of 4.3 s is unremarkable for tapping-heavy work
- BBT40 only; BBT50 starts with the TMV 1350A
Best For
Frequently Asked Questions
01
Travels are 850 mm (33.5 in) in X, 600 mm (23.6 in) in Y and 530 mm (20.9 in) in Z. The table is 950x600 mm with five 18 mm T-slots and takes 800 kg (1,764 lb). Maximum part size is given as 950/600/630 mm.
02
The table lists ranges: 7.5-11/12-18.5 kW and 17.9-95.5/35.8-153 Nm, each as S1/S6-60%. The block is headed SPINDLES (FANUC), and Anger states that different spindle options are available. Ask which spindle a quotation includes, since the lowest and highest torque figures are far apart.
03
Only length. The TMV 1050QII has 1,050 mm of X travel and a 1,100x600 mm table, and is 2,500 mm long and 5,900 kg in weight. This model has 850 mm of X, a 950x600 mm table, 2,200 mm of length and 5,500 kg. Y, Z, spindle data, magazine, rapids and the 800 kg table load are the same.
04
24 BBT40 tools. A tool may be up to 125 mm in diameter, 320 mm long and 7 kg. Chip-to-chip time is 4.3 s at 1,800 rpm, and Anger describes the changer mechanism as inverter-controlled and low-maintenance.
05
The operating voltage row reads 3x380 V, with 3x220 V noted for the Fanuc version. Total connected power is 30 kVA. Siemens and Fanuc are the two controls listed, and lubrication is given as CL, MQL.
