Anger Machining Vertical Machining Centers (VMC)

Anger Machining TMV 1600A

Q: How much does the Anger Machining TMV 1600A cost?

The price estimate for the Anger Machining TMV 1600A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/anger-tmv-1600a#price; the request is passed to Anger Machining or an authorised dealer.

Specs verified 2026-10-05 · anger-machining.com Updated 2026-10-05

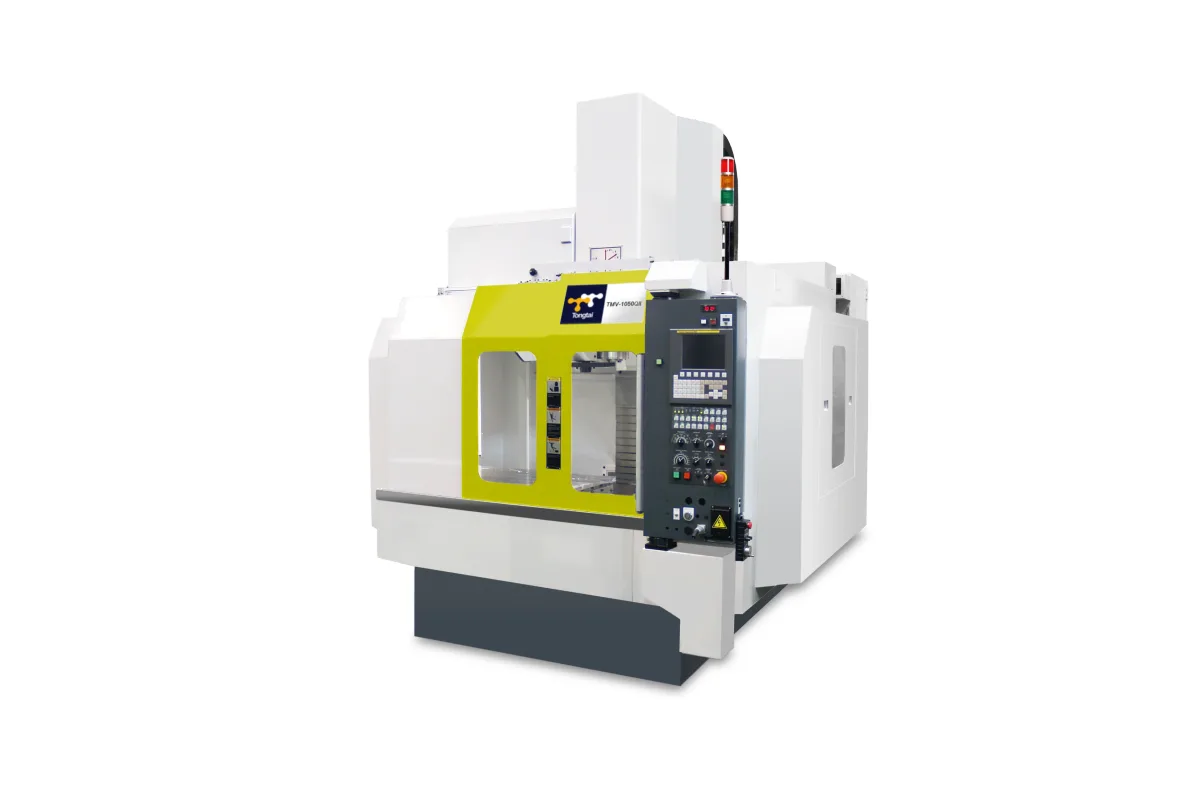

Anger Machining TMV series vertical machining center

Image: anger-machining.com, Anger Machining

Key Specifications

Max Spindle

3,500 (6,000) rpm

Spindle Taper

BBT50 (HSK100)

Tool Capacity

32(40) pcs.

Table Size

1,700x850 mm (66.9x33.5 in)

Spindle Power

11/15 kW (14.8/20.1 hp), S1/S6-60%

number of axes

3 (4,5)

How much does the Anger Machining TMV 1600A cost?

Price estimate

Uncertain

We do not have a price for the Anger Machining TMV 1600A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The largest TMV, the Anger Machining TMV 1600A carries 2,000 kg (4,409 lb) on a 1,700x850 mm table and travels 1,600 mm (63.0 in) in X, 800 mm (31.5 in) in Y and 700 mm (27.6 in) in Z.

It is also the only model in the series with a footnote of its own: an additional spindle with very high torque, 536/731 Nm, is available for this machine. The standard line in the table is already a heavy-cutting spindle, BBT50 at 3,500 rpm with 70-280/95-382 Nm and 11/15 kW (S1/S6-60%), and 6,000 rpm in brackets.

Weight and stiffness are bought with speed. The machine weighs 15,000 kg (33,069 lb), rapids are 15/15/12 m/min, acceleration is 1.6/1.8/1.7 m/s² and chip-to-chip time is 9.7 s, the slowest figures in the TMV table. Cycle times on this machine are set by metal removal, so it belongs with large steel and cast components where cuts are long.

The magazine starts at 32 tools, with 40 as the bracketed version, and each tool can weigh 15 kg. The table has six T-slots 18 mm wide. Connected power is 40 kVA, the highest of the series, and both Siemens and Fanuc controls are listed, with 3x220 V noted for Fanuc. Compared with the TMV 1350A, the gain is 2,000 kg of table load against 1,300 kg and a longer, deeper table.

Full Specifications

Parameter	Value
Number of Axes	3 (4,5)
X Axis Travel	1,600 mm (63.0 in)
Y Axis Travel	800 mm (31.5 in)
Z Axis Travel	700 mm (27.6 in)
Max Part Size	1,700/850/700 mm (66.9/33.5/27.6 in)
Axis Acceleration Xyz	1.6/1.8/1.7 m/s²
Rapid Traverse Xyz	15/15/12 m/min (591/591/472 ipm)
Max Spindle Speed	3,500 (6,000) rpm
Spindle Motor Power	11/15 kW (14.8/20.1 hp), S1/S6-60%
Spindle Torque	70-280/95-382 Nm (S1/S6-60%)
Spindle Taper	BBT50 (HSK100)
Tool Capacity	32(40) pcs.
Max Tool Diameter (full magazine)	110 (200) mm
Tool Length	300 mm (11.8 in)
Tool Weight	15 kg (33 lb)
Chip to Chip Time	9.7 s (at 1,800 rpm)
Table Size	1,700x850 mm (66.9x33.5 in)
T-Slot Width	18 (6pcs.) mm
Max Table Load	2,000 kg (4,409 lb)
Machine Weight	15,000 kg (33,069 lb)
Machine Dimensions	4,250/3,440/3,290 mm (167.3/135.4/129.5 in)
Operating Voltage	3x380 (3x220 at Fanuc) V
Power Requirement	40 kVA
CNC Control	Siemens, Fanuc
Lubrication	CL, MQL

Specifications sourced from anger-machining.com — verified 2026-10-05

Strengths & Limitations

Strengths

Table load of 2,000 kg (4,409 lb), the highest in the TMV series
Additional very-high-torque spindle with 536/731 Nm available for this model
Travels of 1,600 mm, 800 mm and 700 mm with a 1,700x850 mm table
Standard magazine of 32 tools, 40 in the bracketed version
Machine weight of 15,000 kg on a cast-iron frame

Limitations

Rapids of 15/15/12 m/min are the lowest in the series
Chip-to-chip time of 9.7 s at 1,800 rpm
Standard spindle speed is 3,500 rpm, which rules out small-tool finishing at proper surface speed
Needs 40 kVA of connected power and 4,250/3,440/3,290 mm (L/W/H) of space

Best For

Large steel and cast-iron parts up to 1,700/850/700 mm Workpieces and fixtures up to 2,000 kg Heavy roughing with BBT50 or HSK100 tooling Machine bases, frames and large fixture bodies

Frequently Asked Questions

01 What is the high-torque spindle option on the TMV 1600A?

A footnote to the spindle table states that an additional spindle with very high torque, 536/731 Nm, is available for this model. The datasheet gives no speed or power for it. The standard spindle line reads 3,500 rpm, 11/15 kW and 70-280/95-382 Nm.

02 How large and heavy a part can it take?

Up to 1,700/850/700 mm and 2,000 kg (4,409 lb) on a 1,700x850 mm table with six 18 mm T-slots. Travels are 1,600 mm in X, 800 mm in Y and 700 mm in Z.

03 How fast is the TMV 1600A?

It is the slowest of the series by the table: 15/15/12 m/min maximum speed, 1.6/1.8/1.7 m/s² acceleration and 9.7 s chip to chip. The TMV 1350A lists 20/20/15 m/min and 8.4 s.

04 Which tool interface does it use?

BBT50, with HSK100 shown in brackets. The magazine holds 32 tools or 40 tools, and a tool may be 300 mm long and 15 kg. The diameter row reads 110 (200) mm.

05 What supply does it need?

The operating voltage is 3x380 V, or 3x220 V with a Fanuc control, and the total connected power is 40 kVA. The machine weighs 15,000 kg (33,069 lb), so check floor loading as well as crane capacity for installation.
