Anderson FUV-400

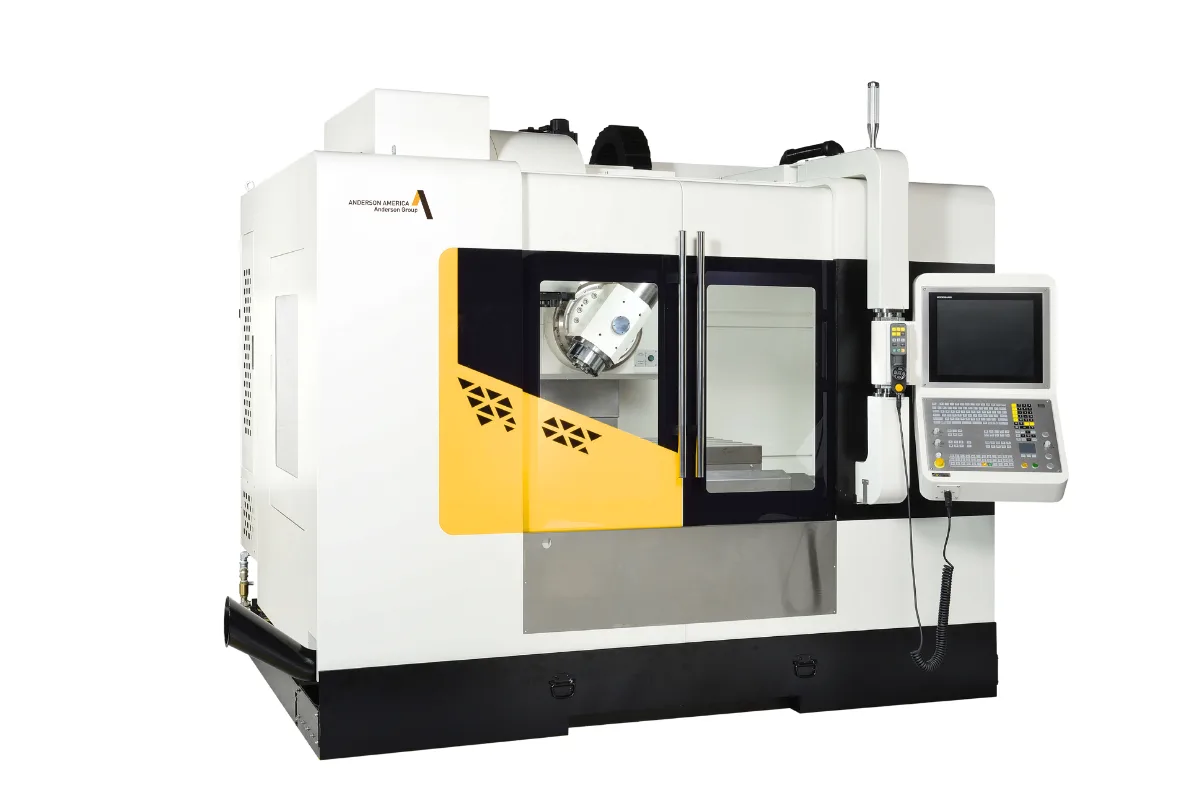

Image: andersonvmc.com, Anderson
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Anderson FUV-400 cost?
Price estimate
We do not have a price for the Anderson FUV-400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Anderson FUV-400 is the mid-size machine of the FUV 5-axis series and the first on the larger frame. Its trunnion carries a Ø400 mm (Ø15.7 in) rotary table rated for 200 kg (441 lb), and travels are 460 mm (18.1 in) in X, 500 mm (19.7 in) in Y and 500 mm (19.7 in) in Z.
Several things change at this size besides the table. The spindle motor steps up to 7.5/11 kW. The base spindle speed drops to 10,000 rpm, with 12,000 and 15,000 listed as alternatives. Linear rapids fall to 30/30/24 m/min, from the 36/36/36 m/min of the FUV-250. Machine weight rises to 6,600 kg (14,550 lb) and the coolant tank to 350 L. Read together, these rows describe a machine tuned more for general 5-sided machining of mid-size parts than for high-speed work on miniature ones.
Both rotary axes are listed at 25 rpm with direct drive and 0.001° resolution. The A axis tilts from +30° to -120°, and C rotates through a continuous 360°. That is a typical trunnion range, and Anderson quotes it together with the table diameter as the headline of this model.
A Ø400 mm table and 200 kg cover a wide band of job-shop work: pump housings, valve bodies, mould inserts, structural brackets. The distance from spindle nose to table is 15 ~ 515 mm (0.6 ~ 20.3 in), so tall fixtures remain possible. The tool magazine holds 24 tools as standard, with 30 and 36 listed, and tools may be 250 mm (9.8 in) long and 7 kg (15 lb). The control is FANUC 0i-MF.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | Ø400 mm (Ø15.7 in) |
| X Axis Travel | 460 mm (18.1 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| A Axis Range | +30° to -120° |
| C Axis Range | 360° Continuous |
| A Axis Speed | 25 rpm |
| C Axis Speed | 25 rpm |
| Rotary Axis Resolution | 0.001° |
| Rotary Axis Drive | Direct Drive |
| Spindle Taper | ISO 40 |
| Max Spindle Speed | 10,000 rpm (12,000, 15,000) |
| Spindle Motor Power | 7.5/11 kW |
| Spindle Transmission | Direct Drive |
| Distance Spindle Nose to Table | 15 ~ 515 mm (0.6 ~ 20.3 in) |
| Tool Capacity | 24 (30, 36) |
| Tool Selection Method | Random |
| Max Tool Diameter (full magazine) | Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | T-T: 1.55 sec; C-C: 5 sec |
| Max Tool Length | 250 mm (9.8 in) |
| Positioning Accuracy | ±0.008 mm |
| Repeatability | ±0.005 mm |
| Rapid Traverse Xyz | 30/30/24 m/min |
| Cutting Feed Rate | 12 m/min |
| Machine Dimensions | 2,880 x 3,200 x 3,045 mm (113.4 x 126.0 x 119.9 in) |
| Machine Weight | 6,600 kg (14,550 lb) |
| Coolant Tank Capacity | 350 L |
| Coolant Flow | 100 L/min |
| Air Pressure Required | 5-7 kg/cm² |
| CNC Control | FANUC 0i-MF |
| Max Table Load | 200 kg (441 lb) |
Specifications sourced from andersonvmc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø400 mm (Ø15.7 in) rotary table rated for 200 kg (441 lb)
- 7.5/11 kW spindle motor, up from 5.5/7.5 kW on the FUV-250
- A axis range of +30° to -120° with continuous 360° C rotation
- 500 mm (19.7 in) of travel in both Y and Z
- 350 L coolant tank and 1.55 sec tool-to-tool change
Limitations
- Base spindle speed is 10,000 rpm; 12,000 and 15,000 are listed as alternatives
- Linear rapids of 30/30/24 m/min are lower than on the FUV-250
- Rotary axes are listed at 25 rpm, a quarter of the FUV-170 A axis speed
- Tool weight is limited to 7 kg (15 lb)
Best For
Frequently Asked Questions
01
460 mm (18.1 in) in X, 500 mm (19.7 in) in Y and 500 mm (19.7 in) in Z. The spindle nose to table distance is 15 ~ 515 mm (0.6 ~ 20.3 in). The rotary table is Ø400 mm (Ø15.7 in) and carries up to 200 kg (441 lb).
02
The FUV-500 is larger in every direction: a Ø500 mm table for 300 kg (661 lb), travels of 600 mm (23.6 in), 700 mm (27.6 in) and 520 mm (20.5 in), and a weight of 8,700 kg (19,180 lb). The FUV-500 rotary axes are slower, at 16 rpm and 11 rpm. The FUV-400 weighs 6,600 kg (14,550 lb) and lists 25 rpm on both axes.
03
An ISO 40 direct-drive spindle. The speed row reads 10,000 rpm, with 12,000 and 15,000 rpm as the listed alternatives, and the motor is 7.5/11 kW. The table does not state torque, so ask for the torque curve of the speed version quoted.
04
Anderson lists positioning accuracy of ±0.008 mm and repeatability of ±0.005 mm for the linear axes, and a rotary resolution of 0.001°. The table does not give a positioning accuracy for the rotary axes themselves.
