Vision Wide Vertical Machining Centers (VMC)

Vision Wide MSE-2612

Q: How much does the Vision Wide MSE-2612 cost?

The price estimate for the Vision Wide MSE-2612 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-mse-2612#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

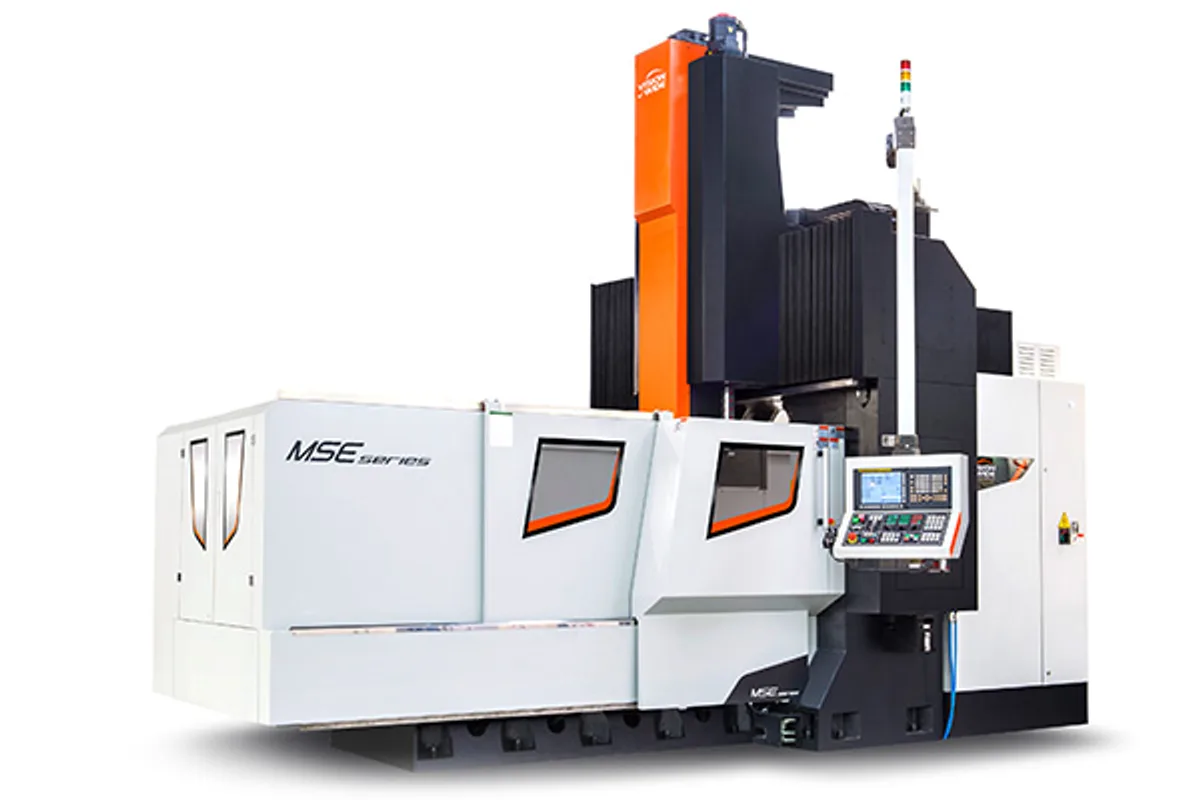

Image: visionwide-tech.com, Vision Wide

Key Specifications

Max Spindle

15,000 rpm

Table Size

2,800x1,100 mm (110.2x43.3 in)

x axis travel

2,600 mm (102.4 in)

y axis travel

1,200 mm (47.2 in)

z axis travel

800/1,000 mm (31.5/39.4 in) (Opt.)

max table load

12,000 kg (26,455 lb)

How much does the Vision Wide MSE-2612 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MSE-2612 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

For aluminum the Vision Wide MSE-2612 offers a long table, a fast spindle and a stated removal rate. X travel is 2,600 mm (102.4 in), the table 2,800x1,100 mm (110.2x43.3 in), spindle speed 15,000 rpm, and the maker's figure for aluminum alloy chips removal is 5,000 cc/ min.

Plate work in light alloy is where a milling machine without a magazine fits most naturally. Tooling plates, vacuum fixtures, mold frames in aluminum and long structural members are faced, pocketed and trimmed with two or three cutters. A removal rate like the one quoted fills a chip conveyor quickly, and the standard caterpillar type chip conveyor with water tank is sized into the base machine for that reason.

Higher speeds are options. The feature list says spindle speed reaches 24,000 rpm, and the option list has built-in spindles to 28,000 rpm on HSK-A63 for either control. With a built-in spindle the ring coolant device is excluded, so coolant goes through the spindle, at 20 / 70 bar, or as oil mist.

Y travel is 1,200 mm (47.2 in) and table load 12,000 kg (26,455 lb). Power on the standard spindle is 15/ 18.5 kW (20.1/ 24.8 hp). Cutting feed is 1-24,000 mm/min.

Full Specifications

Parameter	Value
X Axis Travel	2,600 mm (102.4 in)
Y Axis Travel	1,200 mm (47.2 in)
Z Axis Travel	800/1,000 mm (31.5/39.4 in) (Opt.)
Table Size	2,800x1,100 mm (110.2x43.3 in)
Max Table Load	12,000 kg (26,455 lb)
Spindle Power Cont 30 Min	15/ 18.5 kW (20.1/ 24.8 hp)
Max Spindle Speed	15,000 rpm
Cutting Feed Rate	1-24,000 mm/min
Rapid Traverse Xyz	24/30 m/min (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Aluminum alloy chips removal rate of 5,000 cc/ min stated by the maker
2,800x1,100 mm (110.2x43.3 in) table with 2,600 mm (102.4 in) of X
Caterpillar type chip conveyor with water tank is standard
Built-in spindle options to 28,000 rpm on HSK-A63

Limitations

Y travel of 1,200 mm (47.2 in)
Spindle ring coolant is excluded with built-in spindles
No magazine listed; tools are changed by hand

Best For

Aluminum tooling plates and vacuum fixtures Long structural members in light alloy High-volume chip removal with few tools

Frequently Asked Questions

01 How much aluminum can the Vision Wide MSE-2612 remove?

Vision Wide states an aluminum alloy chips removal rate of 5,000 cc/ min for the MSE series. The standard spindle runs 15,000 rpm with 15/ 18.5 kW (20.1/ 24.8 hp), and cutting feed is 1-24,000 mm/min.

02 What are the MSE-2612 travels?

X 2,600 mm (102.4 in), Y 1,200 mm (47.2 in), and Z 800/1,000 mm (31.5/39.4 in) (Opt.), the longer Z being an option.

03 What coolant options does the MSE-2612 have?

A cutting fluid cooling system is standard. Options: spindle ring cutting coolant device (built-in spindle excluded), coolant through spindle system 20 / 70 bar, a reserved interface for it, and an oil mist cooling device.

04 What load does the MSE-2612 table carry?

12,000 kg (26,455 lb) on a 2,800x1,100 mm (110.2x43.3 in) table. The shorter MSE-2112 carries 10,000 kg (22,046 lb).
