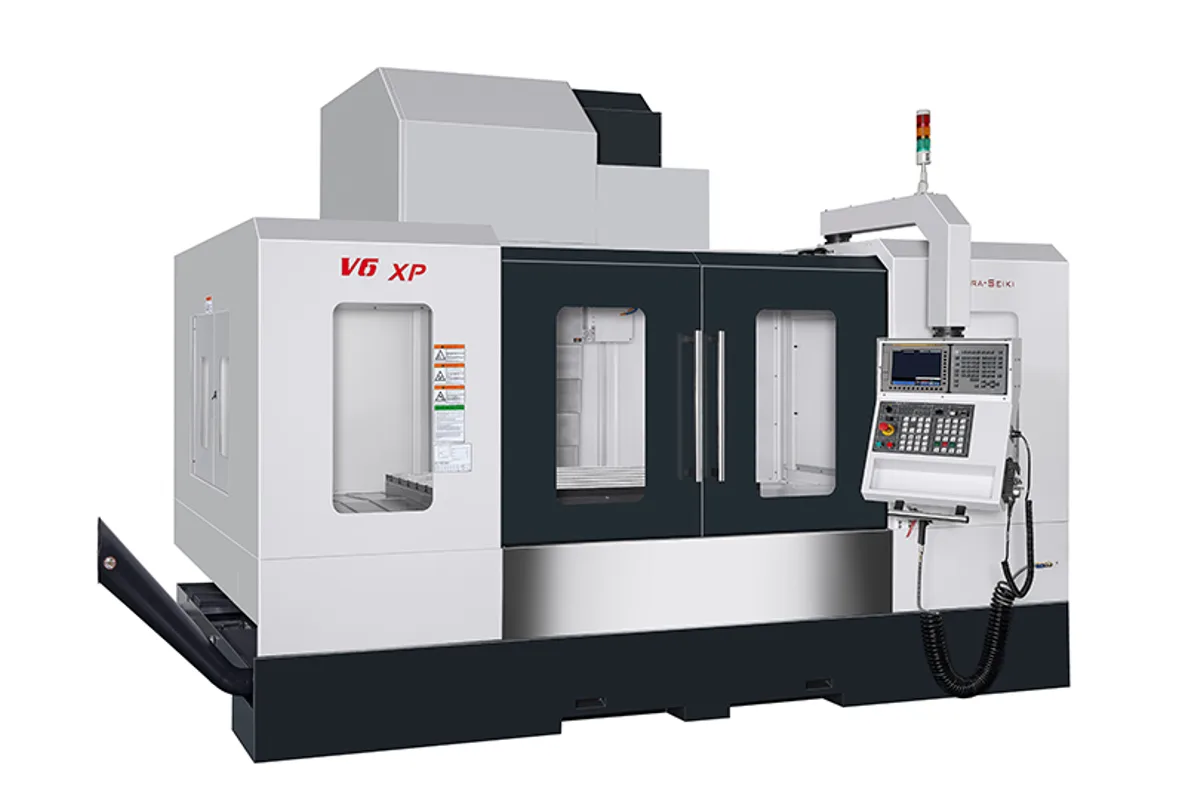

Akira Seiki V6XP
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki V6XP cost?
Price estimate
We do not have a price for the Akira Seiki V6XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the V6XP the Akira Seiki V series changes scale. X travel is 1,630 mm (64.2 in), Y is 850 mm (33.5 in) and Z is 815 mm (32 in); the table is 1,750 x 800 mm (69 x 31.5 in) and is rated for 2,300 kg (5,071 lb) as standard and 2,760 kg (6,085 lb) at most.
The spindle, though, stays in the 40-taper class. It is BT40 with 30 HP (22.4 kW) peak at 10,000 rpm in the V version or 35 HP (26.1 kW) at 12,000 rpm in the XP version, and an 8,000 rpm option. That combination, a big envelope with a fast light spindle, fits large aluminium plates, composite tooling and finish passes on big moulds. Shops that need to rough large steel parts should compare the HV6A, which has the same travels and a BT50 / CAT50 spindle at 42 HP (31.3 kW).
The listed accuracy loosens a little with size: positioning 0.015 mm (0.00059 in), repeatability ±0.005 mm (±0.00020 in). The spindle nose sits 100~915 mm (4~36 in) above the table, and the spindle centre is 865 mm (34 in) from the column cover.
A 28T magazine, 640 L (169 gal) of coolant and a 30 kVA supply complete the picture. T-slots are 18 mm wide at 125 mm pitch, six of them.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| X Axis Travel | 1,630 mm (64.2 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 815 mm (32 in) |
| Distance Spindle Nose to Table | 100~915 mm (4~36 in) |
| Spindle Center to Column Cover | 865 mm (34 in) |
| Table Size | 1,750 x 800 mm (69 x 31.5 in) |
| T-Slots | 18 mm x 125 mm pitch x 6 slots |
| Max Table Load | 2,760 kg (6,085 lb) |
| Standard Table Load | 2,300 kg (5,071 lb) |
| Spindle Motor Power | 30 HP (22.4 kW) (V); 35 HP (26.1 kW) (XP) |
| Max Spindle Speed | 10,000 rpm (V); 12,000 rpm (XP); 8,000 rpm (OPT) |
| Spindle Taper | BT40 |
| Positioning Accuracy | 0.015 mm (0.00059 in) |
| Repeatability | ±0.005 mm (±0.00020 in) |
| Tool Capacity | 28T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.2 s |
| Coolant Tank Capacity | 640 L (169 gal) |
| Chip Disposal | Drawer / Chip Screw |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 30 kVA |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,630 mm (64.2 in) x 850 mm (33.5 in) x 815 mm (32 in) envelope
- Table carries up to 2,760 kg (6,085 lb)
- 12,000 rpm XP spindle over a 1,750 x 800 mm (69 x 31.5 in) table
- 640 L (169 gal) coolant tank
Limitations
- BT40 spindle on a machine this size; the HV6A offers BT50 / CAT50
- Positioning accuracy is 0.015 mm (0.00059 in), looser than the 0.01 mm (0.00039 in) of the V5.5XP
- 28T magazine with a 7 kg (15 lb) tool weight limit
- Floor space and weight are printed in two unlabelled versions on the maker's page
Best For
Frequently Asked Questions
01
1,630 mm (64.2 in) in X, 850 mm (33.5 in) in Y and 815 mm (32 in) in Z. The table is 1,750 x 800 mm (69 x 31.5 in), and the spindle nose to table distance is 100~915 mm (4~36 in).
02
40-taper. The spindle is BT40 with 30 HP (22.4 kW) peak on the V and 35 HP (26.1 kW) on the XP. The HV6A covers the same travels with a BT50 / CAT50 spindle rated 42 HP (31.3 kW) peak.
03
Positioning 0.015 mm (0.00059 in) and repeatability ±0.005 mm (±0.00020 in). The smaller V-series machines up to the V5.5XP are listed at 0.01 mm (0.00039 in) and ±0.003 mm (±0.00012 in).
04
Standard loading is 2,300 kg (5,071 lb) and maximum loading 2,760 kg (6,085 lb). The table has six 18 mm T-slots at 125 mm pitch.
