YCM TV116B-APC

Q: How much does the YCM TV116B-APC cost?

The price estimate for the YCM TV116B-APC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-tv116b-apc#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

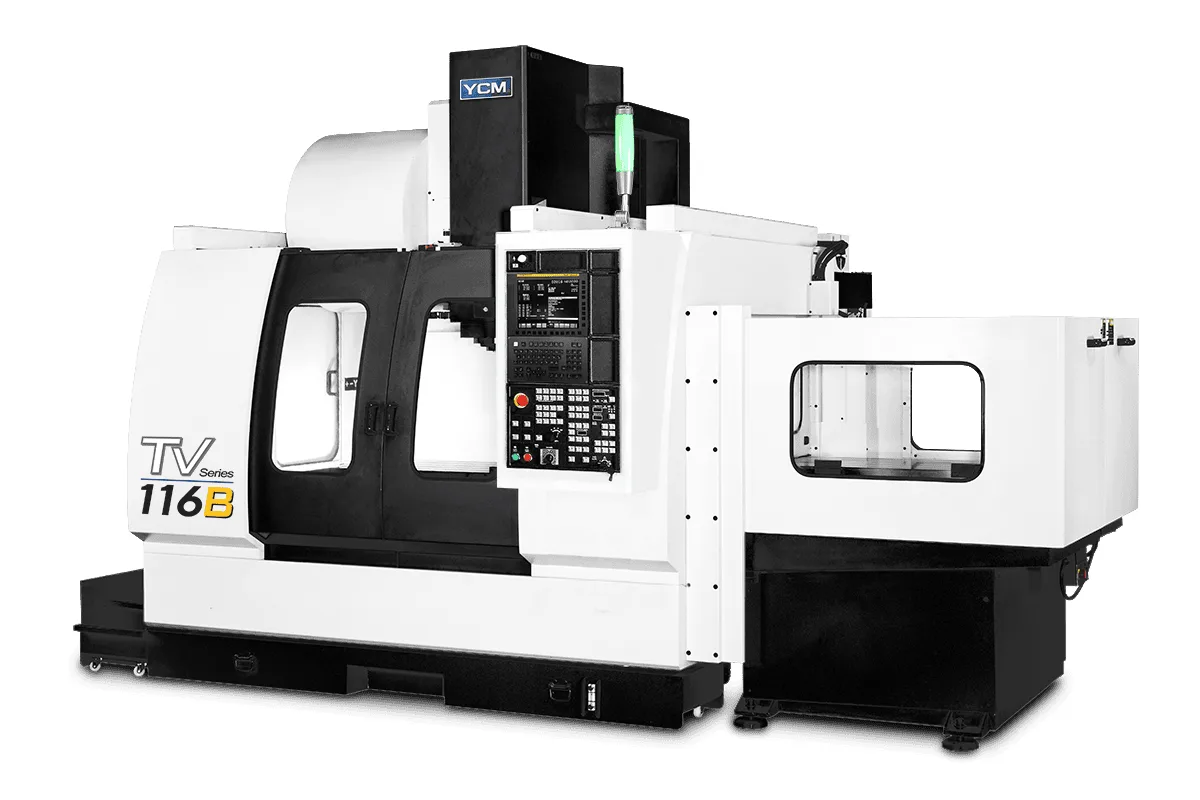

YCM TV116B-APC vertical machining center

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

6,000 rpm; opt. 10,000 rpm

Spindle Taper

BT50; opt. BBT50

Tool Capacity

24 tools; opt. 32 / 40 tools

Table Size

1,200 x 560 mm (47.24 x 22.05 in)

Spindle Power

25 kW (33.5 HP); opt. 45 kW (60.4 HP)

x axis travel

1,100 mm (43.31 in)

How much does the YCM TV116B-APC cost?

Price estimate

Uncertain

We do not have a price for the YCM TV116B-APC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Pallet changers are rare on 50-taper vertical machines, which is what makes the YCM TV116B-APC worth a look. It adds a shuttle type automatic pallet changer to the TV116B: the travels stay at 1,100 x 600 x 630 mm (43.31 x 23.62 x 24.80 in) and the spindle remains the BT50 gearhead unit at 6,000 rpm.

YCM gives the pallet change time as 25 sec and the pallet load as 600 kg (1,323 lb), on a pallet of 1,200 x 560 mm (47.24 x 22.05 in). Heavy cuts usually mean long cycles and long setups: a casting has to be craned in, located and clamped. Doing that on the idle pallet while the spindle works on the other one is where the changer earns its place. The limit to watch is the 600 kg, which has to cover fixture and part together.

The pallet system sits lower under the spindle than a fixed table. Spindle nose to table is listed as 68~698 mm, with 318~948 mm in brackets and no note on what the bracketed range refers to. The changer also adds mass, taking the machine to 12,760 kg (28,131 lb).

The cutting side is unchanged from the series: square guideways with Turcite-B on all axes, 25 kW (33.5 HP) in the table with a 45 kW (60.4 HP), 10,000 rpm option, 20 kg (44 lb) tools and a choice of 24, 32 or 40-tool magazines. Rapid traverse is 16 m/min (630 ipm).

Full Specifications

Parameter	Value
Max Spindle Speed	6,000 rpm; opt. 10,000 rpm
Spindle Motor Power	25 kW (33.5 HP); opt. 45 kW (60.4 HP)
Spindle Taper	BT50; opt. BBT50
X Axis Travel	1,100 mm (43.31 in)
Y Axis Travel	600 mm (23.62 in)
Z Axis Travel	630 mm (24.80 in)
Distance Spindle Nose to Table	68~698 (318~948) mm
Table Size	1,200 x 560 mm (47.24 x 22.05 in)
T-Slots	5 x 18 x 100 mm (5 x 0.71 x 3.94 in)
Max Table Load	600 kg (1,323 lb)
Rapid Traverse Xyz	16/16/16 m/min (630/630/630 ipm)
Cutting Feed Rate	1~5,000 mm/min (0.04~196.9 ipm)
Tool Capacity	24 tools; opt. 32 / 40 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	24T: ø110 x 350 (ø190 x 350) 30T/40T: ø120 x 350 (ø240 x 350) mm
Machine Weight	12,760 kg (28,131 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Shuttle type automatic pallet changer on a 50-taper vertical machine
Pallet change time of 25 sec
1,200 x 560 mm (47.24 x 22.05 in) pallets with T-slots
BT50 gearhead spindle and 20 kg (44 lb) tool capacity carried over from the fixed-table model
Arm type ATC driven by a roller gear cam

Limitations

Pallet load is 600 kg (1,323 lb), fixture included
Rapids of 16 m/min (630 ipm) and cutting feed up to 5,000 mm/min (196.9 ipm) are low
The machine weighs 12,760 kg (28,131 lb)
The spindle is limited to 6,000 rpm unless the 10,000 rpm option is ordered

Best For

Batch machining of cast and forged parts with long setup times Heavy-cut steel parts up to 600 kg (1,323 lb) with fixture Cells where an operator loads one pallet while the other is in the cut

Frequently Asked Questions

01 How long does a pallet change take on the TV116B-APC?

YCM gives the pallet change time as 25 sec. The changer is a shuttle type mechanism, which the maker says shortens loading and unloading time. Each pallet is rated for 600 kg (1,323 lb).

02 What size are the pallets?

The table size is listed as 1,200 x 560 mm (47.24 x 22.05 in) with T-slots given as 5 x 18 x 100 mm. X travel is 1,100 mm (43.31 in) and Y travel is 600 mm (23.62 in).

03 Is the spindle the same as on the TV116B?

The spindle rows are identical: BT50 with BBT50 as an option, 6,000 rpm with 10,000 rpm as an option, and 25 kW (33.5 HP) with 45 kW (60.4 HP) as an option. The TV116B weighs 11,200 kg (24,692 lb); this model weighs 12,760 kg (28,131 lb).

04 Which tool magazines are available?

24 tools as standard, with 32 or 40 tools as options. Tools can weigh up to 20 kg (44 lb). The arm type tool changer is driven by a roller gear cam.
