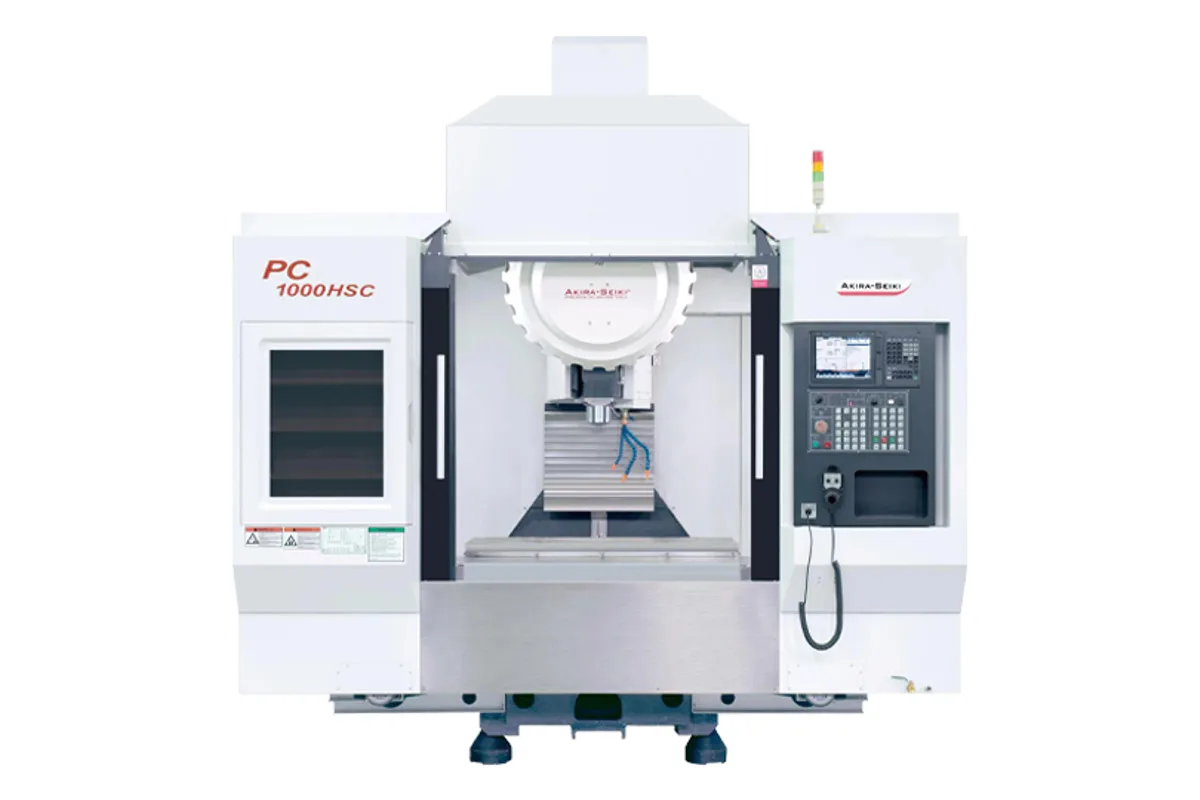

Akira Seiki PC1000HSC
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Accuracy
Repeatability
How much does the Akira Seiki PC1000HSC cost?
Price estimate
We do not have a price for the Akira Seiki PC1000HSC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki PC1000HSC takes the HSC spindle onto a machining-center sized frame. X travel is 1,020 mm (40.2 in), Y is 520 mm (20.5 in) and Z is 550 mm (21.7 in). The table is 1,170 x 460 mm (46.1 x 18.1 in), rated for 800 kg (1,764 lb), and the machine weighs 5,500 kg (12,125 lb).
Those are not tapping-center numbers. A 30-taper spindle on a one-metre machine is a specific tool for a specific job: large, light parts with many small features, such as die-cast covers, battery trays and sheet-like aluminium housings, where a larger taper would only slow the tool change.
The spindle is BT30, 15,000 rpm, oil cooled, and the table gives torque and power together as 84 Nm (62 lb-ft) / 10 HP (7.5 kW). Z travel of 550 mm (21.7 in) and a spindle nose height of 125 - 675 mm (4.9 - 26.6 in) leave room for tall fixtures.
The magazine holds 21T as standard and 26T as an option. Tools can be 80 mm (3.1 in) in diameter, 200 mm (7.9 in) long and 3 kg (7 lb). Coolant capacity is 450 L (118.9 gal) and the power requirement 25 kVA. The maker's rapid traverse, acceleration and floor space rows for this model carry the wrong unit and are left out here.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi845 |
| Spindle Torque Power | 84 Nm (62 lb-ft) / 10 HP (7.5 kW) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Taper | BT30 |
| Spindle Cooling | Oil Cooling |
| X Axis Travel | 1,020 mm (40.2 in) |
| Y Axis Travel | 520 mm (20.5 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| Distance Spindle Nose to Table | 125 - 675 mm (4.9 - 26.6 in) |
| Table Size | 1,170 x 460 mm (46.1 x 18.1 in) |
| Max Table Load | 800 kg (1,764 lb) |
| Positioning Accuracy | 0.01 mm |
| Repeatability | ±0.003 mm |
| Tool Capacity | 21T (Standard); 26T (Option) |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in) |
| Max Tool Length | 200 mm (7.9 in) |
| Max Tool Weight | 3 kg (7 lb) |
| Tool Change Time | T-T: 1.2 s (1.5 s) |
| Coolant Tank Capacity | 450 L (118.9 gal) |
| Power Requirement | 25 kVA |
| Air Pressure Requirement | 5 kgf/cm² |
| Machine Weight | 5,500 kg (12,125 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,020 mm (40.2 in) x 520 mm (20.5 in) x 550 mm (21.7 in) travels with a fast BT30 spindle
- Spindle torque and power listed as 84 Nm (62 lb-ft) / 10 HP (7.5 kW)
- Oil-cooled spindle at 15,000 rpm
- Table rated for 800 kg (1,764 lb)
- 26T magazine available as an option
Limitations
- BT30 taper and a 3 kg (7 lb) tool weight limit on a one-metre machine
- Rapid traverse and acceleration could not be taken from the maker's page, which prints them under the unit mm
- The standard magazine holds only 21T
- Power requirement of 25 kVA, against 15 kVA for the PC700HSC
Best For
Frequently Asked Questions
01
Travels are 1,020 mm (40.2 in), 520 mm (20.5 in) and 550 mm (21.7 in) in X, Y and Z. The table is 1,170 x 460 mm (46.1 x 18.1 in) and the machine weighs 5,500 kg (12,125 lb).
02
The table lists maximum torque and peak power together as 84 Nm (62 lb-ft) / 10 HP (7.5 kW). Maximum spindle speed is 15,000 rpm, the taper is BT30 and the spindle is oil cooled.
03
21T as standard, with 26T as an option. Maximum tool diameter is 80 mm (3.1 in), length 200 mm (7.9 in) and weight 3 kg (7 lb).
04
Yes, the PC1350HSC, with 1,350 mm (53.1 in) of X and 600 mm (23.6 in) of Y on a 1,500 x 600 mm (59.1 x 23.6 in) table rated for 1,100 kg (2,425 lb) and with 500 mm (19.7 in) of Z travel.
