Akira Seiki V10XP
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki V10XP cost?
Price estimate
We do not have a price for the Akira Seiki V10XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The V10XP is the largest machine in Akira Seiki's V series and one of the largest C-frame verticals the maker lists: 2,600 mm (102.3 in) of X travel, 1,030 mm (40.6 in) of Y and 815 mm (32 in) of Z. The table is 2,750 x 950 mm (108.2 x 37.4 in) with seven 18 mm T-slots at 125 mm pitch.
A metre of Y on a fixed-column vertical needs a long reach, and the table shows it: the spindle centre is 1,050 mm (41.3 in) from the column cover. Overhang of that order is a reason to keep cuts moderate at the front of the table, whatever the motor allows.
And the motor allows a fair amount for a 40-taper. The V version is 30 HP (22.4 kW) peak at 10,000 rpm, the XP 35 HP (26.1 kW) at 12,000 rpm, with an 8,000 rpm option, all BT40. The HV10A is the 50-taper machine on these travels.
No table load is shown on this page. Akira Seiki prints one for the V10XP, but its kilogram and pound figures do not agree, so ask the maker for the rating in writing. Coolant capacity is 900 L (237.8 gal). Accuracy is listed at 0.015 mm (0.00059 in) positioning and ±0.005 mm (±0.00020 in) repeatability. Supply: 30 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| X Axis Travel | 2,600 mm (102.3 in) |
| Y Axis Travel | 1,030 mm (40.6 in) |
| Z Axis Travel | 815 mm (32 in) |
| Distance Spindle Nose to Table | 100~915 mm (4~36 in) |
| Spindle Center to Column Cover | 1,050 mm (41.3 in) |
| Table Size | 2,750 x 950 mm (108.2 x 37.4 in) |
| T-Slots | 18 mm x 125 mm pitch x 7 slots |
| Spindle Motor Power | 30 HP (22.4 kW) (V); 35 HP (26.1 kW) (XP) |
| Max Spindle Speed | 10,000 rpm (V); 12,000 rpm (XP); 8,000 rpm (OPT) |
| Spindle Taper | BT40 |
| Positioning Accuracy | 0.015 mm (0.00059 in) |
| Repeatability | ±0.005 mm (±0.00020 in) |
| Tool Capacity | 28T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.2 s |
| Coolant Tank Capacity | 900 L (237.8 gal) |
| Chip Disposal | Drawer / Chip Screw |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 30 kVA |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,600 mm (102.3 in) of X and 1,030 mm (40.6 in) of Y travel
- 2,750 x 950 mm (108.2 x 37.4 in) table with seven T-slots
- 900 L (237.8 gal) coolant tank
- BT40 spindle up to 35 HP (26.1 kW) peak and 12,000 rpm
Limitations
- Table load could not be taken from the maker's page, where kg and lb disagree
- Spindle centre is 1,050 mm (41.3 in) from the column cover, a long overhang
- Z travel stays at 815 mm (32 in), the same as the V6XP
- A 28T magazine and 7 kg (15 lb) tool limit on a 2.6 m machine
Best For
Frequently Asked Questions
01
Travels are 2,600 mm (102.3 in) in X, 1,030 mm (40.6 in) in Y and 815 mm (32 in) in Z. The table is 2,750 x 950 mm (108.2 x 37.4 in). Spindle nose to table distance is 100~915 mm (4~36 in).
02
It is not shown here. The maker's table gives kilogram and pound figures for this model that do not convert into each other, so the row was left out. The V8XP, one size down, is listed at 3,240 kg (7,142 lb) maximum.
03
A BT40 spindle: 30 HP (22.4 kW) peak and 10,000 rpm as the V, 35 HP (26.1 kW) peak and 12,000 rpm as the XP, or an optional 8,000 rpm unit. The magazine holds 28T.
04
The HV10A has the same 2,600 mm (102.3 in), 1,030 mm (40.6 in) and 815 mm (32 in) travels with a BT50 / CAT50 spindle rated 42 HP (31.3 kW) peak. It is a separate model in the HV series.
More from Akira Seiki
Other Vertical Machining Centers (VMC)
Brother Speedio S700Xd2

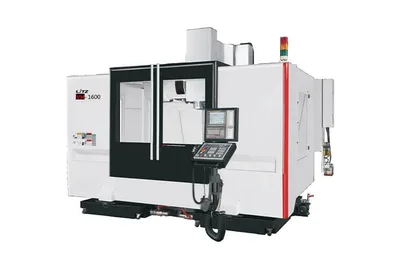

Litz VH-2000B
AXA VCC

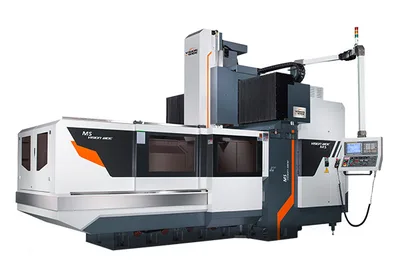

Vision Wide MS-4123
