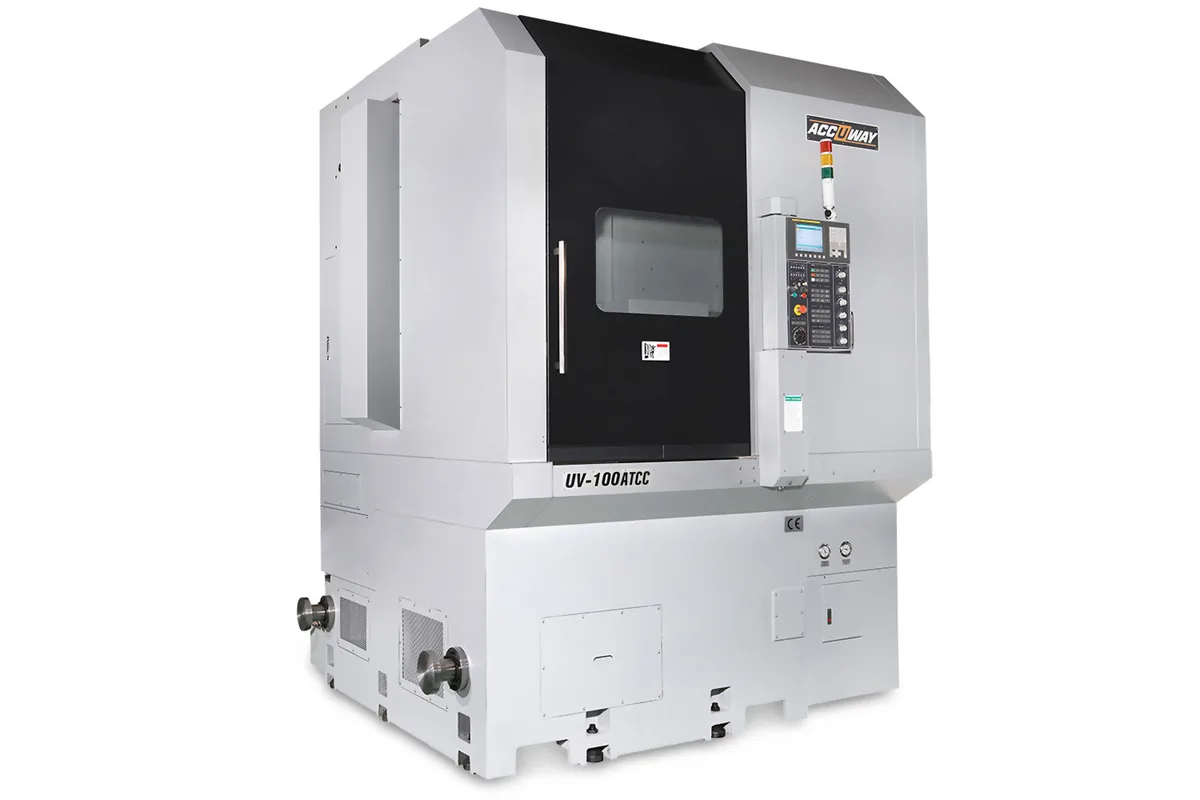

Accuway UV-100ATCC
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
Max Turn Length
control
swing over bed
How much does the Accuway UV-100ATCC cost?
Price estimate
We do not have a price for the Accuway UV-100ATCC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 17,000 kg (37,478 lb), the Accuway UV-100ATCC is the heaviest and most fully equipped vertical turning center the maker lists. It joins a one-metre turning capacity to a driven BT50 tool spindle fed from a 12-station magazine.
The tool spindle is rated higher than on the 750 mm frame. Its motor row reads 7.5/11 kW (10.1/14.8 hp), where the UV-75ATCC lists 5.5/7.5 kW (7.4/10.1 hp). Maximum speed is 3,000 rpm, maximum torque 105 N-m (77.4 lb-ft), the drive is by belt and the bearing diameter is 100 mm (3.9 in).
Behind the chuck, the work spindle is driven through a 2-step gearbox + Belt by 30/37 kW (40.2/49.6 hp), bracketed alternatives being 37/45 and 45/55 kW, and reaches 1,200 rpm. The nose is A2-15 and the chuck row reads 24 (32/40) in. Maximum turning diameter is 1,000 mm (39.4 in) with 800 mm (31.5 in) of turning length.
In practice the machine is a way to finish a large part complete. Turn the bores and faces, then mill pads, drill and tap, without lifting several hundred kilograms to another machine. Tools can be 400 mm (15.7 in) long and 50 kg (110 lb). The limits are the 12 tool positions and the absence of a Y axis in the table. X travel is 765 mm (30.1 in), Z is 800 mm (31.5 in), and the height is 4.6 m. Indexing type is printed as Servo gear.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 1,100 mm (43.3 in) |
| Max Turning Diameter | 1,000 mm (39.4 in) |
| Max Turning Length | 800 mm (31.5 in) |
| Guideway Type | Box way |
| Spindle Nose | A2-15 |
| Chuck Size | 24 (32/40) in |
| Max Spindle Speed | 1,200 rpm |
| Spindle Drive | 2-step gearbox + Belt |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45, 45/55 kW (49.6/60.3, 60.3/73.8 hp) |
| Tool Spindle Taper | BT50 |
| Tool Spindle Speed | 3,000 rpm |
| Tool Spindle Drive | Belt |
| Tool Spindle Bearing Diameter | 100 mm (3.9 in) |
| Tool Spindle Power | 7.5/11 kW (10.1/14.8 hp) |
| Tool Spindle Torque | 105 N-m (77.4 lb-ft) |
| X Axis Travel | 765 mm (30.1 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Rapid Traverse X | 15 m/min (591 in/min) |
| Rapid Traverse Z | 7 m/min (276 in/min) |
| Magazine Indexing Type | Servo gear |
| Tool Capacity | 12 |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 50 kg (110 lb) |
| Max Magazine Load | 420 kg (926 lb) |
| Machine Dimensions | L x W x H: 3.1 x 3.7 x 4.6 m (122.0 x 145.7 x 181.1 in) |
| Machine Weight | 17,000 kg (37,478 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Driven BT50 tool spindle with 7.5/11 kW (10.1/14.8 hp) and 105 N-m (77.4 lb-ft)
- 1,000 mm (39.4 in) turning diameter and 800 mm (31.5 in) turning length
- Geared work spindle with 30/37 kW (40.2/49.6 hp)
- Tools up to 400 mm (15.7 in) long and 50 kg (110 lb) from a 12-station magazine
- 765 mm (30.1 in) of X travel on box ways
Limitations
- 12 magazine positions shared between turning and milling tools
- No Y axis is listed in the spec table
- 4.6 m high and 17,000 kg (37,478 lb)
- Rapid traverse of 15 m/min (591 in/min) in X and 7 m/min (276 in/min) in Z
Best For
Frequently Asked Questions
01
A driven tool spindle with a BT50 taper, 3,000 rpm maximum speed, a 7.5/11 kW (10.1/14.8 hp) motor and 105 N-m (77.4 lb-ft) of maximum torque, with belt drive and a 100 mm (3.9 in) bearing diameter. The table lists X and Z travels only.
02
Both share the 1,000 mm turning diameter, the travels and the 12-station magazine. The UV-100ATC table lists only the BT50 taper for the tool spindle and a weight of 16,500 kg (36,376 lb). The UV-100ATCC adds the driven tool spindle rows and weighs 17,000 kg (37,478 lb).
03
An A2-15 spindle driven by a 2-step gearbox + Belt, 1,200 rpm, with a 30/37 kW (40.2/49.6 hp) motor and 37/45 and 45/55 kW printed in brackets. The chuck diameter row reads 24 (32/40) in.
04
3.1 x 3.7 x 4.6 m (122.0 x 145.7 x 181.1 in) as L x W x H and 17,000 kg (37,478 lb) net weight. The guideway type is Box way and the control is a FANUC 0i-T. The page lists no accessories.
