DN Solutions PUMA TW 2100

$150,000 - $220,000 Updated 2026-03-19

Key Specifications

Max Spindle

4,500 RPM

Spindle Power

15/11 kW (20/15 hp)

Max Turn Length

128 mm

chuck size

8 inch

max turning diameter

240 mm

x axis travel

135 mm (5.3 in)

Overview

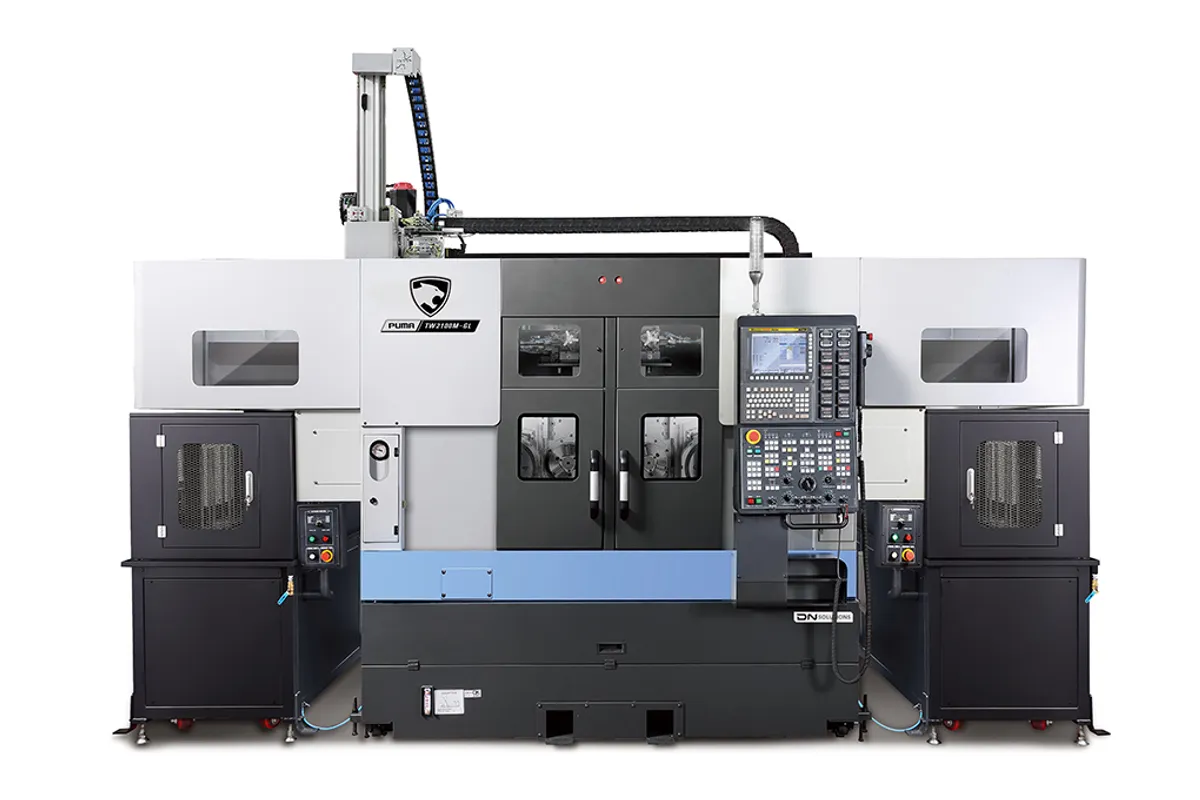

The DN Solutions PUMA TW 2100 is a twin-spindle, twin-turret horizontal lathe designed specifically for high-volume production of small parts. The 'TW' designation tells you what this machine is about: two independent spindles sitting side by side, each with its own 8-station turret, machining two parts simultaneously. While the TT series uses twin turrets on a single workpiece, the TW approach runs two identical operations at the same time — effectively doubling your output from a single machine footprint.

Each spindle pushes 15/11 kW (20/15 hp) with 127 Nm (94 ft-lb) of torque at 4,500 RPM. These aren't heavy-duty spindles — they're sized for small, fast parts. Max turning diameter is 240 mm (9 in) with just 128 mm (5 in) of turning length. The short Z-stroke and compact turrets are optimized for quick-hit operations: face, turn, bore, chamfer, done. With only 135 mm of X-travel and 160 mm of Z-travel, every millimeter is productive.

Rapids hit 24 m/min on both axes. Each turret carries 8 stations. The FANUC control manages both spindle paths independently, so you can run the same program on both sides or different programs for two different parts. The machine weighs just 4,650 kg (10,251 lb) on a compact 2,030 mm by 2,098 mm footprint — remarkably small for a twin-spindle machine.

This is a production workhorse, not a job shop machine. If you're running automotive fasteners, hydraulic fittings, small valve components, or any other high-volume small turned part, the TW 2100 produces twice the output of a single-spindle lathe. At roughly half the cost of a twin-turret TT model, it's the most cost-effective way to double your throughput on simple parts.

Full Specifications

Parameter	Value
Chuck Size	8 inch
Max Turning Diameter	240 mm
Max Turning Length	128 mm
X Axis Travel	135 mm (5.3 in)
Z Axis Travel	160 mm (6.3 in)
Rapid Traverse X	24 m/min (945 in/min)
Rapid Traverse Z	24 m/min (945 in/min)
Max Spindle Speed	4,500 RPM
Spindle Motor Power	15/11 kW (20/15 hp)
Spindle Torque	127 Nm (94 ft-lb)
Turret Stations	2x 8-station
Machine Length	2,030 mm (80 in)
Machine Width	2,098 mm (83 in)
Machine Height	2,278 mm (90 in)
Machine Weight	4,650 kg (10,251 lb)
CNC Control	FANUC
Metric	IMPERIAL
Capacity	Chuck sizeMax. Turning DiameterMax. Turning Length
Travels	X-Axis Rapid TraverseZ-Axis Rapid TraverseX-Axis Travel DistanceZ-Axis Travel Distance
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Turret	No. of tool stationRotary Tool r/min
No Of Tool Station	Rotary Tool r/min
Dimensions	LengthHeightWidthWeight
Favorites	PUMA TW 2100-GL
10 Ea	5000 RPM

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Twin independent spindles produce two parts simultaneously, effectively doubling output from a single machine
Extremely compact 2m x 2m footprint delivers twice the throughput per square foot of floor space
24 m/min rapids on both axes minimize non-cutting time on short-cycle parts
4,500 RPM spindle speed handles aluminum and steel small-diameter parts efficiently
4,650 kg lightweight design is easy to install and doesn't require heavy foundation work
Lower acquisition cost than twin-turret TT models while still doubling production output

Limitations

128 mm max turning length severely limits part size — this is strictly a short-parts machine
15/11 kW spindle power is modest — not for heavy roughing in tough materials
8-station turrets limit tool count compared to 12-station turrets on TT and standard models
No live tooling or Y-axis on the base TW 2100 — turning and on-center drilling only
127 Nm torque is low for anything beyond light-to-medium duty cutting

Best For

High-volume production shops running thousands of identical small turned parts per shift Automotive fastener and fitting manufacturers needing maximum throughput per machine Hydraulic and pneumatic component producers making small valve bodies and connectors Shops looking to double output without doubling floor space or operator count Production of short, simple turned parts where cycle time under 60 seconds is the target Facilities replacing two single-spindle lathes with one twin-spindle machine

Frequently Asked Questions

01 How is the TW different from the TT series?

The TT (twin-turret) uses two turrets on a single workpiece for simultaneous operations on one part. The TW (twin-spindle) has two separate spindles, each with its own turret, making two parts at the same time. TT is for complex parts; TW is for high-volume simple parts where you want to double output.

02 How much does a PUMA TW 2100 cost?

New TW 2100 machines typically run $150,000-$220,000 depending on options. That's substantially less than the TT series twin-turret machines. For shops that need to double output on simple parts, the TW offers the best cost-per-part reduction in the DN Solutions lathe lineup.

03 Can the two spindles run different programs?

Yes, the FANUC multi-path control can run independent programs on each spindle. You can make two different parts simultaneously, or run the same program on both sides. Each spindle-turret combination operates as an independent turning center within the same machine.

04 Is bar feeding available for the TW 2100?

Yes, the TW 2100 supports dual bar feeder setups for fully automated production on both spindles. Each spindle feeds independently, allowing lights-out operation producing two parts per cycle. This is the most common configuration for high-volume production shops.

05 What's the typical cycle time?

With 128 mm max turning length and 8-station turrets, the TW 2100 is optimized for short cycles. Typical production parts run 15-45 seconds per part, per spindle. With both spindles running, that's 30-90 parts per hour depending on complexity. The short X and Z travels minimize positioning time.
