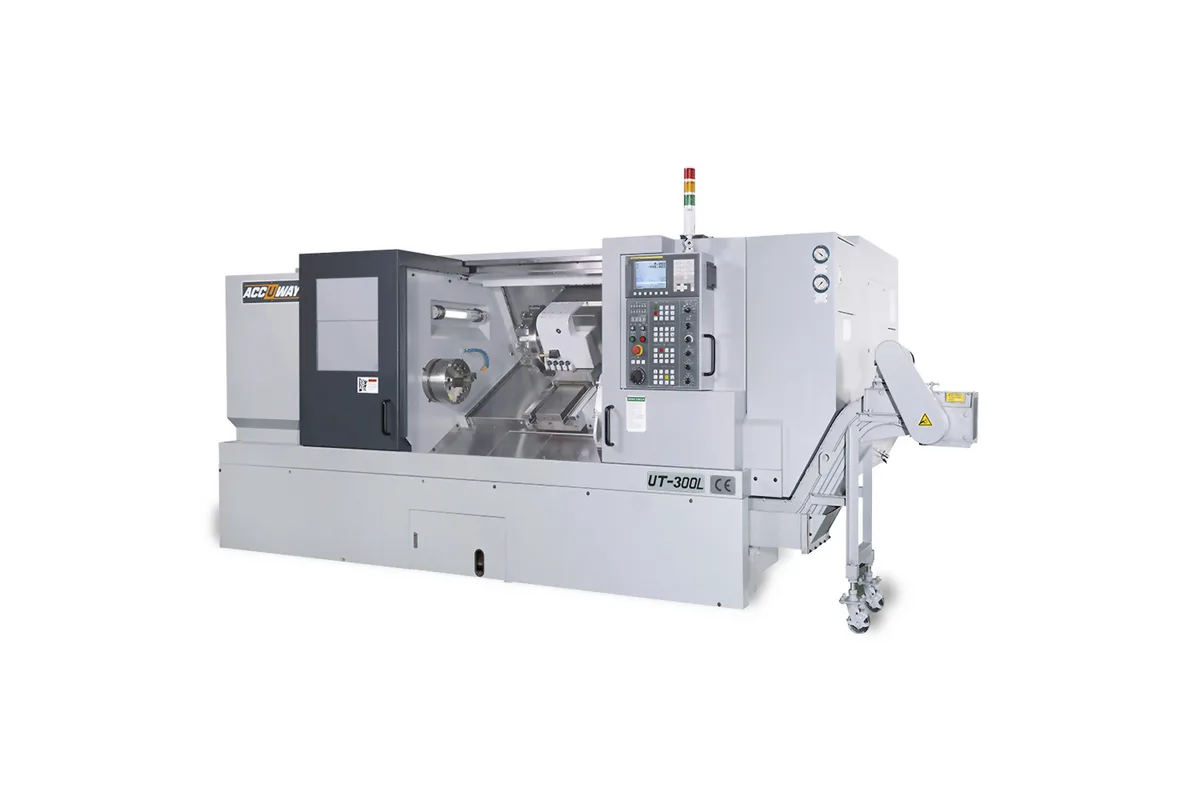

Accuway UT-300LM
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300LM cost?
Price estimate
We do not have a price for the Accuway UT-300LM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Think of a pump shaft with a keyway at one end and a drilled cross hole at the other. The Accuway UT-300LM is built for that part: a 1,250 mm (49.2 in) Z travel, a tailstock, and a 12-station BMT/VDI turret with rotary tools at 4,000 rpm.
Turning length is 1,040 mm (40.9 in) with an A2-8 spindle and 960 mm (37.8 in) with A2-11. Those figures are shorter than the UT-300L's 1,180 mm (46.5 in), because the driven turret takes room along Z as well as across the bed. Maximum turning diameter is 420 mm (16.5 in).
The rotary tool motor is rated 3.7/5.5 kW (5.0/7.4 hp). That suits keyways, wrench flats, drilled and tapped holes. Heavy slotting in steel will be slow, and without a Y axis every milled feature sits on the spindle centreline. With the tailstock engaged, its body having 1,040 mm (40.9 in) of travel, a shaft can be held at both ends while the keyway is cut.
Underneath it is the same machine as the UT-300L: box guideways, 6,000 kg (13,228 lb), a 15/18.5 kW (20.1/24.8 hp) spindle motor and rapids of 20 m/min (787 in/min) in X and 24 m/min (945 in/min) in Z. Height rises slightly to 1.9 m. The rotary tool holders, 0 degree and 90 degree, are named for the UT-300LM under optional accessories.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 612 mm (24.1 in) |
| Swing Over Saddle | 400 mm (15.7 in) |
| Max Turning Diameter | 420 mm (16.5 in) |
| Max Turning Length | 1,040 / 1,040 / 960 / 960 mm (40.9 / 40.9 / 37.8 / 37.8 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 4,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 1,040 mm (40.9 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 110 mm (4.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 4 x 1.8 x 1.9 m (157.5 x 70.9 x 74.8 in) |
| Machine Weight | 6,000 kg (13,228 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Live tooling at 4,000 rpm along a 1,250 mm (49.2 in) Z travel
- Turning length of 1,040 mm (40.9 in) with tailstock support
- BMT/VDI turret, 12 stations, servo mechanical drive
- Spindle columns up to A2-11 with a 15 in chuck
- Z rapid traverse of 24 m/min (945 in/min)
Limitations
- Turning diameter limited to 420 mm (16.5 in)
- No Y axis in the table, so milling stays on centre
- Rotary tool motor of 3.7/5.5 kW (5.0/7.4 hp) limits heavy milling
- 0 degree and 90 degree rotary tool holders are optional
Best For
Frequently Asked Questions
01
1,040 mm (40.9 in) in the two A2-8 spindle columns and 960 mm (37.8 in) in the two A2-11 columns. Z travel is 1,250 mm (49.2 in) and the maximum turning diameter 420 mm (16.5 in).
02
Length. The UT-300M has 750 mm (29.5 in) of Z travel and a 540 mm (21.3 in) tailstock body travel; the UT-300LM has 1,250 mm (49.2 in) and 1,040 mm (40.9 in). The UT-300M weighs 5,500 kg (12,125 lb), the UT-300LM 6,000 kg (13,228 lb). Turret and rotary tool figures match.
03
A2-8 with a 10 in chuck and 3,500 rpm, A2-8 with a 12 in chuck and 2,700 rpm, and A2-11 with a 15 in chuck at 2,500 rpm or 2,000 rpm. Bar capacity is 75 mm (3.0 in), 90 mm (3.5 in), 105 mm (4.1 in) or 116.5 mm (4.6 in).
04
The optional accessories include a parts catcher and parts conveyor, a bar feeder interface (7 or 24 pins), a bar feeder, a loader interface and a gantry loader system. An auto door and a linear scale are listed as options too.
