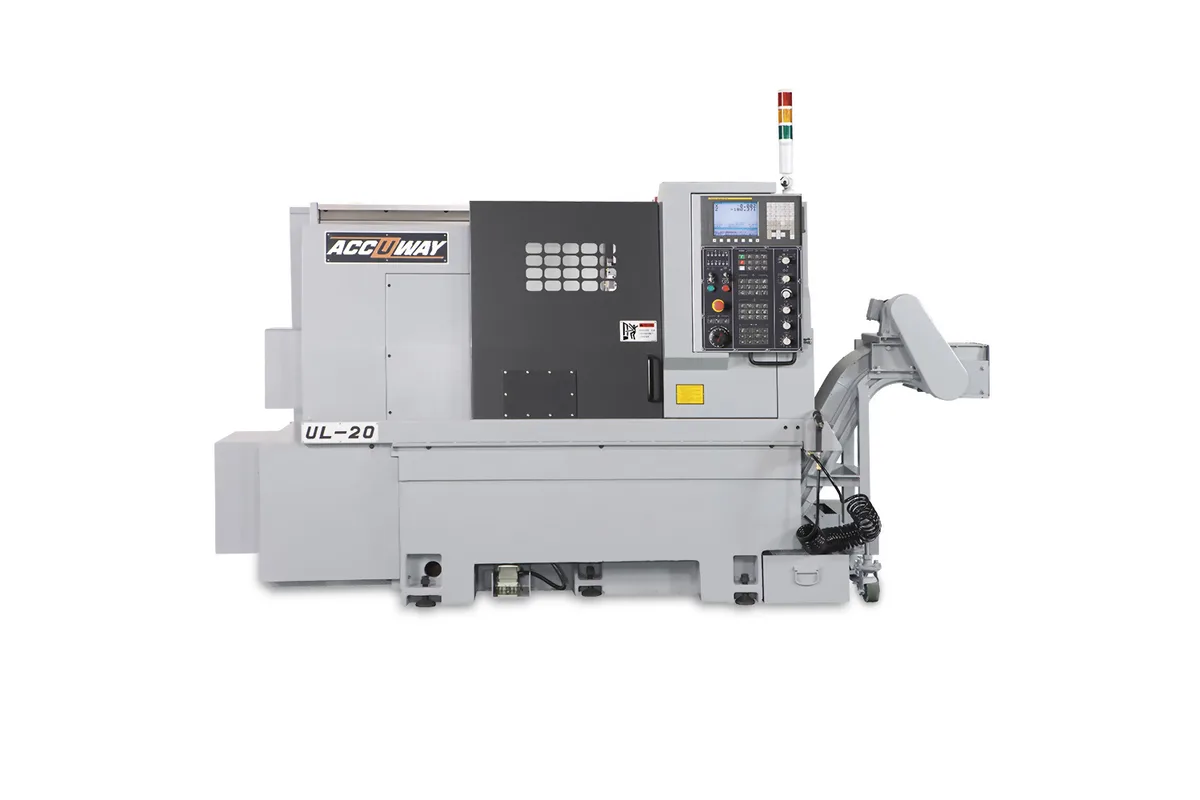

Accuway UL-20
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UL-20 cost?
Price estimate
We do not have a price for the Accuway UL-20 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 625 mm (24.6 in) of Z travel the Accuway UL-20 doubles the turning length of the UL-15 to 600 mm (23.6 in). The rest of the machine is carried over: box ways, 175 mm (6.9 in) of X travel, a 280 mm (11.0 in) turning diameter and an 11/15 kW (14.8/20.1 hp) spindle.
At that length the tailstock starts to earn its place. Its body travels 400 mm (15.7 in) and the quill 150 mm (5.9 in), nearly twice the quill stroke of the UL-15, with a 70 mm (2.8 in) quill on an MT#4 taper. Shafts of half a metre can be turned between chuck and centre.
How does it sit against the UT-200, the slant-bed machine of similar size in Accuway's range? The UL-20 is the lighter and narrower of the two, at 3,350 kg (7,385 lb) and 1.5 m wide, with a comparable turning envelope. Its spindle list stops at A2-6 with a 65 mm (2.6 in) bar, where the UT-200 goes on to A2-8.
Turret stations number 8, 10 or 12 depending on the spindle column, with BOT tooling. Rapid traverse is 20 m/min (787 in/min) in X and Z. Bar feeder, parts catcher, loader interface and gantry loader system are optional, as is a tool setter. The control is a FANUC 0i-T with a 10.4" Colored LCD monitor.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 455 mm (17.9 in) |
| Swing Over Saddle | 260 mm (10.2 in) |
| Max Turning Diameter | 280 mm (11.0 in) |
| Max Turning Length | 600 mm (23.6 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 / A2-6 / A2-6 |
| Chuck Size | 6 / 8 / 8 in |
| Bar Capacity | 44 / 52 / 65 mm (1.7 / 2.0 / 2.6 in) |
| Max Spindle Speed | 6,000 / 4,500 / 4,000 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| X Axis Travel | 175 mm (6.9 in) |
| Z Axis Travel | 625 mm (24.6 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 8 / 10 / 12 |
| Square Tool Shank | 25 / 25 / 20 mm (1.0 / 1.0 / 0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Tailstock Body Travel | 400 mm (15.7 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 70 mm (2.8 in) |
| Tailstock Quill Taper | MT#4 |
| Machine Dimensions | L x W x H: 2.5 x 1.5 x 1.7 m (98.4 x 59.1 x 66.9 in) |
| Machine Weight | 3,350 kg (7,385 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 600 mm (23.6 in) turning length in a 2.5 m long machine
- Tailstock with 400 mm (15.7 in) of body travel and 150 mm (5.9 in) quill stroke
- 11/15 kW (14.8/20.1 hp) spindle, 6,000 rpm in the A2-5 column
- Box guideways at 3,350 kg (7,385 lb)
- Only 1.5 m wide, with a 2.5 m machine length
Limitations
- Largest spindle is A2-6 with a 65 mm (2.6 in) bar
- X travel of 175 mm (6.9 in)
- No rotary tools on this model
- Swing over saddle of 260 mm (10.2 in)
Best For
Frequently Asked Questions
01
600 mm (23.6 in), on a Z-axis travel of 625 mm (24.6 in). Maximum turning diameter is 280 mm (11.0 in) and swing over bed 455 mm (17.9 in).
02
Tailstock body travel is 400 mm (15.7 in), quill travel 150 mm (5.9 in), quill diameter 70 mm (2.8 in) and quill taper MT#4.
03
The JT-200 runs on linear ways with rapids of 30 m/min (1,181 in/min), has 600 mm (23.6 in) of Z travel and turns 300 mm (11.8 in). The UL-20 runs on box ways at 20 m/min (787 in/min), has 625 mm (24.6 in) of Z travel and turns 280 mm (11.0 in).
04
2.5 x 1.5 x 1.7 m (98.4 x 59.1 x 66.9 in) as length, width and height, with a net weight of 3,350 kg (7,385 lb).
