Accuway JT-150M

Q: How much does the Accuway JT-150M cost?

The price estimate for the Accuway JT-150M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-jt-150m#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

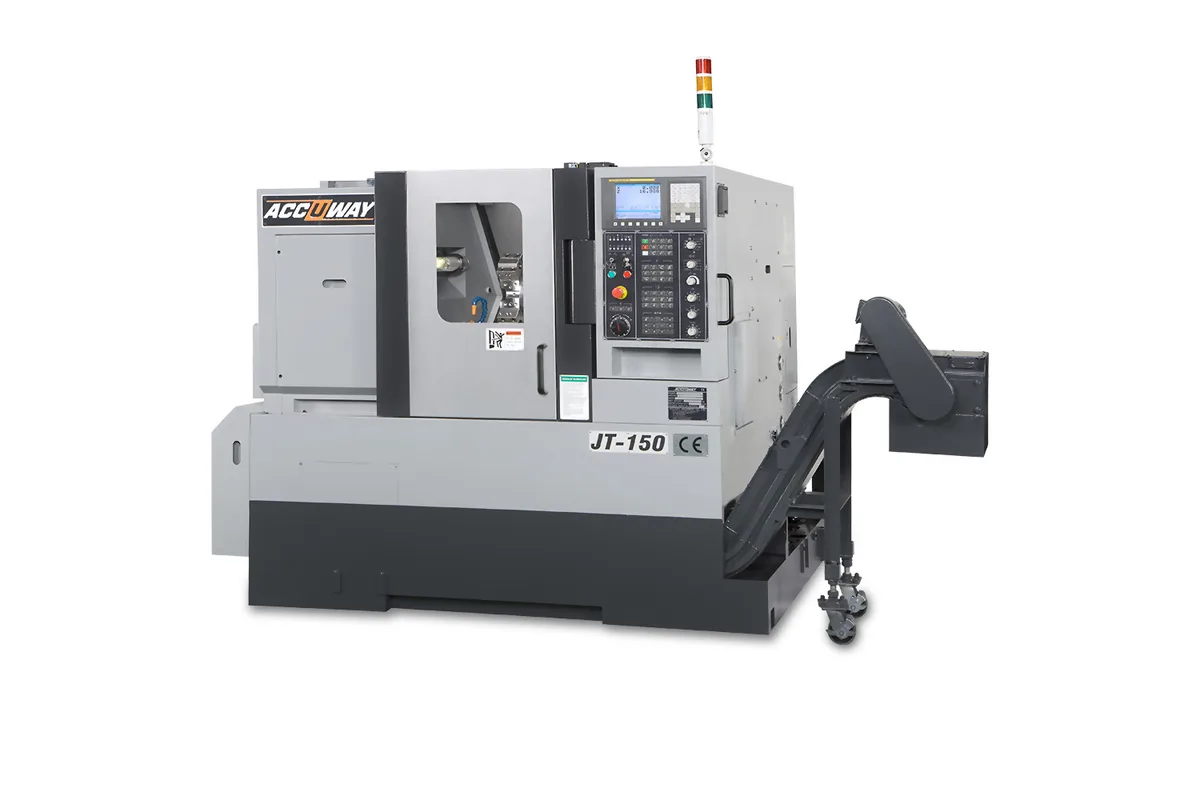

Accuway JT-150 / JT-150M slant bed linear way CNC lathe

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 / 4,500 / 4,000 rpm

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp)

Max Turn Length

200 mm (7.9 in)

control

FANUC 0i-T

swing over bed

505 mm (19.9 in)

swing over saddle

318 mm (12.5 in)

How much does the Accuway JT-150M cost?

Price estimate

Uncertain

We do not have a price for the Accuway JT-150M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accuway JT-150M pairs 30 m/min (1,181 in/min) rapids with rotary tools that turn at 6,000 rpm. Everything about it is aimed at short cycles on small parts: linear ways, a 350 mm (13.8 in) Z travel, a 12-station BMT/VDI turret.

Its turning envelope is 230 mm (9.1 in) in diameter by 200 mm (7.9 in) in length. That diameter is notably generous for a live-tool machine of this size; the box-way UL-15M, with the same turret type, is limited to 180 mm (7.1 in). The extra room comes with the slant bed's wider swing, 505 mm (19.9 in) over the bed, and 195 mm (7.7 in) of X travel.

A short turning length means the part is usually held in the chuck alone, although a tailstock with 200 mm (7.9 in) of body travel is in the table. Typical work would be a flange with a drilled bolt circle, a pulley with a keyway, or a bar part with a milled hex. Each can be finished on one side per cycle.

The rotary tool motor is 3.7/5.5 kW (5.0/7.4 hp), the spindle 11/15 kW (14.8/20.1 hp). Chuck size is 6 in or 8 in and the top spindle speed 6,000 rpm, 4,500 rpm or 4,000 rpm by column. At 3,000 kg (6,614 lb) the JT-150M is slightly heavier than the JT-150 and 1.9 m high. Rotary tool holders are options, as are the bar feeder and the gantry loader system.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	505 mm (19.9 in)
Swing Over Saddle	318 mm (12.5 in)
Max Turning Diameter	230 mm (9.1 in)
Max Turning Length	200 mm (7.9 in)
Guideway Type	Linear
Spindle Nose	A2-5 / A2-6 / A2-6
Chuck Size	6 / 8 / 8 in
Bar Capacity	44 / 52 / 65 mm (1.7 / 2.0 / 2.6 in)
Max Spindle Speed	6,000 / 4,500 / 4,000 rpm
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp)
X Axis Travel	195 mm (7.7 in)
Z Axis Travel	350 mm (13.8 in)
Rapid Traverse X	30 m/min (1,181 in/min)
Rapid Traverse Z	30 m/min (1,181 in/min)
Turret Tooling	BMT/VDI
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Rotary Tool Speed	6,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Tailstock Body Travel	200 mm (7.9 in)
Tailstock Quill Travel	150 mm (5.9 in)
Tailstock Quill Diameter	70 mm (2.8 in)
Tailstock Quill Taper	MT#4
Machine Dimensions	L x W x H: 2.4 x 1.7 x 1.9 m (94.5 x 66.9 x 74.8 in)
Machine Weight	3,000 kg (6,614 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

30 m/min (1,181 in/min) rapids with 6,000 rpm rotary tools
230 mm (9.1 in) turning diameter with live tooling
12-station BMT/VDI turret, servo mechanical
11/15 kW (14.8/20.1 hp) main spindle
Linear ways and a 3,000 kg (6,614 lb) build

Limitations

Turning length of 200 mm (7.9 in)
No Y axis: milling stays on the centreline
Rotary tool motor of 3.7/5.5 kW (5.0/7.4 hp)
Rotary tool holders, bar feeder and loader are optional

Best For

Flanges and pulleys with drilled or keyed features Short bar parts with milled hexes or flats High-volume turn-mill work in light alloys Cells where rapid traverse time limits output

Frequently Asked Questions

01 What live tooling does the Accuway JT-150M have?

A 12-station turret with BMT/VDI tooling and servo mechanical drive. Rotary tool speed is 6,000 rpm and rotary tool power 3.7/5.5 kW (5.0/7.4 hp). Tool shanks are 20 mm (0.8 in) square and 32 mm (1.3 in) round.

02 How does the JT-150M compare with the UL-15M?

The UL-15M has box ways, rapids of 20 m/min (787 in/min) and a 180 mm (7.1 in) turning diameter. The JT-150M has linear ways, rapids of 30 m/min (1,181 in/min) and a 230 mm (9.1 in) turning diameter. Both weigh 3,000 kg (6,614 lb).

03 What are the travels of the JT-150M?

X-axis travel is 195 mm (7.7 in) and Z-axis travel 350 mm (13.8 in). The tailstock body travels 200 mm (7.9 in) and its quill 150 mm (5.9 in).

04 How large is the JT-150M?

2.4 x 1.7 x 1.9 m (94.5 x 66.9 x 74.8 in) as length, width and height, at a net weight of 3,000 kg (6,614 lb). The JT-200M is the longer version at 2.6 m.
