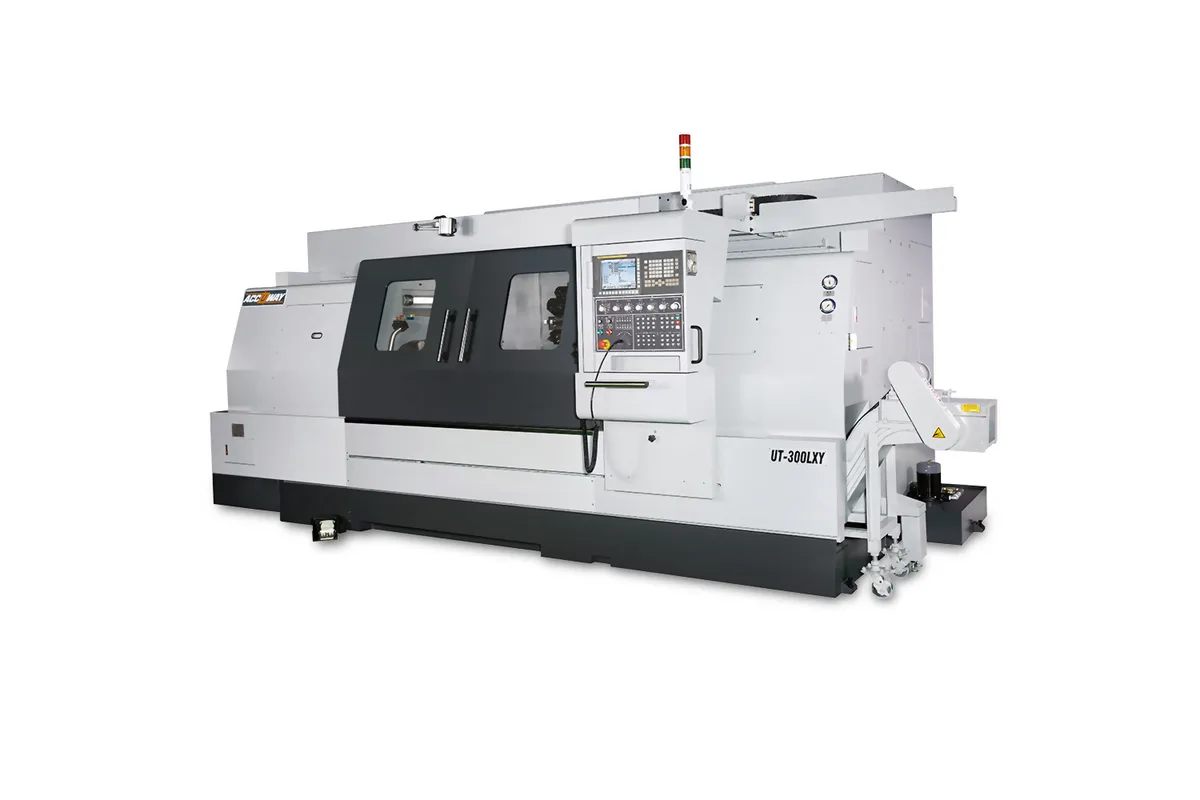

Accuway UT-300LXY
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300LXY cost?
Price estimate
We do not have a price for the Accuway UT-300LXY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Long shafts with milled features that sit off the centreline are the job of the Accuway UT-300LXY. It joins a 1,750 mm (68.9 in) Z travel to a Y axis of ±50 mm (±2.0 in) and a rotary-tool turret, and keeps a tailstock for support.
Maximum turning length is 1,540 mm (60.6 in) with the A2-8 spindles and 1,470 mm (57.9 in) with A2-11; maximum turning diameter is 420 mm (16.5 in). The tailstock body travels the same 1,540 mm (60.6 in), so the centre can follow the work anywhere along the bed. Its quill is 85 mm (3.3 in) in diameter, MT#5.
Why would a shaft need Y? A keyway cut with X and C alone has to be exactly as wide as the cutter. With Y the cutter can step sideways, so one end mill produces several keyway widths, and flats can be finished to size on both flanks. Splined or cross-drilled shafts with holes offset from the axis are programmed the same way. The live stations turn at 4,000 rpm on 3.7/5.5 kW (5.0/7.4 hp).
This is a large machine for its turning diameter: 5.4 x 2.5 x 2.4 m (212.6 x 98.4 x 94.5 in) and 7,800 kg (17,196 lb). Unlike the two-axis UT-300LX, its option list keeps the bar feeder and parts catcher and adds a gear box, and a steady rest is offered as well. The turret is a 12-station BMT/VDI type.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 910 mm (35.8 in) |
| Swing Over Saddle | 720 mm (28.3 in) |
| Max Turning Diameter | 420 mm (16.5 in) |
| Max Turning Length | 1,540 / 1,540 / 1,470 / 1,470 mm (60.6 / 60.6 / 57.9 / 57.9 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 275 mm (10.8 in) |
| Z Axis Travel | 1,750 mm (68.9 in) |
| Y Axis Travel | ±50 mm (±2.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 4,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 1,540 mm (60.6 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 85 mm (3.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 5.4 x 2.5 x 2.4 m (212.6 x 98.4 x 94.5 in) |
| Machine Weight | 7,800 kg (17,196 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Y axis of ±50 mm (±2.0 in) on a 1,750 mm (68.9 in) Z travel
- Turning length of 1,540 mm (60.6 in) with matching tailstock body travel
- Rotary tools at 4,000 rpm, 12-station BMT/VDI turret
- Steady rest and gear box on the optional accessories list
- Z rapid traverse of 24 m/min (945 in/min)
Limitations
- Turning diameter of 420 mm (16.5 in) on a 7,800 kg (17,196 lb) machine
- 2.5 m wide and 2.4 m high
- Rotary tool motor limited to 3.7/5.5 kW (5.0/7.4 hp)
- Tailstock quill is 85 mm (3.3 in), slimmer than on the UT-300LX
Best For
Frequently Asked Questions
01
X travel is 275 mm (10.8 in), Z travel 1,750 mm (68.9 in) and Y travel ±50 mm (±2.0 in). Rapid traverse is 20 m/min (787 in/min) in X, 24 m/min (945 in/min) in Z and 10 m/min (394 in/min) in Y.
02
The UT-300LX is a two-axis lathe with a BOT turret, a 500 mm (19.7 in) turning diameter and 7,500 kg (16,534 lb) of weight. The UT-300LXY has rotary tools and a Y axis, turns 420 mm (16.5 in) and weighs 7,800 kg (17,196 lb). Z travel is 1,750 mm (68.9 in) on both.
03
Yes. The UT-300LX2Y has 2,150 mm (84.6 in) of Z travel and a turning length of 2,040 mm (80.3 in) in its A2-8 columns, at a weight of 9,900 kg (21,825 lb).
04
Swing over bed is 910 mm (35.8 in) and swing over saddle 720 mm (28.3 in). The maximum turning diameter is smaller, 420 mm (16.5 in), because the turret and its tools set the limit, not the bed.
