Accuway UT-600L

Q: How much does the Accuway UT-600L cost?

The price estimate for the Accuway UT-600L is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-600l#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

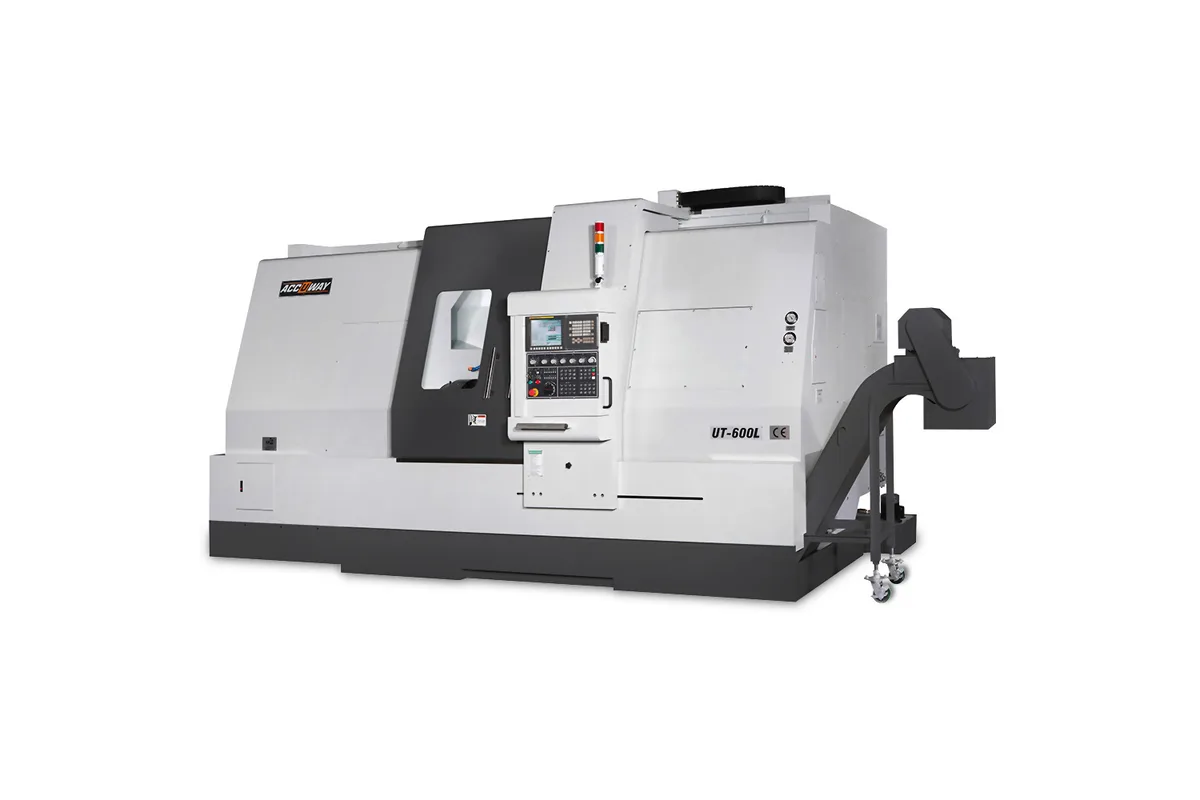

Accuway UT-600L super heavy duty turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

1,500 / 850 / 800 / 400 / 300 rpm

Spindle Power

Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45 kW (49.6/60.3 hp) + 2-step gearbox

Max Turn Length

1,300 mm (51.2 in)

control

FANUC 0i-T

swing over bed

1,030 mm (40.6 in)

swing over saddle

950 mm (37.4 in)

How much does the Accuway UT-600L cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-600L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A 32 in chuck and a spindle bore of 375 mm (14.8 in): the Accuway UT-600L is a lathe for very large hollow work. Maximum turning diameter is 900 mm (35.4 in) and the swing over bed 1,030 mm (40.6 in).

Five spindle columns are tabled. Three use an A2-15 nose, with bores of 205 mm (8.1 in), 235 mm (9.3 in) and 258 mm (10.2 in) and speeds of 1,500 rpm, 850 rpm and 800 rpm. Two use an A2-20 nose with a 32 in chuck: a 320 mm (12.6 in) bore at 400 rpm and a 375 mm (14.8 in) bore at 300 rpm. The motor is the same throughout, 30/37 kW (40.2/49.6 hp) with a 2-step gearbox. At 300 rpm that power becomes a great deal of torque, which is what facing a large flange or threading large-diameter casing needs.

This is the short bed of the series, with 1,500 mm (59.1 in) of Z travel and a 1,300 mm (51.2 in) turning length. X travel is 495 mm (19.5 in), more than on the UT-400L at 380 mm (15.0 in). Rapids are 20 m/min (787 in/min) in X and 24 m/min (945 in/min) in Z.

Despite the larger swing, the listed weight of 14,500 kg (31,966 lb) is close to the UT-400L, and the length is the same 6.2 m; the machine is taller at 3 m. The 12-station BOT turret and the 160 mm (6.3 in) MT#6 tailstock quill are shared with the UT-400 line. Steady rest and APT 60 power turret are optional.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	1,030 mm (40.6 in)
Swing Over Saddle	950 mm (37.4 in)
Max Turning Diameter	900 mm (35.4 in)
Max Turning Length	1,300 mm (51.2 in)
Guideway Type	Box
Spindle Nose	A2-15 / A2-15 / A2-15 / A2-20 / A2-20
Chuck Size	20 / 20 / 24 / 32 / 32 in
Spindle Bore	205 / 235 / 258 / 320 / 375 mm (8.1 / 9.3 / 10.2 / 12.6 / 14.8 in)
Max Spindle Speed	1,500 / 850 / 800 / 400 / 300 rpm
Spindle Motor Power	Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45 kW (49.6/60.3 hp) + 2-step gearbox
X Axis Travel	495 mm (19.5 in)
Z Axis Travel	1,500 mm (59.1 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	24 m/min (945 in/min)
Turret Tooling	BOT
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	32 mm (1.3 in)
Round Tool Shank	50 mm (2.0 in)
Tailstock Body Travel	1,350 mm (53.1 in)
Tailstock Quill Travel	150 mm (5.9 in)
Tailstock Quill Diameter	160 mm (6.3 in)
Tailstock Quill Taper	MT#6
Machine Dimensions	L x W x H: 6.2 x 2.9 x 3 m (244.1 x 114.2 x 118.1 in)
Machine Weight	14,500 kg (31,966 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

900 mm (35.4 in) maximum turning diameter
A2-20 spindle with a 32 in chuck and bores of 320 mm (12.6 in) or 375 mm (14.8 in)
X-axis travel of 495 mm (19.5 in)
30/37 kW (40.2/49.6 hp) with a 2-step gearbox as standard
Z rapid traverse of 24 m/min (945 in/min)

Limitations

300 rpm maximum with the 375 mm (14.8 in) bore
Turning length limited to 1,300 mm (51.2 in)
3 m high and 14,500 kg (31,966 lb)
Driven tools only with the optional APT 60 power turret

Best For

Large-diameter casing and line pipe ends Flanges, rings and wheels up to 900 mm Big valve bodies and wellhead parts Short, heavy rolls and drums

Frequently Asked Questions

01 What is the largest spindle bore on the Accuway UT-600L?

375 mm (14.8 in), in the fifth column, with an A2-20 nose, a 32 in chuck and a maximum speed of 300 rpm. The other columns give 205 mm (8.1 in), 235 mm (9.3 in), 258 mm (10.2 in) and 320 mm (12.6 in).

02 How does the UT-600L compare with the UT-400L?

The UT-400L turns 700 mm (27.6 in), has 380 mm (15.0 in) of X travel and bores up to 258 mm (10.2 in). The UT-600L turns 900 mm (35.4 in), has 495 mm (19.5 in) of X travel and bores up to 375 mm (14.8 in). Both have 1,500 mm (59.1 in) of Z travel and the same motor rating.

03 What turning length does the UT-600L have?

1,300 mm (51.2 in), with a Z-axis travel of 1,500 mm (59.1 in). The tailstock body travels 1,350 mm (53.1 in) and the quill 150 mm (5.9 in). Longer beds in the series are the UT-600LX2, UT-600LX3 and UT-600LX4.

04 What is the size and weight of the UT-600L?

6.2 x 2.9 x 3 m (244.1 x 114.2 x 118.1 in) as length, width and height, and 14,500 kg (31,966 lb) net. Swing over saddle is 950 mm (37.4 in).
