Accuway UT-300LSY

Q: How much does the Accuway UT-300LSY cost?

The price estimate for the Accuway UT-300LSY is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-300lsy#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

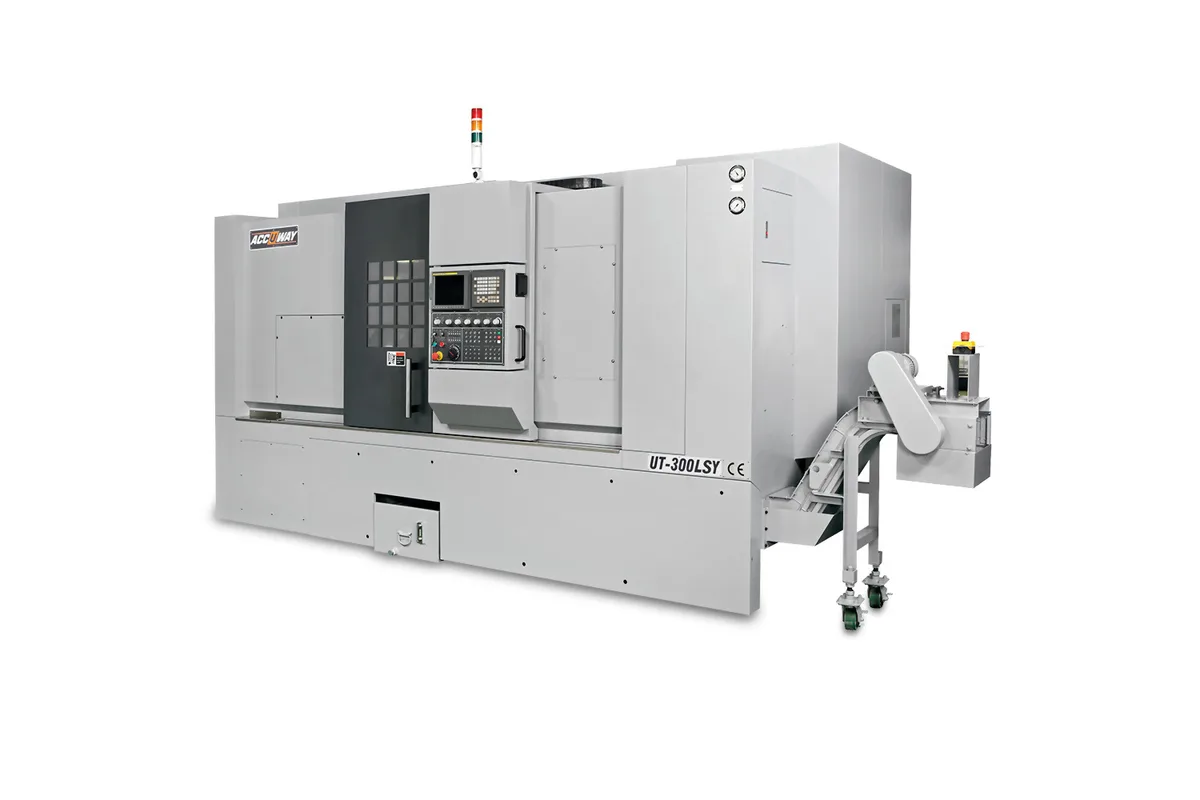

Accuway UT-300LSY slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

3,500 / 2,700 / 2,500 / 2,000 rpm

Spindle Power

Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)

Max Turn Length

1,040 / 1,040 / 970 / 970 mm (40.9 / 40.9 / 38.2 / 38.2 in)

control

FANUC 0i-T

swing over bed

910 mm (35.8 in)

swing over saddle

720 mm (28.3 in)

How much does the Accuway UT-300LSY cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-300LSY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

For long parts that need milling off the centreline on both ends, Accuway builds the UT-300LSY. It has the 1,250 mm (49.2 in) Z travel of the long UT-300 beds, a second spindle that travels 1,200 mm (47.2 in) on its B axis, rotary tools, and a Y axis of ±50 mm (±2.0 in).

Its place in the range is easiest to see from its neighbours. The UT-300SY has the same axes on a 750 mm (29.5 in) Z travel. The UT-300LSM has the same length but no Y. This model is the only one with all of it, and at 6,700 kg (14,771 lb) it is the heaviest two-spindle UT-300.

Capacity: 420 mm (16.5 in) of turning diameter at SP1, 375 mm (14.8 in) at SP2, and a turning length of 1,040 mm (40.9 in) in the A2-8 columns or 970 mm (38.2 in) in the A2-11 columns. Swing over bed is 910 mm (35.8 in). The outline is 4.1 x 2.1 x 2.4 m (161.4 x 82.7 x 94.5 in).

The turret holds 12 tools on BMT/VDI tooling and drives them at 4,000 rpm with 3.7/5.5 kW (5.0/7.4 hp). Y moves at 10 m/min (394 in/min). On the main side the motor is 15/18.5 kW (20.1/24.8 hp) and speeds range from 3,500 rpm to 2,000 rpm by column; the second spindle reaches 6,000 rpm or 5,000 rpm on 5.5/7.5 kW (7.4/10.1 hp). A gear box and a bar feeder are optional accessories.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	910 mm (35.8 in)
Swing Over Saddle	720 mm (28.3 in)
Max Turning Diameter Sp1	420 mm (16.5 in)
Max Turning Diameter Sp2	375 mm (14.8 in)
Max Turning Length	1,040 / 1,040 / 970 / 970 mm (40.9 / 40.9 / 38.2 / 38.2 in)
Guideway Type	Box
Spindle Nose	A2-8 / A2-8 / A2-11 / A2-11
Chuck Size	10 / 12 / 15 / 15 in
Bar Capacity	75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in)
Max Spindle Speed	3,500 / 2,700 / 2,500 / 2,000 rpm
Spindle Motor Power	Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)
Spindle 2 Nose	A2-5
Spindle 2 Chuck Size	6 / 6 / 8 / 8 in
Spindle 2 Bar Capacity	44 mm (1.7 in)
Spindle 2 Speed	6,000 / 6,000 / 5,000 / 5,000 rpm
Spindle 2 Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
X Axis Travel	275 mm (10.8 in)
Z Axis Travel	1,250 mm (49.2 in)
Y Axis Travel	±50 mm (±2.0 in)
B Axis Travel	1,200 mm (47.2 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	24 m/min (945 in/min)
Rapid Traverse Y	10 m/min (394 in/min)
Rapid Traverse B	20 m/min (787 in/min)
Turret Tooling	BMT/VDI
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	25 mm (1.0 in)
Round Tool Shank	40 mm (1.6 in)
Rotary Tool Speed	4,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Machine Dimensions	L x W x H: 4.1 x 2.1 x 2.4 m (161.4 x 82.7 x 94.5 in)
Machine Weight	6,700 kg (14,771 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Y axis, rotary tools and second spindle on a 1,250 mm (49.2 in) Z travel
B-axis travel of 1,200 mm (47.2 in) for long part hand-over
Turning length of 1,040 mm (40.9 in) in the A2-8 columns
910 mm (35.8 in) swing over bed
Gear box and bar feeder listed as options

Limitations

Turning diameter is 420 mm (16.5 in) at SP1 and 375 mm (14.8 in) at SP2
6,700 kg (14,771 lb) and 2.4 m high
A single 12-station turret covers both spindles
No tailstock rows; the second spindle is the only far-end support

Best For

Long shafts with off-centre features at both ends Cylinder and actuator parts machined complete Long bar parts with milled flats and back-side drilling Shops consolidating shaft turning and milling

Frequently Asked Questions

01 What does the Accuway UT-300LSY add over the UT-300LSM?

A Y axis. The UT-300LSM has none; the UT-300LSY has ±50 mm (±2.0 in) of Y travel at 10 m/min (394 in/min). It is also larger and heavier, 6,700 kg (14,771 lb) against 6,200 kg (13,668 lb) for the UT-300LSM, and uses BMT/VDI tooling where the UT-300LSM lists BMT-65.

02 What are the travels of the UT-300LSY?

X-axis travel is 275 mm (10.8 in), Z-axis travel 1,250 mm (49.2 in), Y-axis travel ±50 mm (±2.0 in) and B-axis travel 1,200 mm (47.2 in). X and B rapid at 20 m/min (787 in/min), Z at 24 m/min (945 in/min).

03 How big a part fits the UT-300LSY?

Maximum turning diameter is 420 mm (16.5 in) at SP1 and 375 mm (14.8 in) at SP2. Maximum turning length is 1,040 mm (40.9 in) with an A2-8 main spindle and 970 mm (38.2 in) with A2-11. Main spindle bar capacity ranges from 75 mm (3.0 in) to 116.5 mm (4.6 in).

04 What floor space does the UT-300LSY need?

The machine is 4.1 x 2.1 x 2.4 m (161.4 x 82.7 x 94.5 in) as length, width and height and weighs 6,700 kg (14,771 lb). A bar feeder, where fitted, extends the line behind the main spindle.
