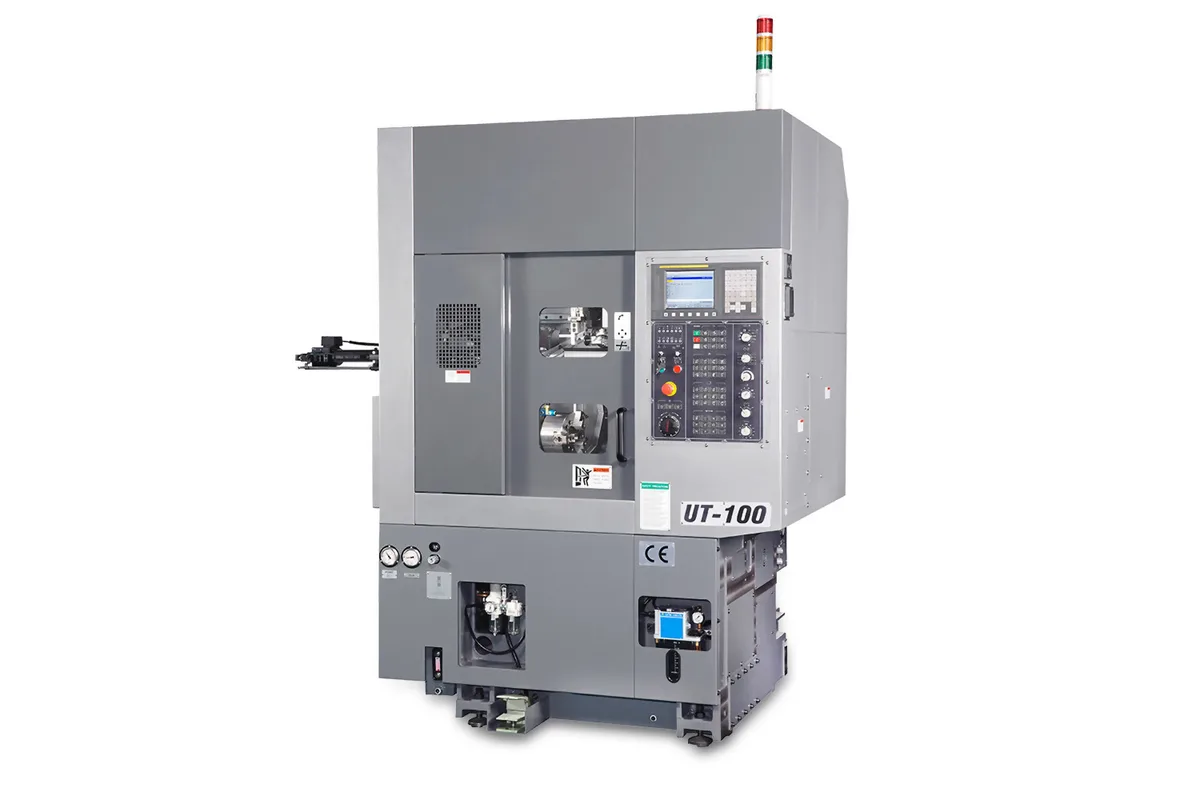

Accuway UT-100
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-100 cost?
Price estimate
We do not have a price for the Accuway UT-100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-100 is a small chucker that loads itself. A two-axis lathe with a 6 in chuck is combined with a built-in gantry loader, in a cell 1.7 m long that weighs 1,900 kg (4,189 lb). Accuway lists it under integrated loader lathes.
The loader defines what parts suit the machine. Its material rows read 10~60 mm (0.4~2.4 in) in diameter and 20~100 mm (0.8~3.9 in) in length, and the weight row reads One side: 0.5/1 kg (1/2 lb). These are small slugs, forgings and sawn blanks. The loader's two axes each have a 360 mm (14.2 in) stroke and move at 84 m/min (3,307 in/min), several times faster than the lathe's own slides, so the exchange takes little of the cycle.
The lathe itself can turn more than the loader can carry. Maximum turning diameter is 180 mm (7.1 in) and turning length 175 mm (6.9 in), on travels of 120 mm (4.7 in) in X and 230 mm (9.1 in) in Z. The spindle is A2-5, 6,000 rpm, with a 5.5/7.5 kW (7.4/10.1 hp) motor and a 30 mm (1.2 in) bar capacity. Twelve stations take 20 mm (0.8 in) square and 32 mm (1.3 in) round shanks.
There are no rotary tools on this version; the UT-100M adds them. No tailstock is listed, which fits short chucking work. A 15 bar high pressure coolant system and a tool setter are optional. Guideways are box type.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 380 mm (15.0 in) |
| Swing Over Saddle | 320 mm (12.6 in) |
| Max Turning Diameter | 180 mm (7.1 in) |
| Max Turning Length | 175 mm (6.9 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 |
| Chuck Size | 6 in |
| Bar Capacity | 30 mm (1.2 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | 120 mm (4.7 in) |
| Z Axis Travel | 230 mm (9.1 in) |
| Rapid Traverse X | 12 m/min (472 in/min) |
| Rapid Traverse Z | 18 m/min (709 in/min) |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Machine Dimensions | L x W x H: 1.7 x 1.6 x 2.2 m (66.9 x 63.0 x 86.6 in) |
| Machine Weight | 1,900 kg (4,189 lb) |
| Loader Material Diameter | 10~60 mm (0.4~2.4 in) |
| Loader Material Length | 20~100 mm (0.8~3.9 in) |
| Loader Material Weight | One side: 0.5/1 kg (1/2 lb) |
| Loader Z Stroke | 360 mm (14.2 in) |
| Loader Z Rapid Traverse | 84 m/min (3,307 in/min) |
| Loader Y Stroke | 360 mm (14.2 in) |
| Loader Y Rapid Traverse | 84 m/min (3,307 in/min) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Integrated loader with 84 m/min (3,307 in/min) rapid traverse on both axes
- Cell footprint of 1.7 x 1.6 x 2.2 m (66.9 x 63.0 x 86.6 in)
- 6,000 rpm A2-5 spindle with 5.5/7.5 kW (7.4/10.1 hp)
- 12 tool stations on box guideways
- Turning diameter of 180 mm (7.1 in) for a 6 in chuck
Limitations
- Loader handles material of 10~60 mm (0.4~2.4 in) diameter only
- No rotary tools on this model
- Z travel of 230 mm (9.1 in) rules out shaft work
- X rapid traverse of 12 m/min (472 in/min)
Best For
Frequently Asked Questions
01
The material dimension rows give a diameter of 10~60 mm (0.4~2.4 in), a length of 20~100 mm (0.8~3.9 in) and a weight of One side: 0.5/1 kg (1/2 lb). Loader strokes are 360 mm (14.2 in) in both its Z and Y axes.
02
Maximum turning diameter is 180 mm (7.1 in) and maximum turning length 175 mm (6.9 in). Swing over bed is 380 mm (15.0 in), swing over saddle 320 mm (12.6 in). X travel is 120 mm (4.7 in) and Z travel 230 mm (9.1 in).
03
The UT-100E has the same spindle and travels but no loader rows; its options list a bar feeder and a parts catcher instead, and it weighs 1,800 kg (3,968 lb). The UT-100 has the integrated loader and weighs 1,900 kg (4,189 lb).
04
An A2-5 nose with a 6 in chuck, 30 mm (1.2 in) bar capacity and a maximum speed of 6,000 rpm. The motor is 5.5/7.5 kW (7.4/10.1 hp) in continuous and short-time ratings.
