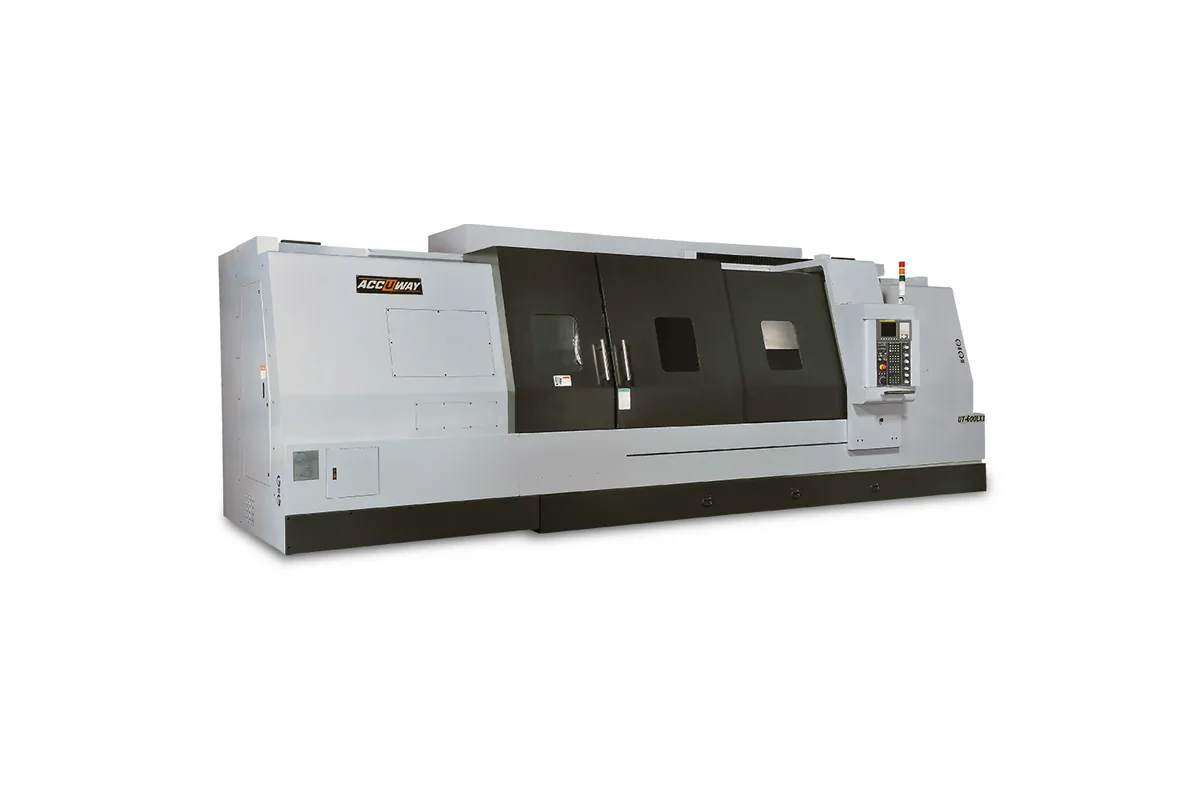

Accuway UT-600LX3
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-600LX3 cost?
Price estimate
We do not have a price for the Accuway UT-600LX3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For parts both wide and long, Accuway offers the UT-600LX3: 900 mm (35.4 in) of turning diameter along 2,900 mm (114.2 in) of turning length. Z travel is 3,100 mm (122.0 in).
Among Accuway's three-metre lathes it has the largest cross-section by a wide margin. The UT-400LX3 turns 700 mm (27.6 in) with 380 mm (15.0 in) of X travel. This machine has 495 mm (19.5 in) of X travel and a saddle swing of 950 mm (37.4 in). The two share a motor rating and a tailstock, so the UT-600LX3 should be chosen for diameter and bore, not for extra power.
A large roll shows why the saddle swing matters. If the barrel is 900 mm across and the journals are small, the tool must pass along the barrel and then reach in to the journals at each end. With the swing over saddle nearly equal to the turning diameter, the cross slide can travel under the barrel for the full length.
The drive is 30/37 kW (40.2/49.6 hp) with a 2-step gearbox, and 37/45 kW (49.6/60.3 hp) is printed in brackets. Speeds fall from 1,500 rpm in the first A2-15 column to 300 rpm in the last A2-20 column. Z rapid traverse is 10 m/min (394 in/min). The machine is 8 m long, 3 m high and listed at 19,000 kg (41,887 lb). Tailstock body travel is 2,950 mm (116.1 in).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 1,030 mm (40.6 in) |
| Swing Over Saddle | 950 mm (37.4 in) |
| Max Turning Diameter | 900 mm (35.4 in) |
| Max Turning Length | 2,900 mm (114.2 in) |
| Guideway Type | Box |
| Spindle Nose | A2-15 / A2-15 / A2-15 / A2-20 / A2-20 |
| Chuck Size | 20 / 20 / 24 / 32 / 32 in |
| Spindle Bore | 205 / 235 / 258 / 320 / 375 mm (8.1 / 9.3 / 10.2 / 12.6 / 14.8 in) |
| Max Spindle Speed | 1,500 / 850 / 800 / 400 / 300 rpm |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45 kW (49.6/60.3 hp) + 2-step gearbox |
| X Axis Travel | 495 mm (19.5 in) |
| Z Axis Travel | 3,100 mm (122.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 10 m/min (394 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 2,950 mm (116.1 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 160 mm (6.3 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 8 x 2.9 x 3 m (315.0 x 114.2 x 118.1 in) |
| Machine Weight | 19,000 kg (41,887 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 900 mm (35.4 in) turning diameter with 2,900 mm (114.2 in) of turning length
- Swing over saddle of 950 mm (37.4 in)
- A2-20 columns with a 32 in chuck and up to a 375 mm (14.8 in) bore
- 495 mm (19.5 in) of X travel
- MT#6 tailstock with 2,950 mm (116.1 in) of body travel
Limitations
- Z rapid traverse of 10 m/min (394 in/min)
- Same 30/37 kW (40.2/49.6 hp) motor as the smaller UT-400 line
- 8 x 2.9 x 3 m (315.0 x 114.2 x 118.1 in) and 19,000 kg (41,887 lb)
- Steady rest and power turret are optional accessories
Best For
Frequently Asked Questions
01
Up to 900 mm (35.4 in) in turning diameter and 2,900 mm (114.2 in) in turning length. Swing over bed is 1,030 mm (40.6 in) and swing over saddle 950 mm (37.4 in). Z-axis travel is 3,100 mm (122.0 in).
02
Both have 3,100 mm (122.0 in) of Z travel and a 30/37 kW (40.2/49.6 hp) geared spindle. The UT-400LX3 turns 700 mm (27.6 in) and weighs 17,000 kg (37,478 lb); the UT-600LX3 turns 900 mm (35.4 in) and weighs 19,000 kg (41,887 lb).
03
1,500 rpm, 850 rpm and 800 rpm in the three A2-15 columns, then 400 rpm and 300 rpm in the two A2-20 columns. The spindle hole diameter grows from 205 mm (8.1 in) to 375 mm (14.8 in) across the five columns.
04
The optional accessories include a 15" Colored LCD monitor, tool setter, oil mist collector, A2-15 spindle headstocks with 235 mm or 258 mm spindle through holes, an APT 60 power turret with CS contouring control or CF Axis Control, steady rest, linear scale and auto door.
