Accuway UT-200S

Q: How much does the Accuway UT-200S cost?

The price estimate for the Accuway UT-200S is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-200s#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

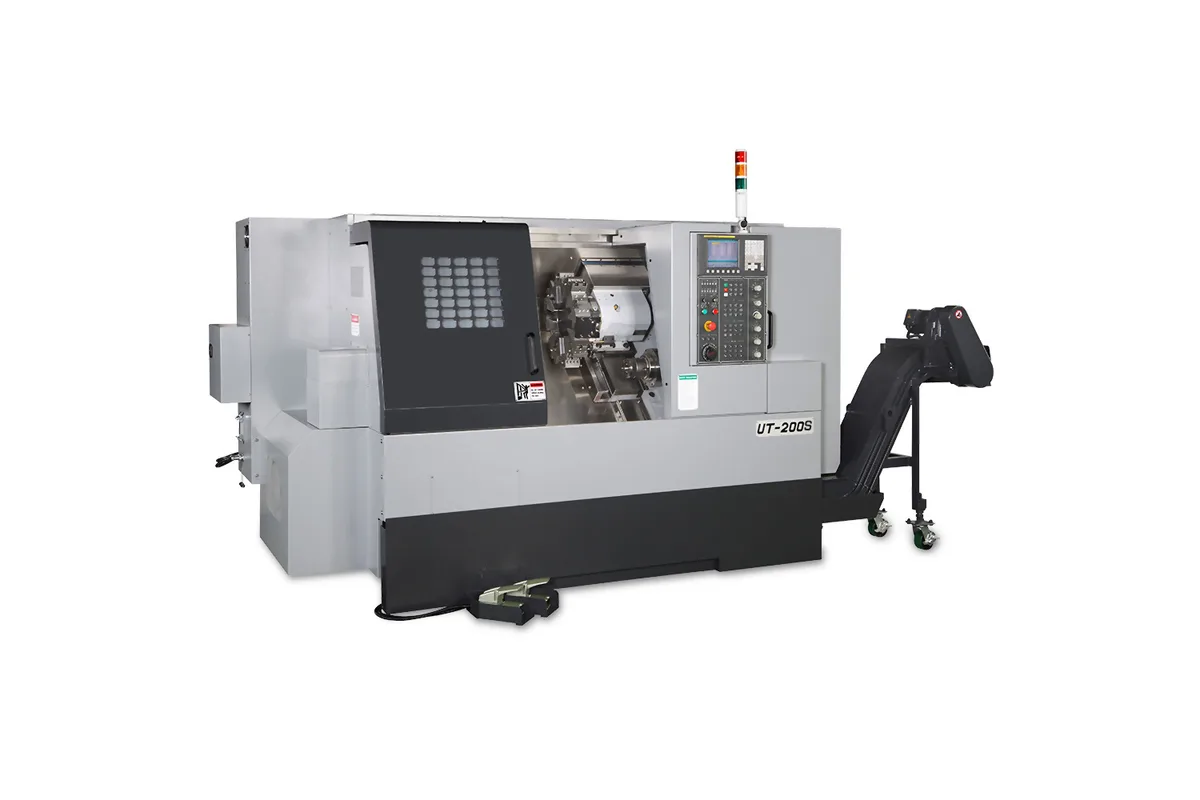

Accuway UT-200S / UT-200SM slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 / 4,500 / 4,000 / 3,500 rpm

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

Max Turn Length

480 / 480 / 480 / 400 mm (18.9 / 18.9 / 18.9 / 15.7 in)

control

FANUC 0i-T

swing over bed

505 mm (19.9 in)

swing over saddle

318 mm (12.5 in)

How much does the Accuway UT-200S cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-200S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accuway UT-200S replaces the tailstock of the UT-200 with a second spindle. Accuway files it under single turret, two spindle lathes: one turret works at the main spindle, the part is handed across, and the same turret finishes the back.

The second spindle has an A2-5 nose, a 44 mm (1.7 in) bar capacity and a 5.5/7.5 kW (7.4/10.1 hp) motor. It moves on an axis the table calls B, with 585 mm (23.0 in) of travel at 20 m/min (787 in/min), which is how it reaches the main chuck for the transfer. Its chuck is 6 in at 6,000 rpm in the first two columns of the table and 8 in at 5,000 rpm in the last two.

Those columns are the main spindle choices. As on the other UT-200 models they run A2-5, A2-6, A2-6 and A2-8, with 6, 8, 8 and 10 in chucks, bar capacities of 44, 52, 65 and 75 mm and speeds of 6,000, 4,500, 4,000 and 3,500 rpm, all on an 11/15 kW (14.8/20.1 hp) motor.

Maximum turning diameter is given per spindle: 250 mm (9.8 in) at SP1 and 220 mm (8.7 in) at SP2. Turning length is 480 mm (18.9 in), or 400 mm (15.7 in) in the A2-8 column. The turret has 12 stations with BOT tooling and no rotary tools. That makes this the model for parts that need turning on both ends and nothing else. It weighs 4,000 kg (8,818 lb).

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	505 mm (19.9 in)
Swing Over Saddle	318 mm (12.5 in)
Max Turning Diameter Sp1	250 mm (9.8 in)
Max Turning Diameter Sp2	220 mm (8.7 in)
Max Turning Length	480 / 480 / 480 / 400 mm (18.9 / 18.9 / 18.9 / 15.7 in)
Guideway Type	Box
Spindle Nose	A2-5 / A2-6 / A2-6 / A2-8
Chuck Size	6 / 8 / 8 / 10 in
Bar Capacity	44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in)
Max Spindle Speed	6,000 / 4,500 / 4,000 / 3,500 rpm
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
Spindle 2 Nose	A2-5
Spindle 2 Chuck Size	6 / 6 / 8 / 8 in
Spindle 2 Bar Capacity	44 mm (1.7 in)
Spindle 2 Speed	6,000 / 6,000 / 5,000 / 5,000 rpm
Spindle 2 Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
X Axis Travel	220 mm (8.7 in)
Z Axis Travel	600 mm (23.6 in)
B Axis Travel	585 mm (23.0 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	20 m/min (787 in/min)
Rapid Traverse B	20 m/min (787 in/min)
Turret Tooling	BOT
Turret Drive	Hydraulic/Servo
Turret Stations	12
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Machine Dimensions	L x W x H: 3.2 x 1.6 x 1.8 m (126.0 x 63.0 x 70.9 in)
Machine Weight	4,000 kg (8,818 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Second spindle for back-end turning without a manual flip
B-axis travel of 585 mm (23.0 in) at 20 m/min (787 in/min) for part transfer
Second spindle runs to 6,000 rpm on 5.5/7.5 kW (7.4/10.1 hp)
12-station turret in every spindle configuration
Main spindle offered from A2-5 to A2-8 with up to 75 mm (3.0 in) bar capacity

Limitations

No tailstock rows in the table, so no centre support for long shafts
BOT turret without rotary tools
Second spindle bar capacity is 44 mm (1.7 in) whichever main spindle is chosen
One turret serves both spindles, so the two ends are not cut at the same time

Best For

Parts turned on both ends in one cycle Bar work with cut-off and back finishing on the second spindle Bushings, fittings and couplings up to 250 mm in diameter Unattended running with a bar feeder and parts catcher, both optional

Frequently Asked Questions

01 What is the second spindle on the Accuway UT-200S?

An A2-5 spindle with a 44 mm (1.7 in) bar capacity and a 5.5/7.5 kW (7.4/10.1 hp) motor. The chuck is 6 in at 6,000 rpm or 8 in at 5,000 rpm, depending on the column. It travels 585 mm (23.0 in) on the B axis.

02 Does the UT-200S have live tooling?

No. Its tooling system is BOT and the rotary tool rows are blank. The UT-200SM, on the same page, has a BMT/VDI turret with rotary tools at 6,000 rpm, and the UT-200SY adds a Y axis as well.

03 What turning diameter and length does the UT-200S offer?

Maximum turning diameter is 250 mm (9.8 in) at the first spindle and 220 mm (8.7 in) at the second. Maximum turning length is 480 mm (18.9 in), or 400 mm (15.7 in) with the A2-8 main spindle. X travel is 220 mm (8.7 in) and Z travel 600 mm (23.6 in).

04 How big is the UT-200S?

3.2 x 1.6 x 1.8 m (126.0 x 63.0 x 70.9 in) and 4,000 kg (8,818 lb). The UT-200, the tailstock version, is 2.9 m long and weighs 3,600 kg (7,937 lb).
