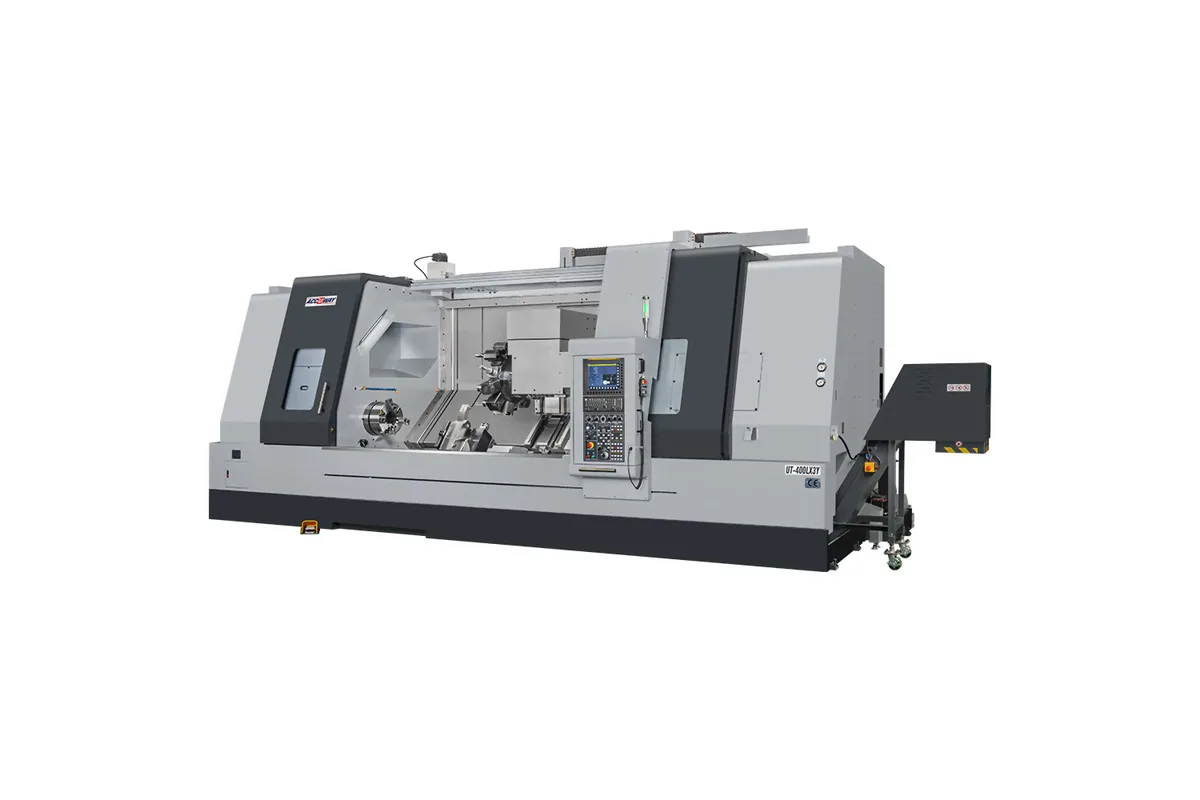

Accuway UT-400LX3Y
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-400LX3Y cost?
Price estimate
We do not have a price for the Accuway UT-400LX3Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Milling on a three-metre heavy lathe is the purpose of the Accuway UT-400LX3Y. It has a Y axis of ±75 mm (±3.0 in), a BMT-85 turret with rotary tools at 4,000 rpm, and a rotary tool motor of 7.5/11 kW (10.1/14.8 hp).
Those figures change what can be done on the part. With that power at the tool and Y stroke on both sides of centre, keyways in large shafts, flats on roll journals and bolt patterns on big flanges are milling jobs of normal size, not light finishing passes. The BMT-85 interface is correspondingly large.
Z travel is 3,100 mm (122.0 in) and turning length 2,900 mm (114.2 in), a little less than the two-axis UT-400LX3 at 2,980 mm (117.3 in). Turning diameter is 700 mm (27.6 in). The Y-axis structure raises the swing over bed to 1,200 mm (47.2 in) and the swing over saddle to 1,040 mm (40.9 in), and the machine to 3.0 m in height and 19,000 kg (41,887 lb). Z rapid traverse is 6 m/min (236 in/min), slower than the UT-400LX3's 10 m/min (394 in/min).
The spindle row repeats the UT-400 choices: 30/37 kW (40.2/49.6 hp) with a 2-step gearbox, noses A2-11 and A2-15, bores from 131 mm (5.2 in) to 258 mm (10.2 in). Chuck sizes are printed only for the first two columns, 15 in and 20 in. Accuway's page for this model carries no accessory lists, so standard and optional equipment have to come from the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 1,200 mm (47.2 in) |
| Swing Over Saddle | 1,040 mm (40.9 in) |
| Max Turning Diameter | 700 mm (27.6 in) |
| Max Turning Length | 2,900 mm (114.2 in) |
| Guideway Type | Box |
| Spindle Nose | A2-11 / A2-15 / A2-15 / A2-15 |
| Chuck Size | 15 / 20 / - / - in |
| Spindle Bore | 131 / 205 / 235 / 258 mm (5.2 / 8.1 / 9.3 / 10.2 in) |
| Max Spindle Speed | 2,000 / 1,500 / 850 / 800 rpm |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45 kW (49.6/60.3 hp) + 2-step gearbox |
| X Axis Travel | 380 mm (15.0 in) |
| Z Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | ±75 mm (±3.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 6 m/min (236 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Turret Tooling | BMT-85 |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Rotary Tool Speed | 4,000 rpm |
| Rotary Tool Power | 7.5/11 kW (10.1/14.8 hp) |
| Tailstock Body Travel | 2,950 mm (116.1 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 160 mm (6.3 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 7.9 x 2.7 x 3.0 m (311.0 x 106.3 x 118.1 in) |
| Machine Weight | 19,000 kg (41,887 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Y-axis travel of ±75 mm (±3.0 in) on a 3,100 mm (122.0 in) Z travel
- Rotary tool motor of 7.5/11 kW (10.1/14.8 hp) at 4,000 rpm
- BMT-85 turret with 12 stations
- 700 mm (27.6 in) turning diameter, 2,900 mm (114.2 in) turning length
- Spindle bores up to 258 mm (10.2 in)
Limitations
- Z rapid traverse of 6 m/min (236 in/min)
- 3.0 m high and 19,000 kg (41,887 lb)
- No standard or optional accessory list on the maker's page
- Chuck size not stated for the two largest bore columns
Best For
Frequently Asked Questions
01
A 12-station BMT-85 turret with servo mechanical drive, rotary tools at 4,000 rpm, a rotary tool motor of 7.5/11 kW (10.1/14.8 hp), and a Y axis with ±75 mm (±3.0 in) of travel at a rapid rate of 10 m/min (394 in/min).
02
The UT-400LX3 is a two-axis lathe with a BOT turret, a 900 mm (35.4 in) swing over bed and 17,000 kg (37,478 lb) of weight. The UT-400LX3Y adds Y and rotary tools, has a 1,200 mm (47.2 in) swing over bed and weighs 19,000 kg (41,887 lb).
03
Maximum turning diameter 700 mm (27.6 in), maximum turning length 2,900 mm (114.2 in), X travel 380 mm (15.0 in), Z travel 3,100 mm (122.0 in). The tailstock body travels 2,950 mm (116.1 in) and the quill is 160 mm (6.3 in) in diameter, MT#6.
04
The dimension row gives 7.9 x 2.7 x 3.0 m (311.0 x 106.3 x 118.1 in) as length, width and height. Net weight is 19,000 kg (41,887 lb). The 3.0 m height should be checked against crane hook clearance.
