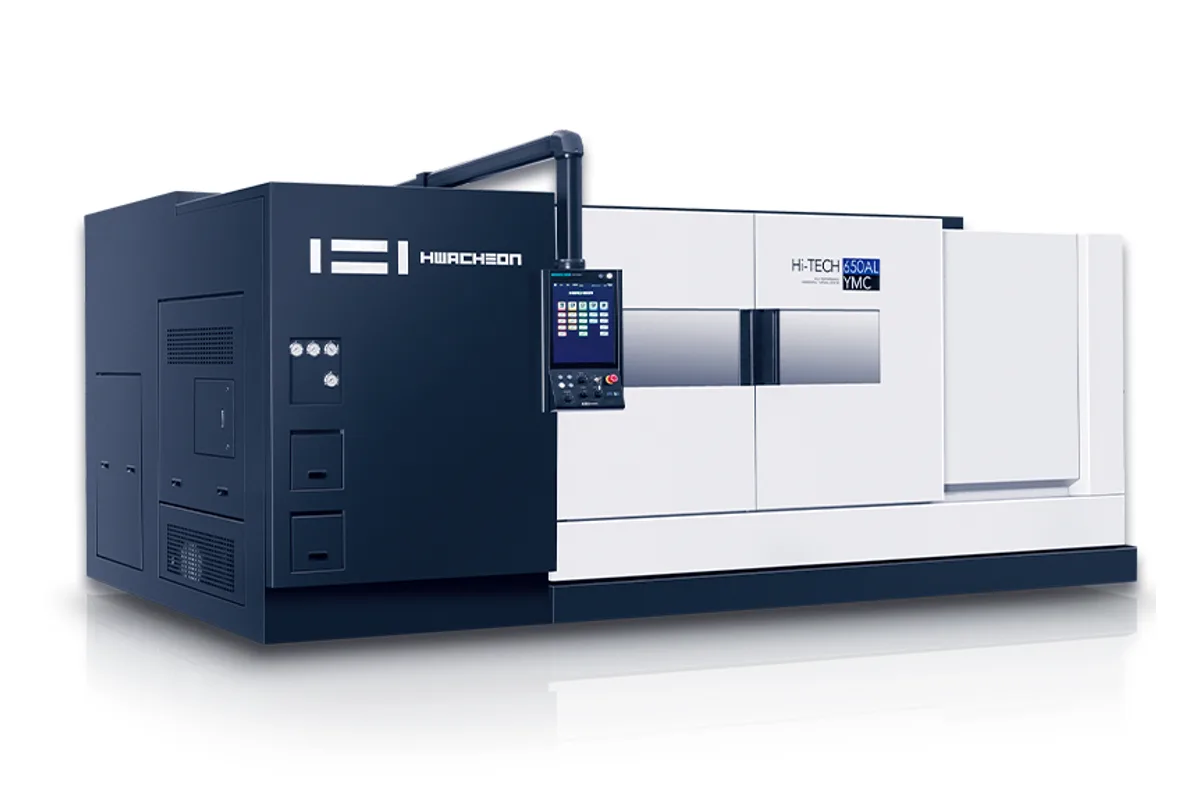

Hwacheon Hi-TECH 650

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

2,000 rpm, 1,800 rpm with 18 in chuck (A) / 1,500 rpm (B)

Rapid Traverse

X / Z 20 / 24 m/min (787 / 945 ipm); L Z 20 m/min (787 ipm); XL Z 10 m/min (394 ipm); Y 10 m/min (394 ipm) (YMC)

Spindle Power

A: 37 / 30 kW (49.6 / 40.2 hp) (Opt.: 50 / 40 kW); B: 45 / 37 kW (60.3 / 49.6 hp) (Opt.: 60 / 50 kW)

Max Turn Length

1,000 to 1,108 mm (39.4 to 43.6 in); L 2,000 to 2,108 mm (78.7 to 83.0 in); XL 3,100 to 3,208 mm (122.0 to 126.3 in)

swing over bed

Ø940 mm (Ø37.0 in)

swing over saddle

Ø620 mm (Ø24.4 in)

How much does the Hwacheon Hi-TECH 650 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon Hi-TECH 650 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon Hi-TECH 650 is a 12-station turning center offered with two headstocks and three bed lengths, and it is the first size in the Hi-TECH range with a Y-axis version. It turns up to Ø600 mm (Ø23.6 in) over a Ø940 mm (Ø37.0 in) swing, with Ø620 mm (Ø24.4 in) clearing the saddle.

The 650A and 650B are effectively two machines on one bed. The 650A carries a 15 in chuck (18 in optional) on an A2-11 nose, a Ø132 mm (Ø5.2 in) bore that passes Ø117 mm (Ø4.6 in) bar, and a 37 / 30 kW (49.6 / 40.2 hp) motor rated at 3,071 Nm (2,265 lb-ft). It runs to 2,000 rpm, or 1,800 rpm with the 18 in chuck. The 650B steps up to a 21 in chuck, an A2-15 nose, a Ø185 mm (Ø7.3 in) bore for Ø165 mm (Ø6.5 in) bar and 45 / 37 kW (60.3 / 49.6 hp) with 4,108 Nm (3,030 lb-ft), at the cost of a 1,500 rpm ceiling. Each has a stronger motor option: 50 / 40 kW on the A and 60 / 50 kW on the B.

Turning length depends on bed and version: 1,000 to 1,108 mm (39.4 to 43.6 in) on the standard bed, 2,000 to 2,108 mm (78.7 to 83.0 in) on the L and 3,100 to 3,208 mm (122.0 to 126.3 in) on the XL. X travel is 360 mm (14.2 in) at 20 m/min (787 ipm). Z rapid is 24 m/min (945 ipm) on the standard bed, 20 m/min (787 ipm) on the L and 10 m/min (394 ipm) on the XL.

The MC and YMC versions add driven tools in BMT 75 holders, 3,000 rpm from a 7.5 / 5.5 kW (10.1 / 7.4 hp) motor with an 11 / 7.5 kW option, and a C axis indexing in 0.0001° steps. The YMC adds ±80 mm (±3.1 in) of Y travel at 10 m/min (394 ipm), enough for off-centre holes and milled flats without a second setup. Supply is 75 kVA, and the coolant tank holds 250 L (66 US gal) on the standard bed, 300 L (79 US gal) on the L and 370 L (98 US gal) on the XL.

Full Specifications

Parameter	Value
Swing Over Bed	Ø940 mm (Ø37.0 in)
Swing Over Saddle	Ø620 mm (Ø24.4 in)
Max Turning Diameter	Ø600 mm (Ø23.6 in)
Standard Turning Diameter	Ø274.7 mm (Ø10.8 in)
Max Turning Length	1,000 to 1,108 mm (39.4 to 43.6 in); L 2,000 to 2,108 mm (78.7 to 83.0 in); XL 3,100 to 3,208 mm (122.0 to 126.3 in)
Chuck Size	15 in (Opt.: 18 in) (650A) / 21 in (650B)
Spindle Nose	A2-11 (A) / A2-15 (B)
Max Spindle Speed	2,000 rpm, 1,800 rpm with 18 in chuck (A) / 1,500 rpm (B)
Spindle Bore	Ø132 / Ø185 mm (Ø5.2 / Ø7.3 in) (A / B)
Bar Capacity	Ø117 / Ø165 mm (Ø4.6 / Ø6.5 in) (A / B)
Spindle Bearing Front ID	Ø180 / Ø240 mm (Ø7.1 / Ø9.4 in) (A / B)
Spindle Motor Power	A: 37 / 30 kW (49.6 / 40.2 hp) (Opt.: 50 / 40 kW); B: 45 / 37 kW (60.3 / 49.6 hp) (Opt.: 60 / 50 kW)
Spindle Torque	3,071 Nm (2,265 lb-ft) (A) / 4,108 Nm (3,030 lb-ft) (B)
Turret Stations	12
Tool Shank Size	□32 mm × Ø60 mm boring bar
Turret Index Time	Index: 1.8 / Rotation: 0.5 sec
Rapid Traverse Rate	X / Z 20 / 24 m/min (787 / 945 ipm); L Z 20 m/min (787 ipm); XL Z 10 m/min (394 ipm); Y 10 m/min (394 ipm) (YMC)
X Axis Travel	360 mm (14.2 in)
Y Axis Travel	±80 mm (±3.1 in) (YMC)
Z Axis Travel	1,200 mm (47.2 in); L 2,200 mm (86.6 in); XL 3,300 mm (129.9 in)
Tailstock Travel	1,150 mm (45.3 in); L 2,150 mm (84.6 in); XL 3,250 mm (128.0 in)
Tailstock Cylinder Diameter	Ø120 mm (Ø4.7 in)
Tailstock Quill Travel	150 mm (5.9 in)
Tailstock Quill Taper	MT #5
Live Tool Motor	7.5 / 5.5 kW (10.1 / 7.4 hp) (Opt.: 11 / 7.5 kW) (MC / YMC)
Live Tool Speed Max	3,000 rpm (MC / YMC)
Live Tool Capacity	End mill Ø32 mm / ER 40 collet
Live Tool Holder	BMT 75
C Axis Indexing	0.0001°
Coolant Tank	250 L (66 US gal); L 300 L (79 US gal); XL 370 L (98 US gal)
Power Requirement	75 kVA
Machine Dimensions	6,130 x 2,160 x 2,600 mm (241.3 x 85.0 x 102.4 in); L 7,130 mm (280.7 in), XL 8,430 mm (331.9 in) long
CNC Control	FANUC 0i-TF Plus

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

Choice of headstock: 650A with a 2,000 rpm A2-11 spindle, or 650B with a Ø185 mm (Ø7.3 in) bore and 4,108 Nm (3,030 lb-ft)
YMC version adds ±80 mm (±3.1 in) of Y travel to the driven tools and C axis
Optional motor upgrades to 50 / 40 kW (650A) or 60 / 50 kW (650B)
Three beds give up to 3,100 to 3,208 mm (122.0 to 126.3 in) of turning length on the XL
BMT 75 driven tool holders with an optional 11 / 7.5 kW live tool motor

Limitations

The 650B gives up speed for its bore: 1,500 rpm against 2,000 rpm on the 650A
On the 650A the 18 in chuck option lowers the speed limit to 1,800 rpm
Z rapid falls to 10 m/min (394 ipm) on the XL bed
Driven tools reach 3,000 rpm, which limits small drills and end mills

Best For

Shafts and flanges up to Ø600 mm (Ø23.6 in) on a choice of three bed lengths Bar work up to Ø165 mm (Ø6.5 in) on the 650B Parts needing off-centre milling, using the YMC Y axis Heavy roughing with up to 4,108 Nm (3,030 lb-ft) on the 650B

Frequently Asked Questions

01 What is the difference between the Hi-TECH 650A and 650B?

The headstock. The 650A has a 15 in chuck (18 in optional), A2-11 nose, Ø132 mm (Ø5.2 in) bore, Ø117 mm (Ø4.6 in) bar, 37 / 30 kW (49.6 / 40.2 hp), 3,071 Nm (2,265 lb-ft) and 2,000 rpm. The 650B has a 21 in chuck, A2-15 nose, Ø185 mm (Ø7.3 in) bore, Ø165 mm (Ø6.5 in) bar, 45 / 37 kW (60.3 / 49.6 hp), 4,108 Nm (3,030 lb-ft) and 1,500 rpm.

02 Is there a Y-axis version?

Yes. The YMC version has ±80 mm (±3.1 in) of Y travel with a 10 m/min (394 ipm) Y rapid, on top of the driven tools and the C axis of the MC. Driven tools run to 3,000 rpm in BMT 75 holders and take end mills up to Ø32 mm in ER 40 collets.

03 How does the Hi-TECH 650 compare with the Hi-TECH 550?

The Hi-TECH 650 turns Ø600 mm (Ø23.6 in) against Ø590 mm (Ø23.2 in) on the Hi-TECH 550, and its 650A motor is 37 / 30 kW (49.6 / 40.2 hp) against 30 / 22 kW (40.2 / 29.5 hp). The Hi-TECH 550 has a 10-station turret with 12 as an option; the 650 has 12.

04 What bed lengths are available?

Three. Z travel is 1,200 mm (47.2 in), 2,200 mm (86.6 in) or 3,300 mm (129.9 in), and tailstock travel 1,150 mm (45.3 in), 2,150 mm (84.6 in) or 3,250 mm (128.0 in). The machine is 6,130 mm (241.3 in) long on the standard bed, 7,130 mm (280.7 in) on the L and 8,430 mm (331.9 in) on the XL.

05 What tooling does the turret take?

The 12-station turret takes □32 mm shanks and Ø60 mm boring bars. On the MC and YMC versions, driven positions use BMT 75 holders, end mills up to Ø32 mm and ER 40 collets.
