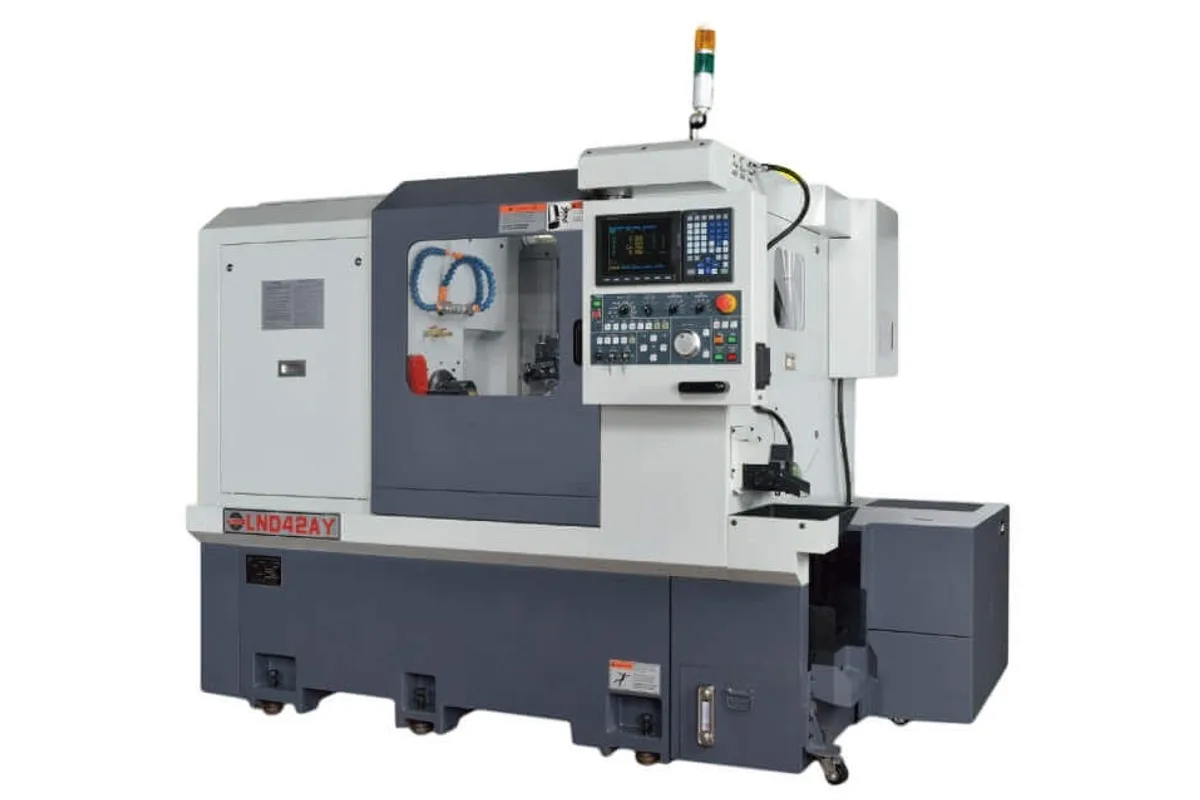

LICO LND-42AY
Image: licomachinery.com, LICO
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
bar capacity
max turning diameter
spindle center height
How much does the LICO LND-42AY cost?
Price estimate
We do not have a price for the LICO LND-42AY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The LICO LND-42AY is a single-spindle CNC turret lathe with a Y-axis slide and a live tool turret, built for bar up to 42 mm (1.7 in). LICO describes the LND-AY series as a machine for turn-mill work, and the Y axis is what separates it from a plain two-axis bar lathe: ±55 mm (±2.2 in), 110 mm (4.3 in) of travel across the spindle centreline.
That Y stroke is long for a lathe of this size. Together with 150 mm (5.9 in) of X and 300 mm (11.8 in) of Z, it lets a driven tool mill flats, cut off-centre holes and work keyways without a second setup. The spindle brake and dividing system is on the standard equipment list. Y is driven by a 1.48 kW (2.0 hp) servo, X and Z by 2.29 kW (3.1 hp) units.
Two turrets are named in the table. The 12-station turret is identified as a BARUFFALDI S12LT and the standard equipment list includes a tool turret with 12 stations and tool holders; the 8-station LICO S8LT appears under optional accessories. Travels are the same with either. Shanks are Ø25 mm round or □20 mm square.
The spindle is rated 9 kW (12.1 hp) and 5,000 rpm, with an ISO A2-5 nose and an F48 collet chuck as standard. A 6 in hollow power chuck is optional and raises the turning diameter to 165 mm (6.5 in), at a turning length of 280 mm (11 in). A parts catcher, a parts conveyor and an automatic bar feeder interface are standard. The hydraulic tailstock is an option.
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | 42 mm (1.7 in) |
| Max Turning Diameter | 165 mm (6.5 in) with 3-jaw chuck |
| Max Turning Length | 300 mm (11.8 in) with collet chuck; 280 mm (11 in) with 3-jaw chuck |
| Spindle Center Height | 1,100 mm (43.3 in) |
| Spindle Nose | ISO A2-5 |
| Collet Chuck Type | F48 |
| Chuck Size | 6 in (3-jaw chuck) |
| Spindle Bore | 53 mm (2.1 in) spindle / 45 mm (1.8 in) draw tube |
| Spindle Motor Power | 9 kW (12.1 hp) |
| Max Spindle Speed | 5,000 rpm |
| Z Axis Travel | 300 mm (11.8 in) (S8LT and S12LT turrets) |
| X Axis Travel | 150 mm (5.9 in) (S8LT and S12LT turrets) |
| Y Axis Travel | ±55 mm (±2.2 in), 110 mm (4.3 in) |
| Resolution | 0.001 mm (0.0001 in) |
| Turret Stations | 12 (BARUFFALDI S12LT) / 8 (LICO S8LT) |
| Turret Tool Shank | Ø25 mm / □20 mm (Ø1 in / □3/4 in) |
| X Z Axis Servo Power | 2.29 kW (3.1 hp) |
| Y Axis Servo Power | 1.48 kW (2.0 hp) |
| Tailstock Quill Diameter | 50 mm (2.0 in) |
| Tailstock Center Taper | MT-3 / MT-4 |
| Tailstock Manual Stroke | 185 mm (7.3 in) |
| Tailstock Hydraulic Pressure | 5-30 kg/cm2 |
| Machine Dimensions | 2,780 x 1,750 x 1,950 mm (109.4 x 68.9 x 76.8 in) (L x W x H) |
| Machine Weight | 3,500 kg (7,716 lb) |
| Hydraulic Tank Capacity | 35 L |
| Coolant Tank Capacity | 160 L |
| Coolant Pump Power | 1.27 kW (1.7 hp) |
| Lubrication | 4 L, 15 sec / 15 min |
| Power Requirement | 20 / 25 kVA |
Specifications sourced from licomachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Y-axis travel of ±55 mm (±2.2 in), 110 mm (4.3 in), for off-centre milling and drilling with live tools
- A tool turret with 12 stations and tool holders is standard equipment
- 5,000 rpm spindle with a 53 mm (2.1 in) through hole on an ISO A2-5 nose
- Parts catcher, parts conveyor and automatic bar feeder interface are standard
- Turning length of 300 mm (11.8 in) with the collet chuck
Limitations
- Spindle motor is 9 kW (12.1 hp), which limits heavy roughing in steel
- No sub-spindle appears in the table or the equipment lists, so the cut-off side needs a second operation
- The hydraulic tailstock, the 6 in hollow power chuck and the chip conveyor with cart are optional accessories
- LICO's table gives no torque figure for the spindle or the live tools
Best For
Frequently Asked Questions
01
Yes. The Y-axis slide travel is ±55 mm (±2.2 in), 110 mm (4.3 in), driven by a 1.48 kW (2.0 hp) servo motor. LICO describes the LND-AY series as a single spindle CNC lathe with Y-axis slide and live tools turret for turn-mill machining.
02
The table lists 12 positions for the BARUFFALDI S12LT turret and 8 for the LICO S8LT. A tool turret with 12 stations and tool holders is on the standard equipment list, and the 8-station turret is an optional accessory. Tool shanks are Ø25 mm round or □20 mm square.
03
Bar up to 42 mm (1.7 in) through the F48 collet chuck, turned up to 300 mm (11.8 in) long. With the optional 6 in hollow power chuck the maximum turning diameter is 165 mm (6.5 in) and the turning length 280 mm (11 in).
04
No, the hydraulic tailstock MT-3 / MT-4 is listed under optional accessories. Its quill diameter is 50 mm (2.0 in), the manual stroke 185 mm (7.3 in) and the hydraulic pressure range 5-30 kg/cm2.
05
The LND-65AY takes 65 mm (2.6 in) bar on an ISO A2-6 nose and is limited to 4,000 rpm, where the LND-42AY runs to 5,000 rpm. Axis travels, the 9 kW (12.1 hp) spindle motor and the machine dimensions are the same in the table.
