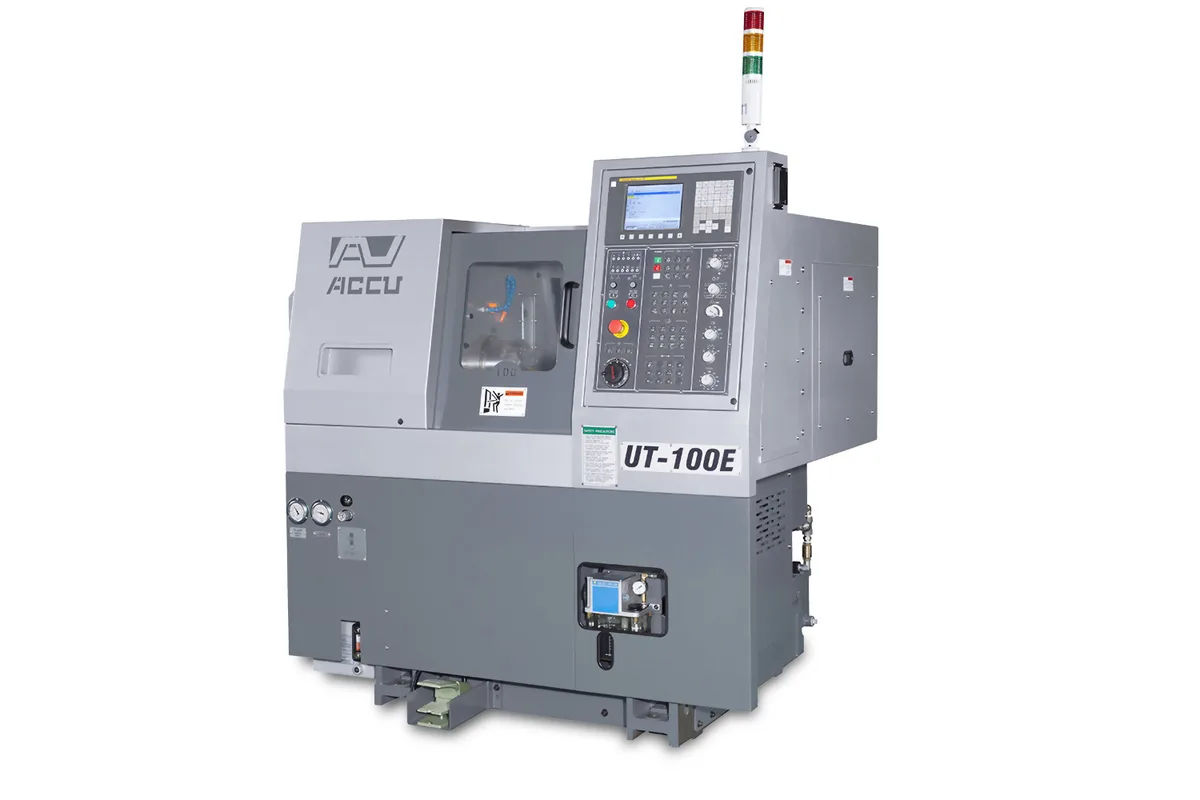

Accuway UT-100EM
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-100EM cost?
Price estimate
We do not have a price for the Accuway UT-100EM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-100EM is the smallest live-tool lathe on Accuway's site that is sold without a loader. It weighs 1,800 kg (3,968 lb), holds a 6 in chuck, and drives rotary tools at 6,000 rpm with 3.7/5.5 kW (5.0/7.4 hp).
Its turret is described in full: 12 stations, BMT/VDI tooling, servo drive. Fitting it costs turning envelope, as on every small live-tool lathe. Maximum turning diameter is 100 mm (3.9 in) and turning length 140 mm (5.5 in), compared with 180 mm (7.1 in) and 175 mm (6.9 in) on the UT-100E. For a machine whose bar capacity is 30 mm (1.2 in), those limits are rarely reached in bar work.
Bar work is the natural use. A bar feeder, its interface and a parts catcher with conveyor are all on the options list, and with rotary tools the part can be cross-drilled, slotted or given flats before cut-off. Each part drops complete on one side. The second side, if it needs work, is another operation, because there is one spindle and no Y axis.
The main spindle is rated 5.5/7.5 kW (7.4/10.1 hp), not far above the rotary tool motor, a balance that reflects how small the turning work is. The option list on this page does not mention rotary tool holders, so ask what is supplied with the turret. Dimensions are 1.7 x 1.8 x 1.8 m (66.9 x 70.9 x 70.9 in).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 380 mm (15.0 in) |
| Swing Over Saddle | 320 mm (12.6 in) |
| Max Turning Diameter | 100 mm (3.9 in) |
| Max Turning Length | 140 mm (5.5 in) |
| Guideway Type | Box way |
| Spindle Nose | A2-5 |
| Chuck Size | 6 in |
| Bar Capacity | 30 mm (1.2 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | 120 mm (4.7 in) |
| Z Axis Travel | 230 mm (9.1 in) |
| Rapid Traverse X | 12 m/min (472 in/min) |
| Rapid Traverse Z | 18 m/min (709 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 1.7 x 1.8 x 1.8 m (66.9 x 70.9 x 70.9 in) |
| Machine Weight | 1,800 kg (3,968 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Rotary tools at 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp)
- BMT/VDI turret with 12 stations and servo drive
- 1,800 kg (3,968 lb) in a 1.7 m long footprint
- Bar feeder and parts catcher available as options
- 6,000 rpm A2-5 main spindle
Limitations
- Turning diameter of 100 mm (3.9 in)
- Bar capacity limited to 30 mm (1.2 in)
- Single spindle and no Y axis
- Rotary tool holders are not named in the accessory lists
Best For
Frequently Asked Questions
01
A 12-station BMT/VDI turret with servo drive. Maximum rotary tool speed is 6,000 rpm and rotary tool power 3.7/5.5 kW (5.0/7.4 hp). Rotary tool holders are not named in the accessory lists on this page.
02
The UT-100E turns 180 mm (7.1 in) in diameter and 175 mm (6.9 in) in length. The UT-100EM turns 100 mm (3.9 in) and 140 mm (5.5 in). Travels are the same on both, 120 mm (4.7 in) in X and 230 mm (9.1 in) in Z.
03
No. Its table lists X, Z and rotary tools only. The UT-100EY has a Y axis of ±25 mm (±1.0 in) and weighs 2,300 kg (5,071 lb).
04
The machine is 1.7 x 1.8 x 1.8 m (66.9 x 70.9 x 70.9 in) as length, width and height and weighs 1,800 kg (3,968 lb). A bar feeder, if fitted, adds its own length behind the spindle.
