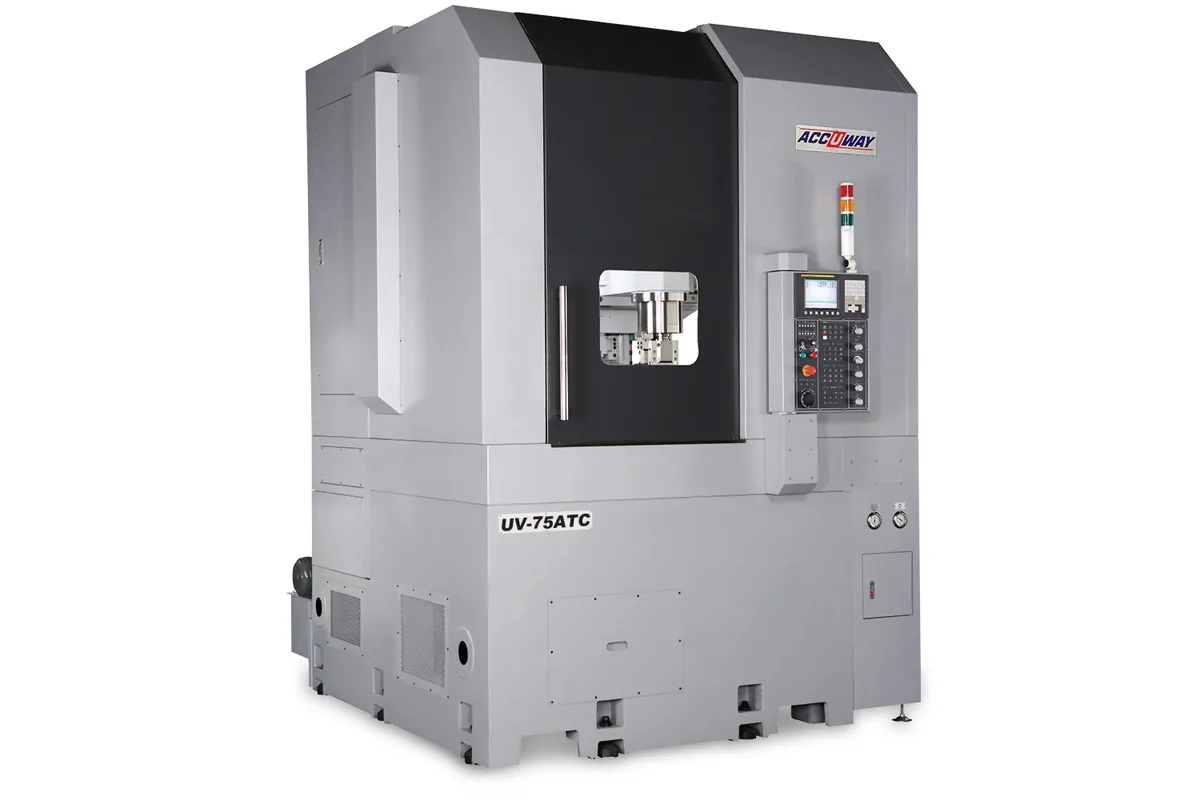

Accuway UV-75ATC
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
Max Turn Length
control
swing over bed
How much does the Accuway UV-75ATC cost?
Price estimate
We do not have a price for the Accuway UV-75ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Instead of a turret, the Accuway UV-75ATC carries its tools in a 12-position magazine and loads them into a ram with a BT50 taper. That is the ATC type of vertical turning center: one tool in the cut at a time, held in a large, stiff interface, and exchanged automatically.
The benefit shows in the tool limits. Each tool may be 400 mm (15.7 in) long and weigh 50 kg (110 lb), and the magazine carries up to 420 kg (926 lb) in total. Boring bars of that length reach deep into a housing, which a round shank clamped in a turret station cannot do as well. The magazine indexing type is listed as Servo-gear.
Turning capacity is 750 mm (29.5 in) in diameter and 800 mm (31.5 in) in length, the length being more than the 700 mm (27.6 in) of the turret-type UV-75E. X travel is also longer, 650 mm (25.6 in), since the ram has to reach the magazine as well as the part. Z is 800 mm (31.5 in). Rapids are 20 m/min (787 in/min) in X and 7 m/min (276 in/min) in Z.
The work spindle has an A2-11 nose, belt drive, 1,600 rpm and 18.5/22 kW (24.8/29.5 hp). The chuck row reads 24 (32) in. The tool spindle section of this model lists only the taper; rotation speed and power appear on the UV-75ATCC. Accuway's page gives no accessory list for this model. Net weight is 16,000 kg (35,273 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 850 mm (33.5 in) |
| Max Turning Diameter | 750 mm (29.5 in) |
| Max Turning Length | 800 mm (31.5 in) |
| Guideway Type | Linear (Box way) |
| Spindle Nose | A2-11 |
| Chuck Size | 24 (32) in |
| Max Spindle Speed | 1,600 rpm |
| Spindle Drive | Belt |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp) |
| Tool Spindle Taper | BT50 |
| X Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 7 m/min (276 in/min) |
| Magazine Indexing Type | Servo-gear |
| Tool Capacity | 12 |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 50 kg (110 lb) |
| Max Magazine Load | 420 kg (926 lb) |
| Machine Dimensions | L x W x H: 2.7 x 3.7 x 4.0 m (106.3 x 145.7 x 157.5 in) |
| Machine Weight | 16,000 kg (35,273 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 12-tool magazine with automatic tool change and a BT50 tool taper
- Tools up to 400 mm (15.7 in) long and 50 kg (110 lb)
- 800 mm (31.5 in) maximum turning length and 650 mm (25.6 in) of X travel
- A2-11 work spindle with 18.5/22 kW (24.8/29.5 hp)
Limitations
- The tool spindle section lists a taper only, with no speed or power
- Accuway's page for this model shows no standard or optional accessories
- Z rapid traverse of 7 m/min (276 in/min)
- Machine height of 4.0 m and 16,000 kg (35,273 lb)
Best For
Frequently Asked Questions
01
The machine sits in Accuway's ATC type group of vertical lathes. Instead of a turret it has a tool magazine with 12 stations, servo-gear indexing and a BT50 spindle taper for the tools. Maximum tool length is 400 mm (15.7 in) and maximum tool weight 50 kg (110 lb).
02
Maximum turning diameter is 750 mm (29.5 in), maximum turning length 800 mm (31.5 in) and swing over bed 850 mm (33.5 in). X travel is 650 mm (25.6 in) and Z travel 800 mm (31.5 in). The chuck row reads 24 (32) in.
03
The table for the UV-75ATC lists only a BT50 taper under the tool spindle heading. The UV-75ATCC is the model whose table adds a tool spindle speed of 3,000 rpm, a 5.5/7.5 kW (7.4/10.1 hp) motor and 105 N-m (77.4 lb-ft) of torque.
04
16,000 kg (35,273 lb). Machine dimensions are 2.7 x 3.7 x 4.0 m (106.3 x 145.7 x 157.5 in), length by width by height. The guideway type is listed as Linear (Box way) and the control is a FANUC 0i-T.
