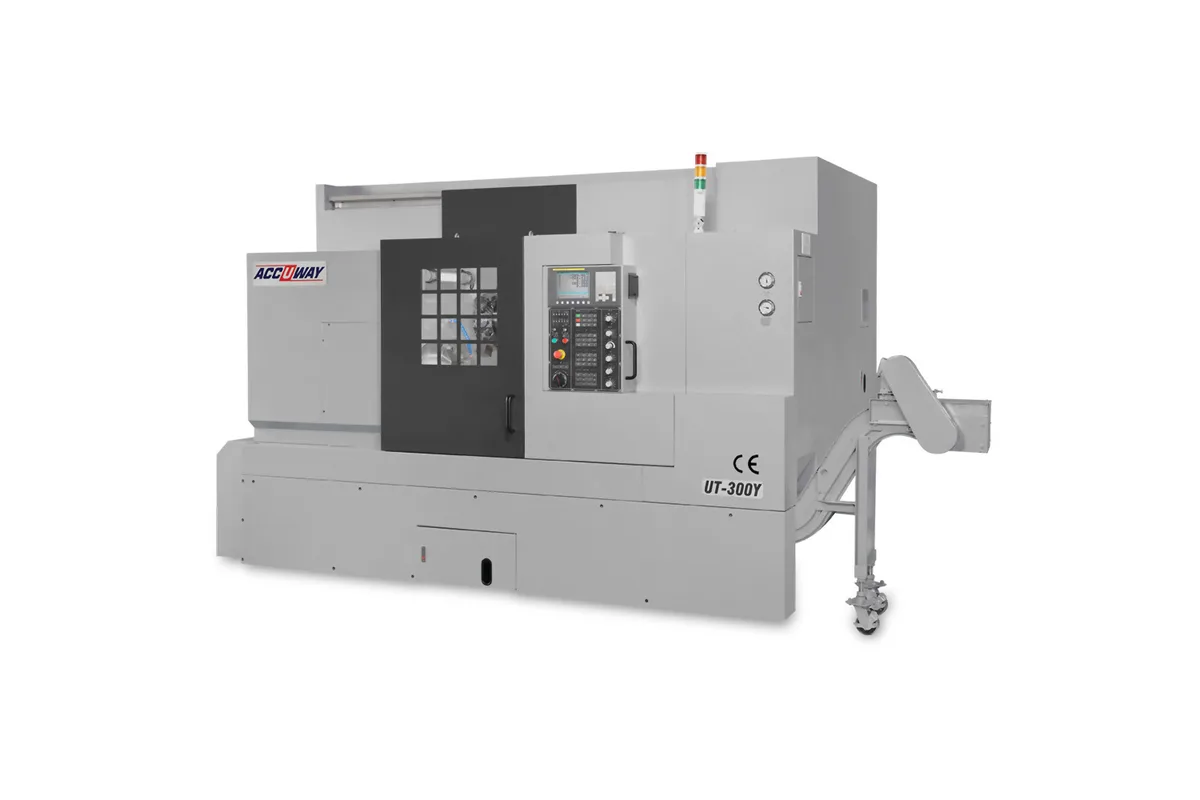

Accuway UT-300Y
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300Y cost?
Price estimate
We do not have a price for the Accuway UT-300Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Off-centre milling is what the Accuway UT-300Y adds to the UT-300 line. The turret travels ±50 mm (±2.0 in) in Y, carries rotary tools at 4,000 rpm, and works over a 750 mm (29.5 in) Z travel with a tailstock at the far end.
A Y axis lets an end mill cut a flat to a true width or a pocket with square corners, and lets a drill reach a hole that does not pass through the centreline. On the UT-300M those shapes have to be faked by combining X with C rotation. Here they are programmed directly, within the Y stroke.
The Y slide makes for a different machine body. Swing over bed is 910 mm (35.8 in) and swing over saddle 720 mm (28.3 in), both far above the UT-300M, and the machine stands 2.4 m high and weighs 6,500 kg (14,330 lb). X travel is slightly shorter at 275 mm (10.8 in). Turning diameter is 420 mm (16.5 in), turning length 540 mm (21.3 in) or 470 mm (18.5 in) by spindle column.
Y rapid traverse is 10 m/min (394 in/min), half the X figure. The rotary tool motor is 3.7/5.5 kW (5.0/7.4 hp), and the tailstock quill is slimmer than on the non-Y models at 85 mm (3.3 in). A gear box appears among the optional accessories for this model, next to the 0 degree and 90 degree rotary tool holders.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 910 mm (35.8 in) |
| Swing Over Saddle | 720 mm (28.3 in) |
| Max Turning Diameter | 420 mm (16.5 in) |
| Max Turning Length | 540 / 540 / 470 / 470 mm (21.3 / 21.3 / 18.5 / 18.5 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 275 mm (10.8 in) |
| Z Axis Travel | 750 mm (29.5 in) |
| Y Axis Travel | ±50 mm (±2.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 4,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 540 mm (21.3 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 85 mm (3.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 3.5 x 2.1 x 2.4 m (137.8 x 82.7 x 94.5 in) |
| Machine Weight | 6,500 kg (14,330 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Y-axis travel of ±50 mm (±2.0 in) for off-centre features
- Rotary tools at 4,000 rpm in a 12-station BMT/VDI turret
- Tailstock retained, with 540 mm (21.3 in) of body travel
- Spindle columns to A2-11 with a 116.5 mm (4.6 in) bar capacity
- Gear box listed as an optional accessory
Limitations
- Y rapid traverse of 10 m/min (394 in/min)
- 2.4 m tall and 6,500 kg (14,330 lb), heavier than the UT-300M
- Tailstock quill diameter reduced to 85 mm (3.3 in)
- Single spindle: the back of the part needs a second clamping
Best For
Frequently Asked Questions
01
±50 mm (±2.0 in). The Y rapid traverse rate is 10 m/min (394 in/min); X rapids at 20 m/min (787 in/min) and Z at 24 m/min (945 in/min). X travel is 275 mm (10.8 in) and Z travel 750 mm (29.5 in).
02
The UT-300M has no Y axis, a 612 mm (24.1 in) swing over bed and weighs 5,500 kg (12,125 lb). The UT-300Y has ±50 mm (±2.0 in) of Y, a 910 mm (35.8 in) swing over bed and weighs 6,500 kg (14,330 lb). Both run rotary tools at 4,000 rpm and turn 420 mm (16.5 in).
03
A tailstock. Its body travels 540 mm (21.3 in), the quill travels 120 mm (4.7 in), and the quill is 85 mm (3.3 in) in diameter with an MT#5 taper. The UT-300SY is the version with a second spindle in place of the tailstock.
04
3.5 x 2.1 x 2.4 m (137.8 x 82.7 x 94.5 in), given as length, width and height, with a net weight of 6,500 kg (14,330 lb). The height is worth checking against door openings and crane hooks.
