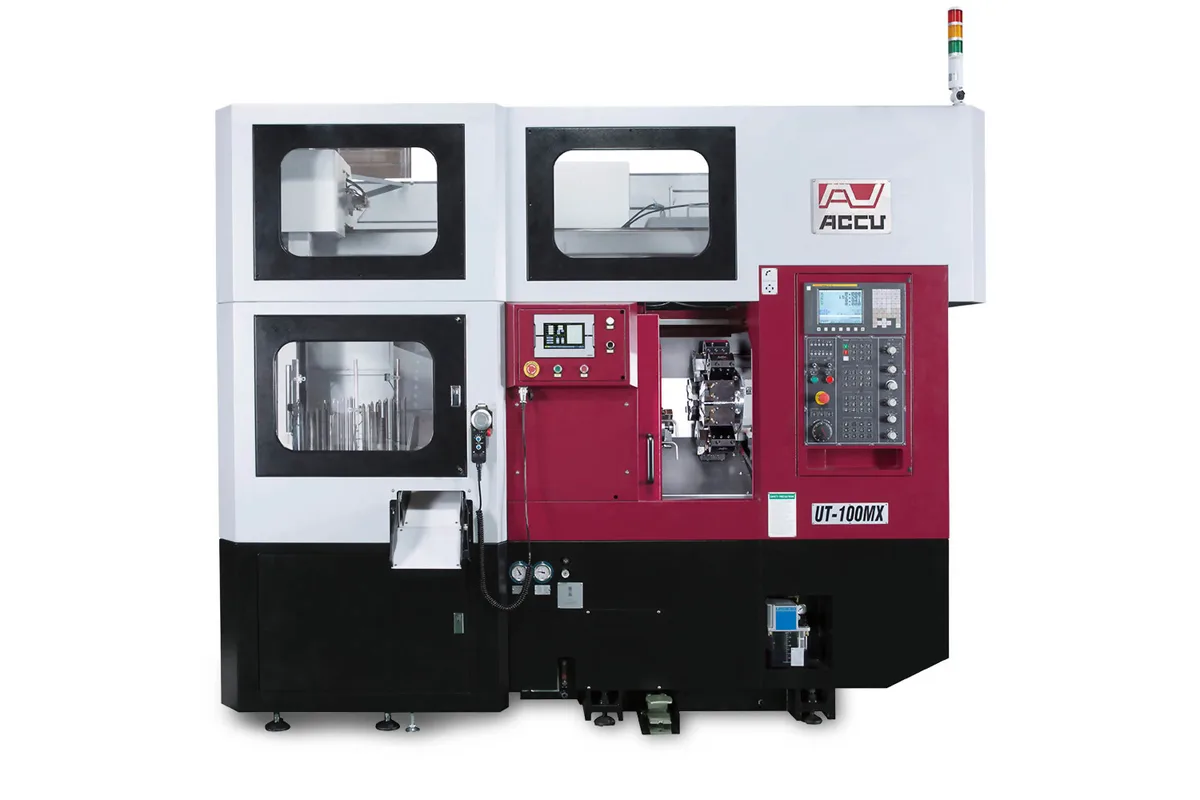

Accuway UT-100MX
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-100MX cost?
Price estimate
We do not have a price for the Accuway UT-100MX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the Accuway UT-100MX the loader is bigger than the lathe. Its traverse axis has a 1,650 mm (65.0 in) stroke, against a lathe Z travel of 230 mm (9.1 in), and the loader has its own control system, named in the table as OMRON.
The long traverse is what turns the UT-100 from a self-loading lathe into a small cell. A stroke of that length reaches well beyond the machine, to a stocker or conveyor at the side, and the machine length grows to 3.1 m to match. Material size goes up too: 20~150 mm (0.8~5.9 in) in diameter, 20~100 mm (0.8~3.9 in) in length, with a weight row of One side: 1 kg (2 lb). The traverse moves at 90 m/min (3,543 in/min) and the vertical axis, 360 mm (14.2 in) of stroke, at 75 m/min (2,953 in/min).
Turning capacity is the largest of the UT-100 group at 220 mm (8.7 in) in diameter, with a 155 mm (6.1 in) turning length. Tool shanks are larger as well, 25 mm (1.0 in) square and 40 mm (1.6 in) round, in 12 stations. Rotary tools run at 6,000 rpm with a 3.7/5.5 kW (5.0/7.4 hp) driver.
The spindle is unchanged: A2-5, 6 in chuck, 6,000 rpm, 5.5/7.5 kW (7.4/10.1 hp). Weight is 2,200 kg (4,850 lb). Disc-shaped parts up to 150 mm across but only 1 kg per gripper side are thin, light workpieces, which tells you the intended use: aluminium housings, covers, gear blanks.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 380 mm (15.0 in) |
| Swing Over Saddle | 320 mm (12.6 in) |
| Max Turning Diameter | 220 mm (8.7 in) |
| Max Turning Length | 155 mm (6.1 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 |
| Chuck Size | 6 in |
| Bar Capacity | 30 mm (1.2 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | 120 mm (4.7 in) |
| Z Axis Travel | 230 mm (9.1 in) |
| Rapid Traverse X | 12 m/min (472 in/min) |
| Rapid Traverse Z | 18 m/min (709 in/min) |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Driver Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 3.1 x 1.7 x 2.4 m (122.0 x 66.9 x 94.5 in) |
| Machine Weight | 2,200 kg (4,850 lb) |
| Loader Control | OMRON |
| Loader Material Diameter | 20~150 mm (0.8~5.9 in) |
| Loader Material Length | 20~100 mm (0.8~3.9 in) |
| Loader Material Weight | One side: 1 kg (2 lb) |
| Loader Z Stroke | 1,650 mm (65.0 in) |
| Loader Z Rapid Traverse | 90 m/min (3,543 in/min) |
| Loader Y Stroke | 360 mm (14.2 in) |
| Loader Y Rapid Traverse | 75 m/min (2,953 in/min) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Loader traverse stroke of 1,650 mm (65.0 in) at 90 m/min (3,543 in/min)
- Loader handles material of 20~150 mm (0.8~5.9 in) diameter
- 220 mm (8.7 in) turning diameter
- Rotary tools at 6,000 rpm, 3.7/5.5 kW (5.0/7.4 hp)
- Tool shanks of 25 mm (1.0 in) square and 40 mm (1.6 in) round
Limitations
- Loader weight row reads One side: 1 kg (2 lb)
- Machine length of 3.1 m with the long loader
- Turning length of 155 mm (6.1 in)
- No Y axis in the table, unlike the UT-100Y
Best For
Frequently Asked Questions
01
The UT-100M loader has a 360 mm (14.2 in) traverse stroke and carries 10~60 mm (0.4~2.4 in) material. The UT-100MX loader has a 1,650 mm (65.0 in) traverse stroke at 90 m/min (3,543 in/min), carries 20~150 mm (0.8~5.9 in) material and has an OMRON loader control system.
02
Maximum turning diameter is 220 mm (8.7 in) and maximum turning length 155 mm (6.1 in). Swing over bed is 380 mm (15.0 in). X travel is 120 mm (4.7 in) and Z travel 230 mm (9.1 in).
03
Yes. Maximum rotary tool speed is 6,000 rpm and the rotary tool driver power 3.7/5.5 kW (5.0/7.4 hp). There are 12 tool stations. 0 degree and 90 degree rotary tool holders are optional accessories.
04
3.1 x 1.7 x 2.4 m (122.0 x 66.9 x 94.5 in) as length, width and height, with a net weight of 2,200 kg (4,850 lb). The UT-100M, for comparison, is 1.7 m long and weighs 1,900 kg (4,189 lb).
