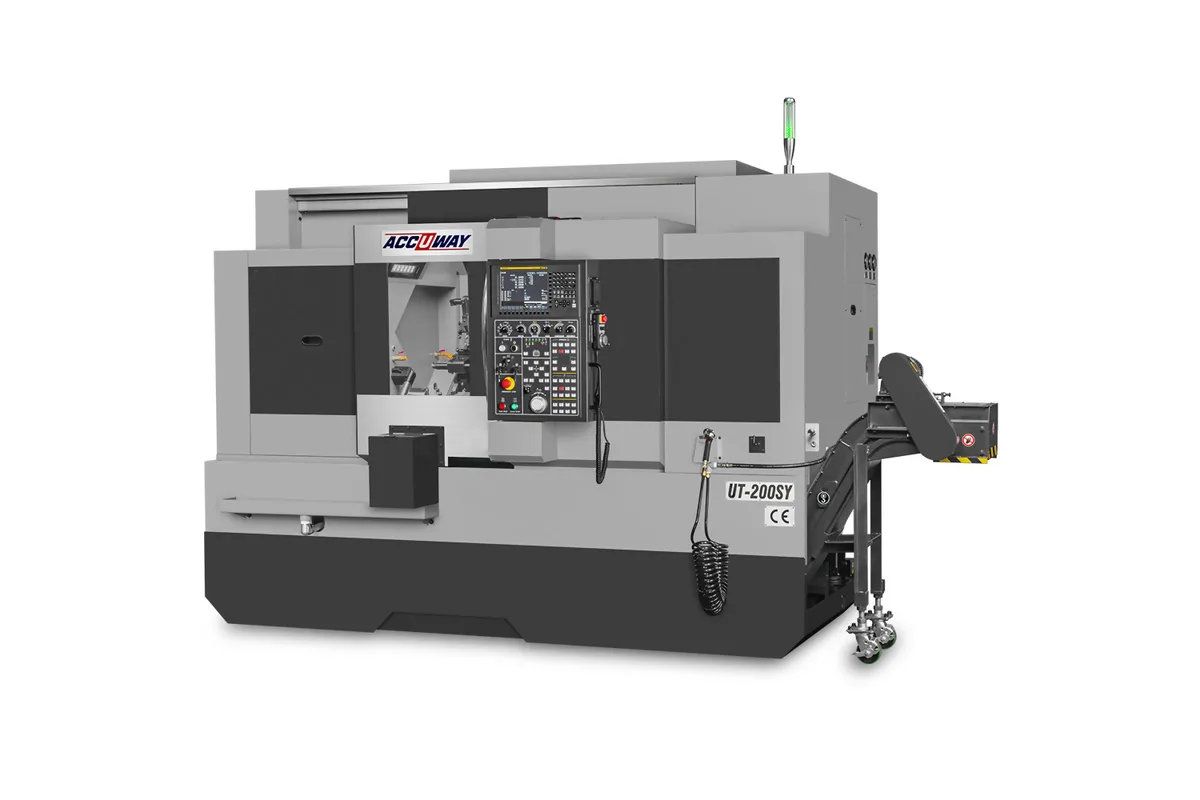

Accuway UT-200SY
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-200SY cost?
Price estimate
We do not have a price for the Accuway UT-200SY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-200SY is the fully equipped member of the UT-200 family: second spindle, rotary tools and a Y axis with ±50 mm (±2.0 in) of travel. With Y, a rotary tool can leave the centreline, so flats, offset holes and pockets can be milled to size instead of approximated with X and C moves.
Adding Y changes the machine's cross-section. Swing over bed is 680 mm (26.8 in) and swing over saddle 485 mm (19.1 in), both well above the UT-200SM, and the machine is taller and heavier at 2.2 m and 4,500 kg (9,921 lb). Turning diameter does not grow with it. The table gives 240 mm (9.4 in) at SP1 and 200 mm (7.9 in) at SP2, a little under the two-spindle models without Y.
Rotary tools run to 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp) in a 12-station BMT/VDI turret. Y rapid traverse is 10 m/min (394 in/min), half the 20 m/min (787 in/min) of X, Z and the B axis that carries the second spindle through its 585 mm (23.0 in).
Both spindles follow the family pattern. The main one comes in four columns from A2-5 with a 6 in chuck at 6,000 rpm to A2-8 with a 10 in chuck at 3,500 rpm, on 11/15 kW (14.8/20.1 hp). The second is A2-5 with 44 mm (1.7 in) of bar capacity and 5.5/7.5 kW (7.4/10.1 hp). Turning length is 440 mm (17.3 in), or 360 mm (14.2 in) in the A2-8 column.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 680 mm (26.8 in) |
| Swing Over Saddle | 485 mm (19.1 in) |
| Max Turning Diameter Sp1 | 240 mm (9.4 in) |
| Max Turning Diameter Sp2 | 200 mm (7.9 in) |
| Max Turning Length | 440 / 440 / 440 / 360 mm (17.3 / 17.3 / 17.3 / 14.2 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 / A2-6 / A2-6 / A2-8 |
| Chuck Size | 6 / 8 / 8 / 10 in |
| Bar Capacity | 44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in) |
| Max Spindle Speed | 6,000 / 4,500 / 4,000 / 3,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp) |
| Spindle 2 Nose | A2-5 |
| Spindle 2 Chuck Size | 6 / 6 / 8 / 8 in |
| Spindle 2 Bar Capacity | 44 mm (1.7 in) |
| Spindle 2 Speed | 6,000 / 6,000 / 5,000 / 5,000 rpm |
| Spindle 2 Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | 220 mm (8.7 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | ±50 mm (±2.0 in) |
| B Axis Travel | 585 mm (23.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Rapid Traverse B | 20 m/min (787 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 3.2 x 1.8 x 2.2 m (126.0 x 70.9 x 86.6 in) |
| Machine Weight | 4,500 kg (9,921 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Y axis with ±50 mm (±2.0 in) of travel for off-centre milling
- Second spindle on a 585 mm (23.0 in) B axis for back-end work
- Rotary tools at 6,000 rpm in a 12-station BMT/VDI turret
- Swing over bed of 680 mm (26.8 in)
- Four main spindle choices up to A2-8 with 75 mm (3.0 in) bar capacity
Limitations
- Turning diameter is 240 mm (9.4 in) at SP1 and 200 mm (7.9 in) at SP2
- Y rapid traverse of 10 m/min (394 in/min)
- No tailstock rows in the table
- Rotary tool motor is 3.7/5.5 kW (5.0/7.4 hp)
Best For
Frequently Asked Questions
01
±50 mm (±2.0 in), with a Y rapid traverse rate of 10 m/min (394 in/min). X travel is 220 mm (8.7 in), Z travel is 600 mm (23.6 in) and the B axis of the second spindle travels 585 mm (23.0 in).
02
The UT-200SM has no Y axis, a 570 mm (22.4 in) swing over bed and weighs 4,000 kg (8,818 lb). The UT-200SY adds ±50 mm of Y, has a 680 mm (26.8 in) swing and weighs 4,500 kg (9,921 lb). Both have two spindles and 6,000 rpm rotary tools.
03
Spindle 1 has an 11/15 kW (14.8/20.1 hp) motor, with 15/18.5 kW (20.1/24.8 hp) in brackets, and runs 6,000, 4,500, 4,000 or 3,500 rpm depending on the nose size. Spindle 2 has 5.5/7.5 kW (7.4/10.1 hp) and runs 6,000 or 5,000 rpm.
04
3.2 x 1.8 x 2.2 m (126.0 x 70.9 x 86.6 in), length by width by height, and 4,500 kg (9,921 lb). Guideways are box type and the control is a FANUC 0i-T.
