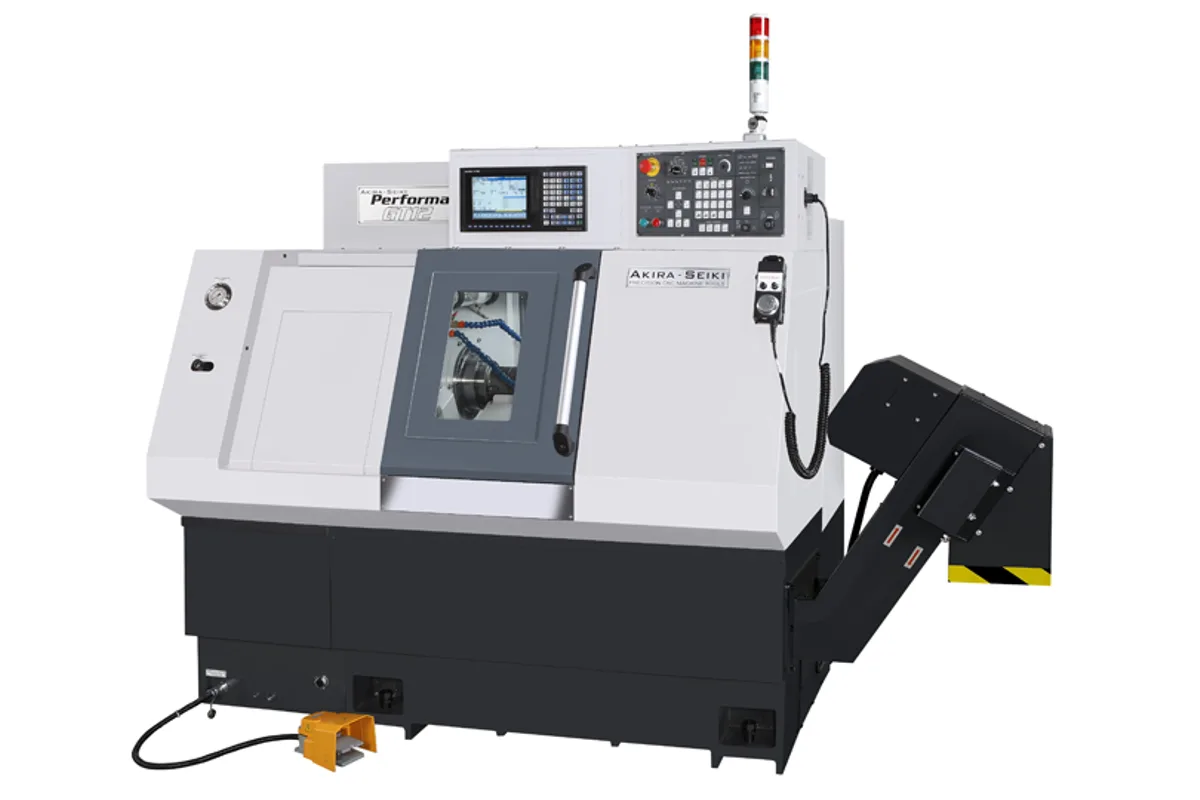

Akira Seiki GT12
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
axes configuration
swing over bed
How much does the Akira Seiki GT12 cost?
Price estimate
We do not have a price for the Akira Seiki GT12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki GT12 is a gang-tool CNC lathe. It has no turret: the tool storage row reads Gang Tool 8, meaning the tools stand in a row on the cross slide and the slide moves from one to the next. That is why X travel is 400 mm (15.7 in), far longer than on a turret lathe of this size, while Z is only 220 mm (8.7 in).
Gang tooling is quick. There is no indexing time between tools, so short parts with a handful of operations come off fast. The limits are part length and tool clearance: maximum cutting length is 200 mm (7.9 in), and every tool on the slide has to clear the chuck and the part.
Work is held in a collet, CR42 or 5C, with a 42 mm (1.7 in) draw tube bore for bar. The A2-5 spindle runs to 6,000 rpm with 17 HP (12.7 kW) and 84 Nm (62 lb-ft) at peak. Rapid feed is 36 m/min (1,417 ipm) and cutting feed 10 m/min (394 ipm).
Akira Seiki sums the machine up as flexible applications in a compact floor space, and the footprint is 1,800 x 1,580 mm (70.8 x 62.2 in) at 2,300 kg (5,071 lb). It needs 18 kVA. A chip drawer is standard and a conveyor optional. There is no tailstock in the table.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| Axes Configuration | X+Z |
| Swing Over Bed | 400 mm (15.7 in) |
| Max Turning Length | 200 mm (7.9 in) |
| Chuck Size | Collet CR42 / 5C |
| Draw Tube Bore | 42 mm (1.7 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | 17 HP (12.7 kW) |
| Spindle Torque | 84 Nm (62 lb-ft) |
| Spindle Nose | A2-5 |
| X Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 220 mm (8.7 in) |
| Rapid Traverse Xz | 36 m/min (1,417 ipm) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Turret Stations | Gang Tool 8 |
| OD Tool Size | 20 mm (0.79 in) |
| Boring Bar Shank | 16 mm (0.63 in) |
| Coolant Tank Capacity | 120 L (32 gal) |
| Chip Disposal | Drawer (STD); Conveyor (OPT) |
| Power Requirement | 18 kVA |
| Machine Dimensions | 1,800 x 1,580 mm (70.8 x 62.2 in) |
| Machine Weight | 2,300 kg (5,071 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Gang tooling with no turret index time between tools
- 400 mm (15.7 in) of X travel for a row of tools
- 6,000 rpm A2-5 spindle with a 42 mm (1.7 in) draw tube bore
- Footprint of 1,800 x 1,580 mm (70.8 x 62.2 in) on 18 kVA
Limitations
- Maximum cutting length of 200 mm (7.9 in)
- No tailstock is listed, so long slender parts are out
- Collet workholding only: CR42 or 5C
- Peak torque of 84 Nm (62 lb-ft)
Best For
Frequently Asked Questions
01
A gang-tool lathe. The tool storage row of the maker's table reads Gang Tool 8 instead of a turret station count, and X travel is 400 mm (15.7 in) to carry the row of tools past the spindle.
02
The draw tube bore is 42 mm (1.7 in), and the chuck row lists a collet, CR42 / 5C. The table does not give a separate bar capacity figure.
03
Maximum speed 6,000 rpm, peak power 17 HP (12.7 kW), peak torque 84 Nm (62 lb-ft), spindle nose A2-5. Rapid feed in X and Z is 36 m/min (1,417 ipm).
04
The SL15 is a turret lathe with 10 stations, 24 HP (17.9 kW) and 137 Nm (101 lb-ft), on the same collet and 42 mm (1.7 in) bore. The GT12 trades the turret for gang tooling and a longer X axis.
