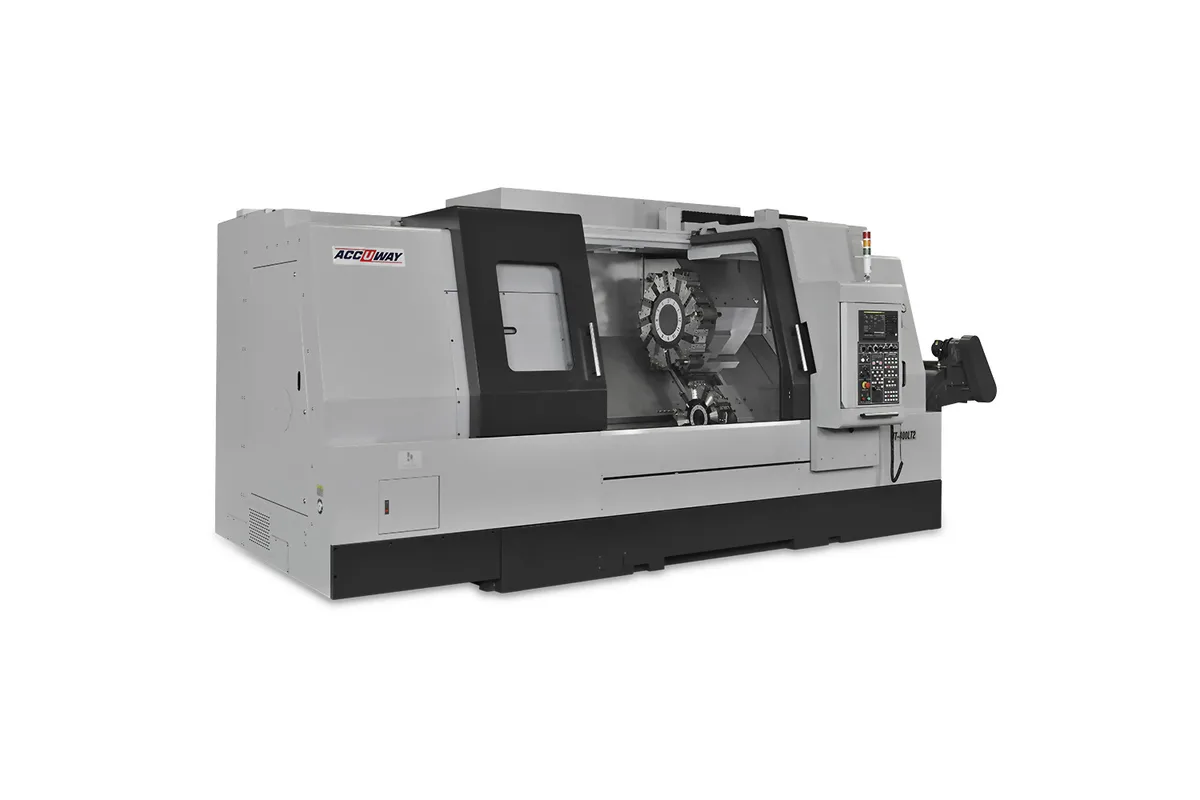

Accuway UT-400LT2
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-400LT2 cost?
Price estimate
We do not have a price for the Accuway UT-400LT2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two turrets work on one spindle in the Accuway UT-400LT2. The table counts the stations as 12+10 and gives each turret its own X axis, so two tools can cut the same workpiece at once. Accuway files it under two turret, single spindle lathes.
The spindle is a single specification, unlike the four-column choice on the other UT-400 pages: an A2-15 nose, a 24 in chuck, a 180 mm (7.1 in) bar capacity and 800 rpm, belt driven, with a 30/37 kW (40.2/49.6 hp) motor and a 2 speed gear box. Maximum turning length is 1,400 mm (55.1 in).
The axis row X1/X2 reads 380/260 mm (15.0/10.2 in), and Z1/Z2 travel is 1,500 mm (59.1 in), with rapids of 20 m/min (787 in/min) in X and 24 m/min (945 in/min) in Z. The two turrets also take different tools. The shank rows read T1/T2: □32/□25 mm (□1.3/□1.0 in) for square tools and T1/T2: Ø50/Ø32 mm (Ø2.0/Ø1.3 in) for round ones, so the first turret takes the larger tools and is the roughing side. Two turning diameter rows are printed, 700 mm (27.6 in) and 460 mm (18.1 in); the page labels them SP1 and SP2 although there is one spindle, and they most plausibly belong to the two turrets. Confirm this with the maker.
What the layout buys is cycle time on large parts: balanced roughing with a tool on each side of a shaft, or outside and inside work together on a pipe coupling. The control is a FANUC 0i-TF Plus. No tailstock, Y-axis or rotary tool figures are given, and the page has no accessory lists. Weight is 14,500 kg (31,966 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-TF Plus |
| Swing Over Bed | 900 mm (35.4 in) |
| Swing Over Saddle | 745 mm (29.3 in) |
| Max Turning Diameter Sp1 | 700 mm (27.6 in) |
| Max Turning Diameter Sp2 | 460 mm (18.1 in) |
| Max Turning Length | 1,400 mm (55.1 in) |
| Guideway Type | Box |
| Spindle Nose | A2-15 |
| Chuck Size | 24 in |
| Bar Capacity | 180 mm (7.1 in) |
| Max Spindle Speed | 800 rpm (Belt) |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp) + 2 speed gear box |
| X1 X2 Axis Travel | 380/260 mm (15.0/10.2 in) |
| Z1 Z2 Axis Travel | 1,500 mm (59.1 in) |
| Rapid Traverse X1 X2 | 20 m/min (787 in/min) |
| Rapid Traverse Z1 Z2 | 24 m/min (945 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Servo mechanical |
| Turret Stations | 12+10 |
| Square Tool Shank T1 T2 | T1/T2: □32/□25 mm (□1.3/□1.0 in) |
| Round Tool Shank T1 T2 | T1/T2: Ø50/Ø32 mm (Ø2.0/Ø1.3 in) |
| Machine Dimensions | L x W x H: 6.2 x 3.2 x 2.6 m (244.1 x 126.0 x 102.4 in) |
| Machine Weight | 14,500 kg (31,966 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two turrets, 12+10 stations, each with its own X axis
- 24 in chuck on an A2-15 nose with 180 mm (7.1 in) bar capacity
- 30/37 kW (40.2/49.6 hp) spindle with a 2 speed gear box
- Z1/Z2 travel of 1,500 mm (59.1 in) at 24 m/min (945 in/min)
- FANUC 0i-TF Plus control for both turrets
Limitations
- Spindle speed limited to 800 rpm
- No rotary tool or Y-axis figures in the table
- No tailstock rows and no accessory lists on the maker's page
- 3.2 m wide and 14,500 kg (31,966 lb)
Best For
Frequently Asked Questions
01
Two. The number of tools row reads 12+10 stations, the tooling system is BOT and the drive servo mechanical. The X1/X2 axis travel row gives 380/260 mm (15.0/10.2 in), and Z1/Z2 travel is 1,500 mm (59.1 in).
02
An A2-15 spindle nose with a 24 in chuck and 180 mm (7.1 in) of bar capacity. Spindle speed is 800 rpm with belt drive, and the motor is 30/37 kW (40.2/49.6 hp) with a 2 speed gear box.
03
The UT-400L has one 12-station turret, a tailstock and four spindle columns up to 2,000 rpm, and weighs 14,000 kg (30,864 lb). The UT-400LT2 has two turrets, one spindle specification at 800 rpm and no tailstock rows, and weighs 14,500 kg (31,966 lb).
04
6.2 x 3.2 x 2.6 m (244.1 x 126.0 x 102.4 in) as length, width and height. Swing over bed is 900 mm (35.4 in), swing over saddle 745 mm (29.3 in) and the net weight 14,500 kg (31,966 lb).
