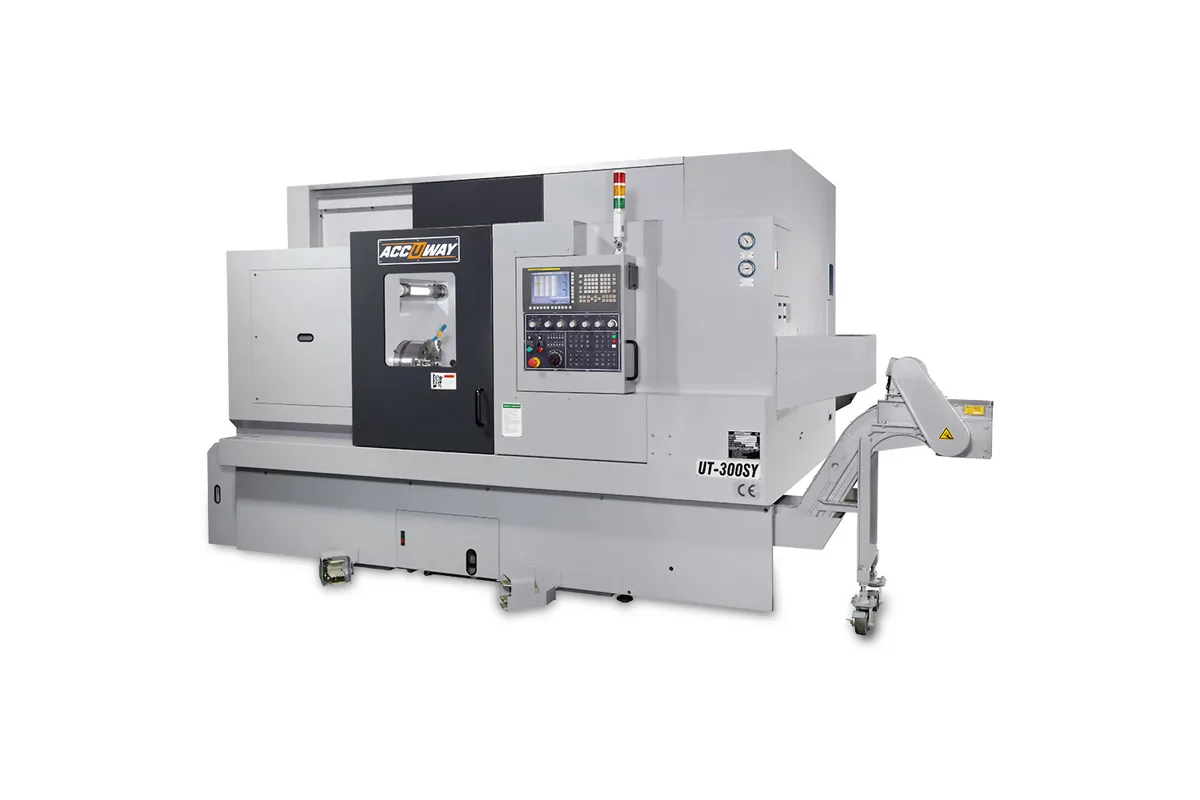

Accuway UT-300SY
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300SY cost?
Price estimate
We do not have a price for the Accuway UT-300SY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Everything the UT-300 platform offers on a short bed is combined in the Accuway UT-300SY: a main spindle up to A2-11, an A2-5 second spindle, rotary tools at 4,000 rpm and ±50 mm (±2.0 in) of Y travel. A part can be turned, milled off-centre, transferred and finished on its back face without leaving the machine.
The frame is the Y-axis one, shared with the UT-300Y. Both are 3.5 x 2.1 x 2.4 m (137.8 x 82.7 x 94.5 in) and 6,500 kg (14,330 lb), with a 910 mm (35.8 in) swing over bed. Where the UT-300Y has a tailstock, this model has the second spindle on a B axis with 700 mm (27.6 in) of travel.
Turning diameter is 420 mm (16.5 in) at SP1 and 375 mm (14.8 in) at SP2. The first figure is lower than on the UT-300SM, which gives 480 mm (18.9 in) at SP1, so the Y axis is paid for with some diameter. Turning length is 540 mm (21.3 in), or 470 mm (18.5 in) in the A2-11 columns, over a 750 mm (29.5 in) Z travel.
Power is split three ways: 15/18.5 kW (20.1/24.8 hp) for the main spindle, 5.5/7.5 kW (7.4/10.1 hp) for the second spindle and 3.7/5.5 kW (5.0/7.4 hp) for rotary tools. The turret has 12 stations with BMT/VDI tooling. All of them must cover both sides of the part, so the number of live stations a job needs is worth counting before quoting a complex component.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 910 mm (35.8 in) |
| Swing Over Saddle | 720 mm (28.3 in) |
| Max Turning Diameter Sp1 | 420 mm (16.5 in) |
| Max Turning Diameter Sp2 | 375 mm (14.8 in) |
| Max Turning Length | 540 / 540 / 470 / 470 mm (21.3 / 21.3 / 18.5 / 18.5 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| Spindle 2 Nose | A2-5 |
| Spindle 2 Chuck Size | 6 / 6 / 8 / 8 in |
| Spindle 2 Bar Capacity | 44 mm (1.7 in) |
| Spindle 2 Speed | 6,000 / 6,000 / 5,000 / 5,000 rpm |
| Spindle 2 Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | 275 mm (10.8 in) |
| Z Axis Travel | 750 mm (29.5 in) |
| Y Axis Travel | ±50 mm (±2.0 in) |
| B Axis Travel | 700 mm (27.6 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Rapid Traverse B | 20 m/min (787 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 4,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 3.5 x 2.1 x 2.4 m (137.8 x 82.7 x 94.5 in) |
| Machine Weight | 6,500 kg (14,330 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Second spindle, Y axis and rotary tools on one machine
- Y travel of ±50 mm (±2.0 in) usable at both spindles
- B-axis travel of 700 mm (27.6 in) at 20 m/min (787 in/min)
- Main spindle up to A2-11 with a 15 in chuck
- 910 mm (35.8 in) swing over bed
Limitations
- Turning diameter at SP1 is 420 mm (16.5 in), below the UT-300SM
- 12 turret stations shared between two spindles
- Second spindle bar capacity is 44 mm (1.7 in)
- No tailstock rows, and a height of 2.4 m
Best For
Frequently Asked Questions
01
X with 275 mm (10.8 in) of travel, Z with 750 mm (29.5 in), Y with ±50 mm (±2.0 in) and a B axis of 700 mm (27.6 in) carrying the second spindle. Rapids are 20 m/min (787 in/min) in X and B, 24 m/min (945 in/min) in Z and 10 m/min (394 in/min) in Y.
02
The UT-300Y is a single-spindle machine with a tailstock whose body travels 540 mm (21.3 in). The UT-300SY replaces the tailstock with an A2-5 second spindle. Size and weight are the same on both: 6,500 kg (14,330 lb).
03
It has an A2-5 nose and a 6 or 8 in chuck, passes a 44 mm (1.7 in) bar, runs to 6,000 or 5,000 rpm and is driven by a 5.5/7.5 kW (7.4/10.1 hp) motor. Maximum turning diameter at SP2 is 375 mm (14.8 in).
04
Optional accessories include a 15" Colored LCD monitor, tool setter, parts catcher and parts conveyor, bar feeder interface (7 or 24 pins), bar feeder, oil mist collector, gear box, linear scale, and 0 degree and 90 degree rotary tool holders.
