Pinnacle PK-L150A

Q: How much does the Pinnacle PK-L150A cost?

The price estimate for the Pinnacle PK-L150A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-pk-l150a#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

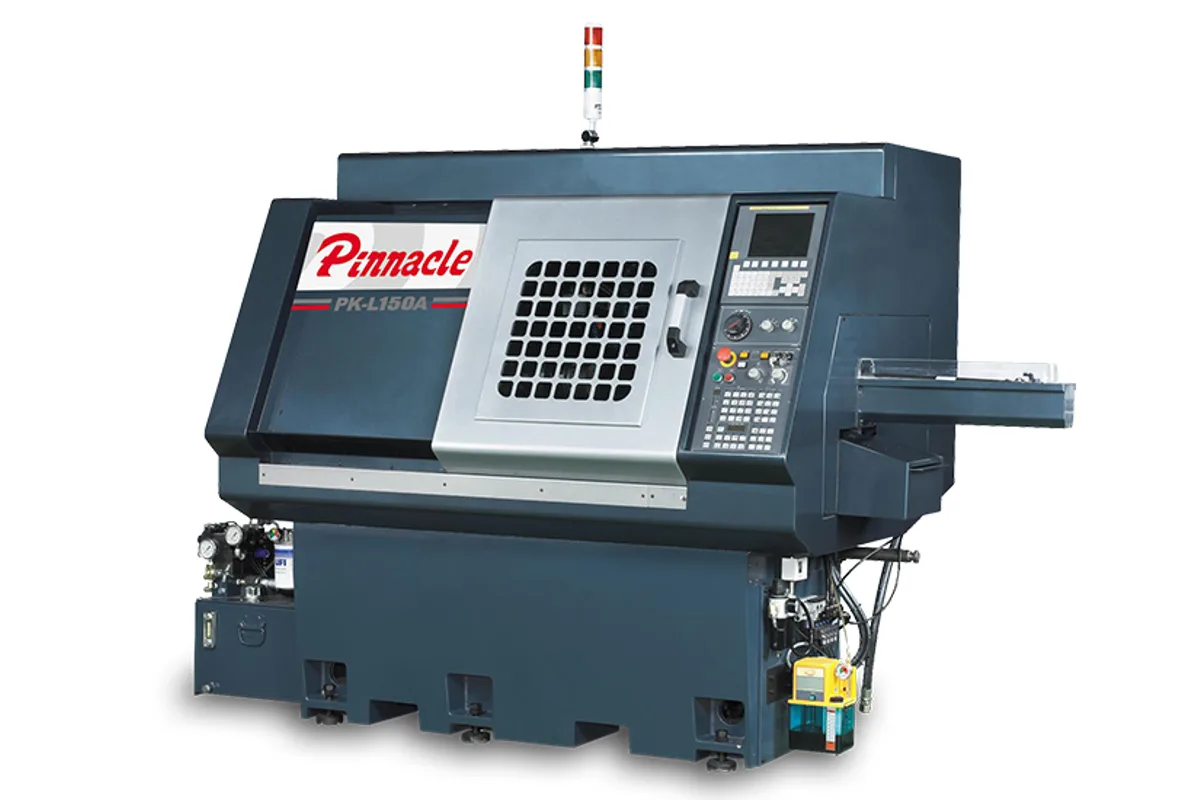

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Power

5.5 / 7.5 kW (7.4 / 10.1 hp)

Max Turn Length

150 mm (5.9 in)

swing over bed

Ø330 mm (Ø13.0 in)

swing over cross slide

Ø180 mm (Ø7.1 in)

max turning diameter

Ø250 mm (Ø9.8 in)

standard turning diameter

Ø190 mm (Ø7.5 in)

How much does the Pinnacle PK-L150A cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle PK-L150A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle PK-L150A is a compact CNC turning center for small chucked and bar-fed parts: a 6 in chuck on an A2-5 spindle, Ø42 mm (Ø1.7 in) of bar capacity and a turning length of 150 mm (5.9 in). It weighs 2,100 kg (4,630 lb) and occupies 1.8 x 1.4 x 1.65 m.

Short travels define what it does. X is 150 mm (5.9 in) and Z is 280 mm (11.0 in), with rapids of 15 / 15 m/min, so the slide is never far from the next cut. Maximum turning diameter is Ø250 mm (Ø9.8 in) and the standard turning diameter is Ø190 mm (Ø7.5 in), inside a Ø330 mm (Ø13.0 in) swing over the bed. Pinnacle's table lists no tailstock for this model, which fits the short Z: work is held in the chuck or fed through the Ø52 mm (Ø2.0 in) spindle bore.

The spindle runs 45 - 6,000 rpm on a 5.5 / 7.5 kW (7.4 / 10.1 hp) motor, the highest speed among Pinnacle's lathes; the L210A tops out at 4,500 rpm. Tooling is an 8-station turret that indexes in 0.15 sec tool to tool and takes □20 mm (□0.8 in) shank tools and Ø20 mm (Ø0.8 in) boring bars. Pinnacle also describes a combination of turret and gang type tool slide for this machine.

The structure is Meehanite cast iron with hardened and ground slideways, and both axes use class C3 ball screws. A foot switch controls the hydraulic chuck. Services are modest: 15 kVA and air at 6 kg/cm².

Full Specifications

Parameter	Value
Swing Over Bed	Ø330 mm (Ø13.0 in)
Swing Over Cross Slide	Ø180 mm (Ø7.1 in)
Max Turning Diameter	Ø250 mm (Ø9.8 in)
Standard Turning Diameter	Ø190 mm (Ø7.5 in)
Max Turning Length	150 mm (5.9 in)
Spindle Motor Power	5.5 / 7.5 kW (7.4 / 10.1 hp)
Spindle Speed	45 - 6,000 rpm
Spindle Nose	A2-5
Chuck Size	6"
Spindle Bore	Ø52 mm (Ø2.0 in)
Bar Capacity	Ø42 mm (Ø1.7 in)
X Axis Travel	150 mm (5.9 in)
Z Axis Travel	280 mm (11.0 in)
Rapid Traverse Xz	15 / 15 m/min
Cutting Feed Rate	0.016 ~ 6,000 mm/min
Turret Stations	8
Turret Index Time	0.15 sec (T-T)
Tool Shank Size	□20 mm (□0.8 in)
Boring Bar Diameter	Ø20 mm (Ø0.8 in)
Power Requirement	Ø3, 15 kVA
Air Requirement	6 kg/cm²
Machine Dimensions	1.8 x 1.4 x 1.65 m (L x W x H)
Machine Weight	2,100 kg (4,630 lb)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

45 - 6,000 rpm spindle with a 5.5 / 7.5 kW (7.4 / 10.1 hp) motor for small-diameter work
Ø42 mm (Ø1.7 in) bar capacity through a Ø52 mm (Ø2.0 in) spindle bore
8-station turret indexing in 0.15 sec tool to tool
Small outline of 1.8 x 1.4 x 1.65 m at 2,100 kg (4,630 lb)
Runs on a 15 kVA supply with air at 6 kg/cm²

Limitations

Turning length is only 150 mm (5.9 in), with 280 mm (11.0 in) of Z travel
No tailstock is listed in Pinnacle's table for this model, so long slender parts are out
The 6 in chuck and A2-5 nose keep it to small workpieces; standard turning diameter is Ø190 mm (Ø7.5 in)
Eight turret stations with □20 mm (□0.8 in) tools leave little room for long tool lists

Best For

Short bar-fed parts up to Ø42 mm (Ø1.7 in) Small chucked parts within 150 mm (5.9 in) of turning length High-volume second operations where a 0.15 sec turret index matters Shops with limited floor space and a 15 kVA supply

Frequently Asked Questions

01 What size parts can the Pinnacle PK-L150A turn?

Maximum turning diameter is Ø250 mm (Ø9.8 in), standard turning diameter is Ø190 mm (Ø7.5 in) and maximum turning length is 150 mm (5.9 in). Swing over the bed is Ø330 mm (Ø13.0 in) and swing over the cross slide is Ø180 mm (Ø7.1 in).

02 What is the bar capacity of the PK-L150A?

The table lists Ø42 mm (Ø1.7 in) of bar capacity and a Ø52 mm (Ø2.0 in) hole through the spindle. Pinnacle's feature text puts it as a capacity of 42/52mm for the bars, together with a 10 HP spindle motor.

03 Does the PK-L150A have a tailstock?

Pinnacle's specification table gives no tailstock taper, quill or travel for the PK-L150A. The larger L210A lists an MT4 tailstock with 470 mm (18.5 in) of travel, so that is the model to look at for shaft work between centers.

04 How fast is the PK-L150A?

The spindle range is 45 - 6,000 rpm. Rapid speed is 15 / 15 m/min on X and Z, cutting feed is 0.016 ~ 6,000 mm/min, and the turret indexes in 0.15 sec tool to tool. Travels are 150 mm (5.9 in) in X and 280 mm (11.0 in) in Z.
