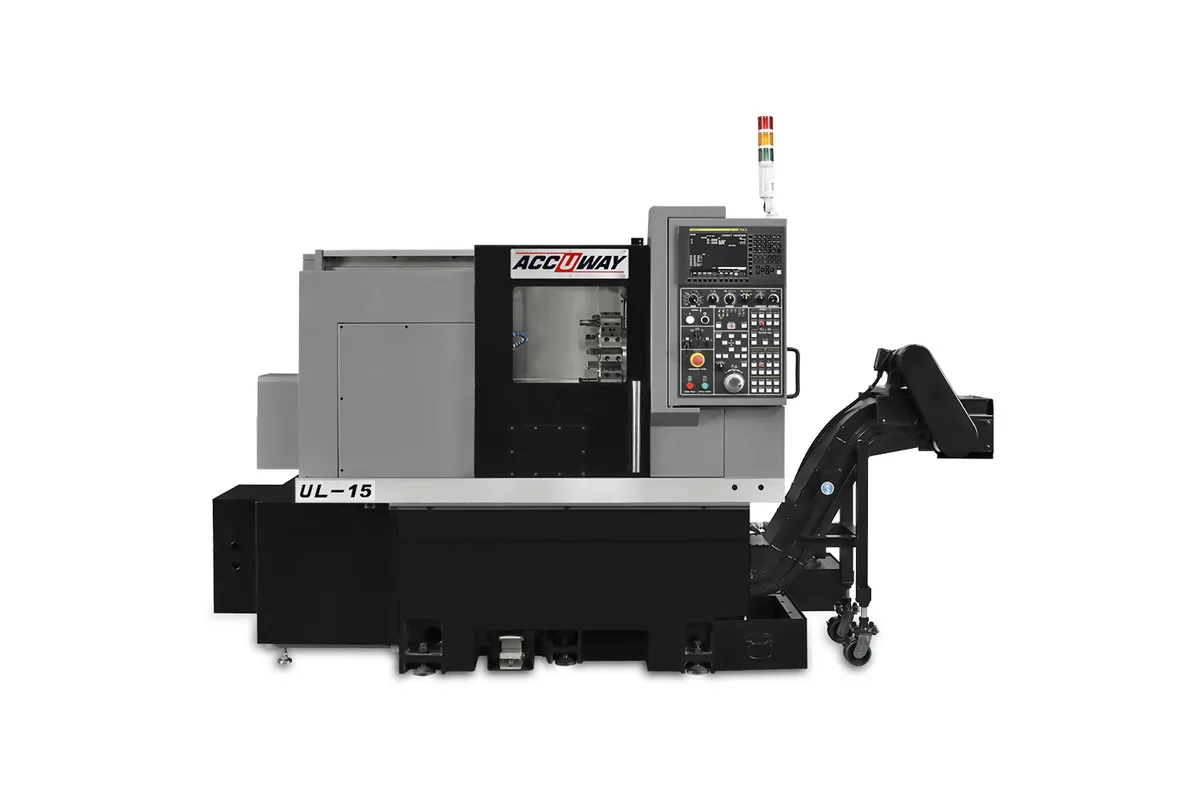

Accuway UL-15
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UL-15 cost?
Price estimate
We do not have a price for the Accuway UL-15 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UL-15 is a short, box-way lathe for 6 in and 8 in chuck work. Accuway's heading calls it a flat bed CNC turning center. It has 350 mm (13.8 in) of Z travel, 175 mm (6.9 in) of X travel and an 11/15 kW (14.8/20.1 hp) spindle motor in a machine that weighs 2,850 kg (6,283 lb).
That motor is the notable figure. It is the same rating Accuway fits to the larger UT-200, on a machine with about half the travel, so the UL-15 can take a full-depth cut on anything that fits its envelope. The envelope is a 280 mm (11.0 in) turning diameter and a 300 mm (11.8 in) turning length.
Three spindle columns are offered. A2-5 with a 6 in chuck passes a 44 mm (1.7 in) bar at 6,000 rpm. A2-6 with an 8 in chuck passes 52 mm (2.0 in) at 4,500 rpm or 65 mm (2.6 in) at 4,000 rpm. The turret follows the column, with 8, 10 or 12 BOT stations, and the square shank drops from 25 mm (1.0 in) to 20 mm (0.8 in) on the 12-station turret.
A tailstock is tabled, short like the machine: 200 mm (7.9 in) of body travel and an 80 mm (3.1 in) quill stroke, MT#4. Rapids are 20 m/min (787 in/min) in both axes. For production, the options include a bar feeder, a parts catcher and conveyor, a loader interface and a gantry loader system. The footprint is 2.2 x 1.5 x 1.7 m (86.6 x 59.1 x 66.9 in).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 455 mm (17.9 in) |
| Swing Over Saddle | 260 mm (10.2 in) |
| Max Turning Diameter | 280 mm (11.0 in) |
| Max Turning Length | 300 mm (11.8 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 / A2-6 / A2-6 |
| Chuck Size | 6 / 8 / 8 in |
| Bar Capacity | 44 / 52 / 65 mm (1.7 / 2.0 / 2.6 in) |
| Max Spindle Speed | 6,000 / 4,500 / 4,000 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| X Axis Travel | 175 mm (6.9 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 8 / 10 / 12 |
| Square Tool Shank | 25 / 25 / 20 mm (1.0 / 1.0 / 0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Tailstock Body Travel | 200 mm (7.9 in) |
| Tailstock Quill Travel | 80 mm (3.1 in) |
| Tailstock Quill Diameter | 70 mm (2.8 in) |
| Tailstock Quill Taper | MT#4 |
| Machine Dimensions | L x W x H: 2.2 x 1.5 x 1.7 m (86.6 x 59.1 x 66.9 in) |
| Machine Weight | 2,850 kg (6,283 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 11/15 kW (14.8/20.1 hp) spindle on a 2,850 kg (6,283 lb) machine
- Bar capacity up to 65 mm (2.6 in) with the A2-6 nose
- Footprint of 2.2 x 1.5 x 1.7 m (86.6 x 59.1 x 66.9 in)
- Box guideways and a tailstock with an MT#4 quill
- Gantry loader system and bar feeder on the option list
Limitations
- Turning length limited to 300 mm (11.8 in)
- No rotary tools; the UL-15M has them
- Tailstock body travel of 200 mm (7.9 in)
- Turret has 8 stations in the first spindle column
Best For
Frequently Asked Questions
01
Maximum turning diameter 280 mm (11.0 in), maximum turning length 300 mm (11.8 in), X travel 175 mm (6.9 in), Z travel 350 mm (13.8 in), spindle motor 11/15 kW (14.8/20.1 hp) and a weight of 2,850 kg (6,283 lb).
02
The three columns pair an A2-5 nose, 6 in chuck and 6,000 rpm with 8 stations; an A2-6 nose, 8 in chuck and 4,500 rpm with 10 stations; and an A2-6 nose with a 65 mm (2.6 in) bar and 4,000 rpm with 12 stations.
03
Bed length. The UL-20 has 625 mm (24.6 in) of Z travel, a 600 mm (23.6 in) turning length and weighs 3,350 kg (7,385 lb). The UL-15 has 350 mm (13.8 in), 300 mm (11.8 in) and 2,850 kg (6,283 lb).
04
Guideways and speed. The UL-15 has box ways and rapids at 20 m/min (787 in/min). The JT-150 has linear ways, rapids at 30 m/min (1,181 in/min) and 195 mm (7.7 in) of X travel. Spindle columns and motor rating are the same.
