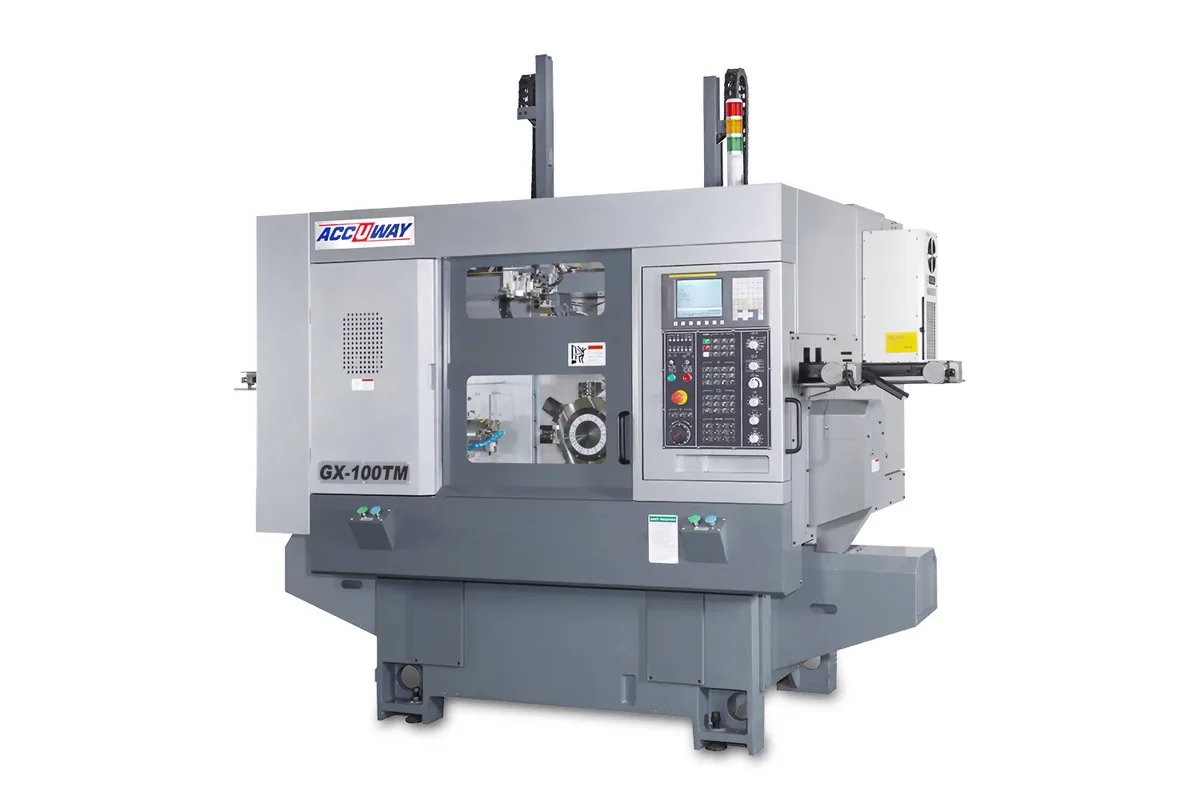

Accuway GX-100TM
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
max turning diameter sp1
max turning diameter sp2
How much does the Accuway GX-100TM cost?
Price estimate
We do not have a price for the Accuway GX-100TM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway GX-100TM swaps the gang slide of the GX-100 for a turret. It is a twin-spindle loader lathe with a 12-station BMT-45 turret, servo mechanical drive and rotary tools at 6,000 rpm.
A turret holds more tools than a gang plate of this size, and a driven turret can drill and mill. Both matter on small two-sided parts, where each side may need a turning tool, a boring bar, a drill and a cross hole. The rotary tool power is 3.7/5.5 kW (5.0/7.4 hp). Round shanks go up to 32 mm (1.3 in), where the GX-100 takes 25 mm (1.0 in).
The axis rows are unusual. X travel is 160 mm (6.3 in), with 145+15 mm (5.7+0.6 in) in brackets, which reads as a main stroke plus a short stroke past the spindle centreline. Z travel is 310 mm (12.2 in), bracketed as ±155 mm (±6.1 in). Turning diameter is 70 mm (2.8 in) at SP1 and SP2, larger than on the gang machine, and the turning length is 55 mm (2.2 in).
Both spindles are A2-5 with 5 in chucks, 6,000 rpm and 5.5/7.5 kW (7.4/10.1 hp). The integrated loader has a longer reach than on the GX-100, 580 mm (22.8 in) in its traverse axis and 550 mm (21.7 in) vertically, for the same material size of 10~50 mm (0.4~2.0 in). The cell measures 3 x 2 x 2.4 m (118.1 x 78.7 x 94.5 in) and weighs 3,300 kg (7,275 lb). Rotary tool holders are optional.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Max Turning Diameter Sp1 | 70 mm (2.8 in) |
| Max Turning Diameter Sp2 | 70 mm (2.8 in) |
| Max Turning Length | 55 mm (2.2 in) |
| Guideway Type | Linear |
| Spindle Nose | A2-5 |
| Chuck Size | 5 in |
| Bar Capacity | 30 mm (1.2 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| Spindle 2 Nose | A2-5 |
| Spindle 2 Chuck Size | 5 in |
| Spindle 2 Bar Capacity | 30 mm (1.2 in) |
| Spindle 2 Speed | 6,000 rpm |
| Spindle 2 Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | 160 mm (6.3 in), in brackets 145+15 mm (5.7+0.6 in) |
| Z Axis Travel | 310 mm (12.2 in), in brackets ±155 mm (±6.1 in) |
| Rapid Traverse X | 18 m/min (709 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Turret Tooling | BMT-45 |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 3 x 2 x 2.4 m (118.1 x 78.7 x 94.5 in) |
| Machine Weight | 3,300 kg (7,275 lb) |
| Loader Material Diameter | 10~50 mm (0.4~2.0 in) |
| Loader Material Length | 20~60 mm (0.8~2.4 in) |
| Loader Material Weight | One side: 0.5 kg (1 lb) |
| Loader Z Stroke | 580 mm (22.8 in) |
| Loader Z Rapid Traverse | 84 m/min (3,307 in/min) |
| Loader Y Stroke | 550 mm (21.7 in) |
| Loader Y Rapid Traverse | 84 m/min (3,307 in/min) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 12-station BMT-45 turret between two spindles
- Rotary tools at 6,000 rpm, 3.7/5.5 kW (5.0/7.4 hp)
- 70 mm (2.8 in) turning diameter at SP1 and SP2
- Integrated loader with a 580 mm (22.8 in) traverse stroke
- Linear guideways, 24 m/min (945 in/min) Z rapid
Limitations
- Turning length of 55 mm (2.2 in)
- Loader material length limited to 20~60 mm (0.8~2.4 in)
- 0 degree and 90 degree rotary tool holders are optional
- No Y-axis rows in the table
Best For
Frequently Asked Questions
01
A 12-station turret with BMT-45 tooling and servo mechanical drive. Maximum rotary tool speed is 6,000 rpm and rotary tool power 3.7/5.5 kW (5.0/7.4 hp). Shanks are 20 mm (0.8 in) square and 32 mm (1.3 in) round.
02
The X-axis row gives 160 mm (6.3 in), in brackets 145+15 mm (5.7+0.6 in). The Z-axis row gives 310 mm (12.2 in), in brackets ±155 mm (±6.1 in). Rapid traverse is 18 m/min (709 in/min) in X and 24 m/min (945 in/min) in Z.
03
Maximum turning diameter is 70 mm (2.8 in) at each spindle and maximum turning length 55 mm (2.2 in). The loader takes material of 10~50 mm (0.4~2.0 in) in diameter and 20~60 mm (0.8~2.4 in) in length.
04
The standard accessories are the Fanuc 0i-T controller, integrated loader, spindle air blow, rigid tapping, heat exchanger for the electric cabinet, 10.4" Colored LCD monitor, lubrication system, 4-bar coolant system and three-color working light.
