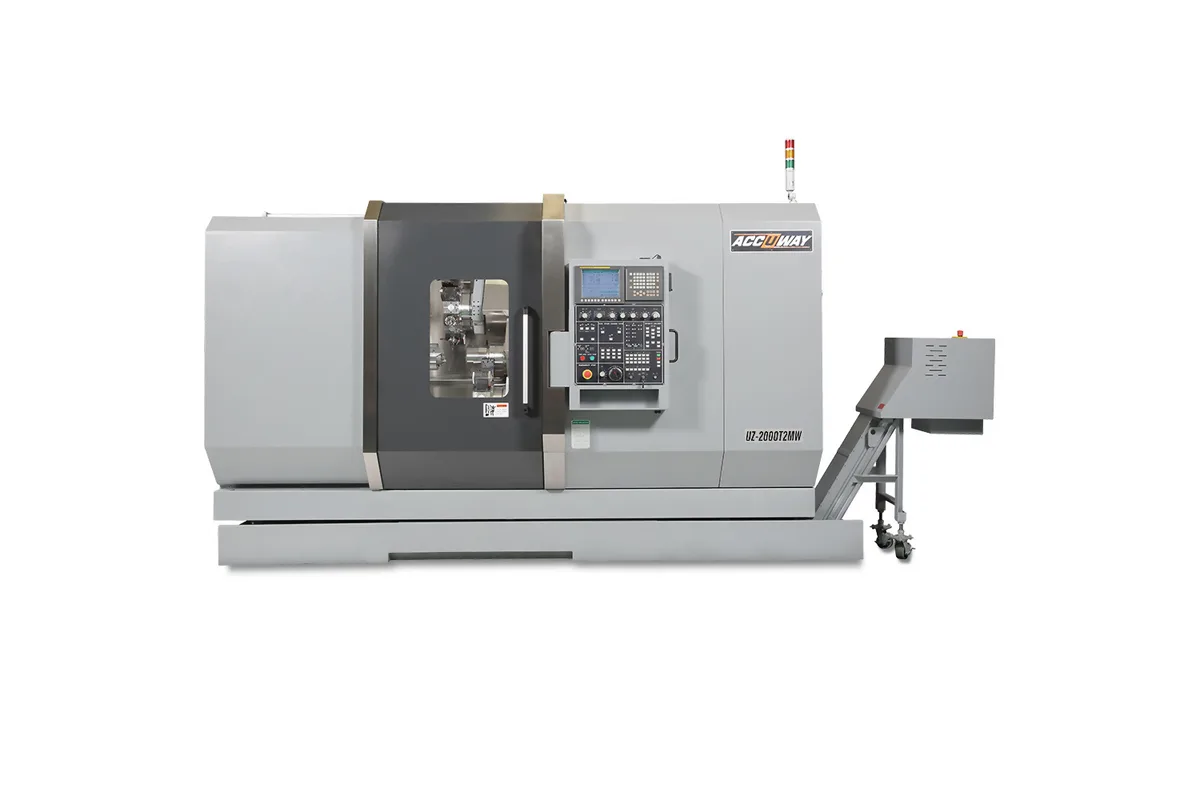

Accuway UZ-2000T2MW
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UZ-2000T2MW cost?
Price estimate
We do not have a price for the Accuway UZ-2000T2MW that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Shafts in volume are the target of the Accuway UZ-2000T2MW. It has one spindle, a tailstock and two live turrets, so two tools cut the same shaft at once while it is held between chuck and centre. Accuway's heading is Multi-Axis Machine for Mass Production.
Two turrets on a shaft do more than halve the cutting time. With a tool on each side of the part, cutting forces largely oppose each other, so a slender shaft bends less and can be cut harder. One turret can also turn while the other drills or mills with its rotary tools, which run at 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp). There are 16+16 stations with BMT-40 tooling.
Maximum turning length is 790 mm (31.1 in) at a turning diameter of 320 mm (12.6 in). X1/X2 travel is 210 mm (8.3 in) and Z1/Z2 travel 840 mm (33.1 in). The tailstock body moves 770 mm (30.3 in); its quill is 85 mm (3.3 in) in diameter with an MT#5 taper and 120 mm (4.7 in) of travel.
Three spindle columns are tabled. The A2-5 version is a built-in spindle at 5,000 rpm with a 6 in chuck. The A2-8 and A2-11 versions are belt driven at 3,500 rpm and 2,500 rpm, with 10 in and 15 in chucks and bar capacity up to 105 mm (4.1 in). Rapids on this model are 20 m/min (787 in/min) in X1/X2 and 36 m/min (1,417 in/min) in Z1/Z2. It weighs 10,500 kg (23,148 lb) and is 5.1 m long. The page has no accessory lists and no Y-axis rows.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 660 mm (26.0 in) |
| Swing Over Saddle | 620 mm (24.4 in) |
| Max Turning Diameter | 320 mm (12.6 in) |
| Max Turning Length | 790 mm (31.1 in) |
| Guideway Type | Linear + Box |
| Spindle Nose | A2-5 / A2-8 / A2-11 |
| Chuck Size | 6 / 10 / 15 in |
| Bar Capacity | 52 / 78 / 105 mm (2.0 / 3.1 / 4.1 in) |
| Max Spindle Speed | 5,000 rpm (Built-in) / 3,500 rpm (Belt) / 2,500 rpm (Belt) |
| Spindle Motor Power | 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp), Cont. / 30min |
| Tailstock Body Travel | 770 mm (30.3 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 85 mm (3.3 in) |
| Tailstock Quill Taper | MT#5 |
| X1 X2 Axis Travel | 210 mm (8.3 in) |
| Z1 Z2 Axis Travel | 840 mm (33.1 in) |
| Rapid Traverse X1 X2 | 20 m/min (787 in/min) |
| Rapid Traverse Z1 Z2 | 36 m/min (1,417 in/min) |
| Turret Tooling | BMT-40 |
| Turret Drive | Servo mechanical |
| Turret Stations | 16+16 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 5.1 x 2.4 x 2.4 m (200.8 x 94.5 x 94.5 in) |
| Machine Weight | 10,500 kg (23,148 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two live turrets, 16+16 stations, on one spindle with tailstock
- Rotary tools at 6,000 rpm with 3.7/5.5 kW (5.0/7.4 hp)
- 790 mm (31.1 in) turning length
- Z1/Z2 rapid traverse of 36 m/min (1,417 in/min)
- Spindle choices from a 5,000 rpm built-in unit to A2-11 with a 15 in chuck
Limitations
- Single spindle: no back-side machining in the cycle
- No Y-axis rows in the table
- X1/X2 rapid of 20 m/min (787 in/min), slower than the UZ-2000T2W
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
A two-turret, single-spindle turning machine with a tailstock and rotary tools. It has 16+16 stations, turns up to 320 mm (12.6 in) in diameter and 790 mm (31.1 in) in length, and weighs 10,500 kg (23,148 lb).
02
The UZ-2000T2W has no rotary tool rows and rapids at 24 m/min (945 in/min) in X1/X2 and 40 m/min (1,575 in/min) in Z1/Z2. The UZ-2000T2MW has rotary tools at 6,000 rpm and rapids at 20 m/min (787 in/min) and 36 m/min (1,417 in/min).
03
Tailstock body travel is 770 mm (30.3 in), quill travel 120 mm (4.7 in), quill diameter 85 mm (3.3 in) and quill taper MT#5.
04
A2-5 with a 6 in chuck and 52 mm (2.0 in) bar at 5,000 rpm (Built-in), A2-8 with a 10 in chuck and 78 mm (3.1 in) at 3,500 rpm (Belt), or A2-11 with a 15 in chuck and 105 mm (4.1 in) at 2,500 rpm (Belt). Motor power is 11/15 kW (14.8/20.1 hp).
