Pinnacle L210C

Q: How much does the Pinnacle L210C cost?

The price estimate for the Pinnacle L210C is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-l210c#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

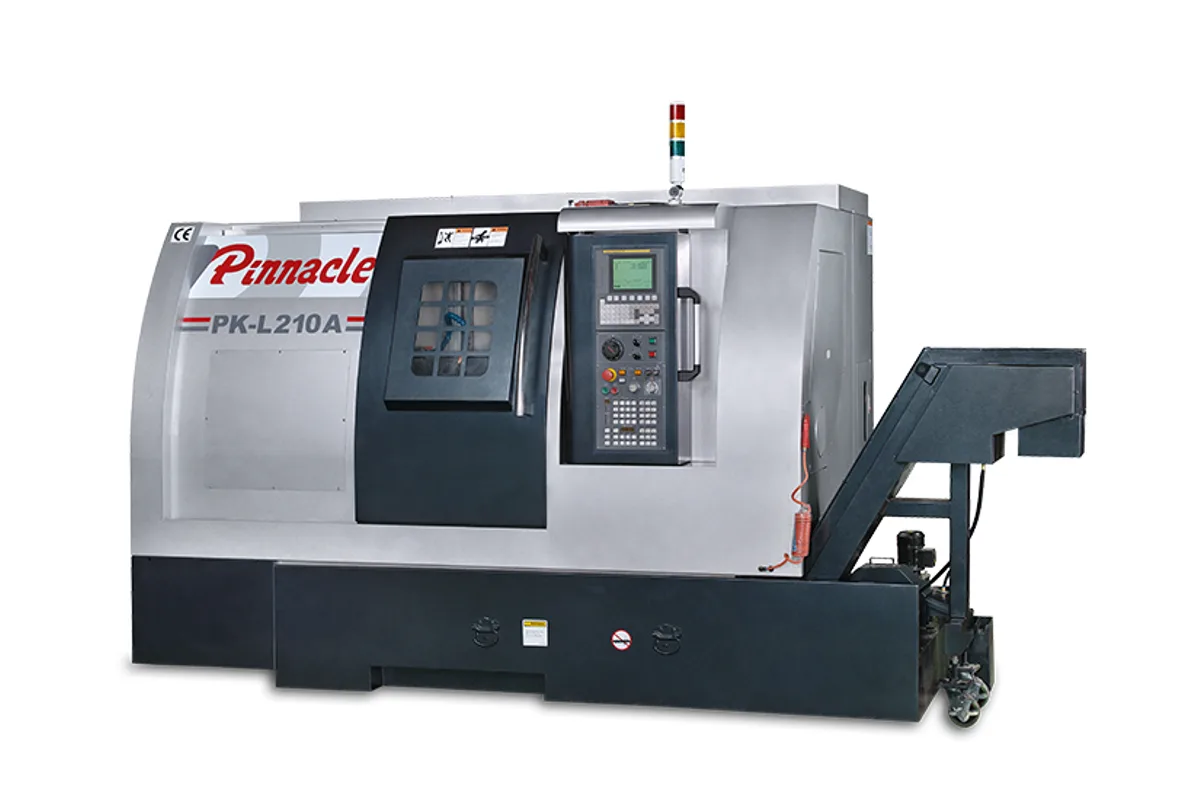

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Power

15 / 18.5 kW (20.1 / 24.8 hp)

Max Turn Length

610 mm (24.0 in)

swing over bed

Ø520 mm (Ø20.5 in)

swing over cross slide

Ø360 mm (Ø14.2 in)

distance between centers

610 mm (24.0 in)

max turning diameter

Ø440 mm (Ø17.3 in)

How much does the Pinnacle L210C cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle L210C that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Bar capacity is the reason to choose the Pinnacle L210C: Ø77 mm (Ø3.0 in), through an Ø88 mm (Ø3.5 in) spindle bore on an A2-8 nose. The L210A and L210B stop at Ø65 mm (Ø2.6 in).

The bigger spindle comes with a bigger motor, 15 / 18.5 kW (20.1 / 24.8 hp), and a lower speed range of 35 - 3,500 rpm. For large-diameter steel that is the right direction: surface speed at big diameters does not need high rpm, and the extra power goes into depth of cut. Small aluminium parts are better served by the 4,500 rpm L210A.

The power has a consequence for the building. Pinnacle lists a 30 kVA requirement for the L210C against 20 kVA for the L210A. Weight is 4,200 kg (9,259 lb) in the same 2.7 x 1.6 x 1.8 m outline.

The chuck is 10 in and the working envelope is that of the whole L210 family: Ø440 mm (Ø17.3 in) maximum turning diameter, 610 mm (24.0 in) turning length, 210 mm (8.3 in) of X. Rapids are 20 / 24 m/min and cutting feed runs 0.016 ~ 5,000 mm/min. The slant bed carries a rigid 10-station turret, and the base is rib reinforced Meehanite cast iron.

Full Specifications

Parameter	Value
Swing Over Bed	Ø520 mm (Ø20.5 in)
Swing Over Cross Slide	Ø360 mm (Ø14.2 in)
Distance Between Centers	610 mm (24.0 in)
Max Turning Diameter	Ø440 mm (Ø17.3 in)
Standard Turning Diameter	Ø290 mm (Ø11.4 in)
Max Turning Length	610 mm (24.0 in)
Spindle Motor Power	15 / 18.5 kW (20.1 / 24.8 hp)
Spindle Speed	35 - 3,500 rpm
Spindle Nose	A2-8
Chuck Size	10"
Spindle Bore	Ø88 mm (Ø3.5 in)
Bar Capacity	Ø77 mm (Ø3.0 in)
Tailstock Taper	MT4
Tailstock Quill Diameter X Travel	Ø85 x 80 mm (Ø3.3 x 3.1 in)
Tailstock Travel	470 mm (18.5 in)
X Axis Travel	210 mm (8.3 in)
Z Axis Travel	610 mm (24.0 in)
Rapid Traverse Xz	20 / 24 m/min
Cutting Feed Rate	0.016 ~ 5,000 mm/min
Turret Stations	10
Turret Index Time	0.13 sec (T-T)
Tool Shank Size	□25 mm (□1.0 in)
Boring Bar Diameter	Ø40 mm (Ø1.6 in)
Power Requirement	Ø3, 30 kVA
Air Requirement	6 kg/cm²
Machine Dimensions	2.7 x 1.6 x 1.8 m (L x W x H)
Machine Weight	4,200 kg (9,259 lb)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Ø77 mm (Ø3.0 in) bar capacity through an Ø88 mm (Ø3.5 in) bore
15 / 18.5 kW (20.1 / 24.8 hp) spindle motor on an A2-8 nose
Same 2.7 x 1.6 x 1.8 m outline as the smaller-spindle L210A
Rapids of 20 / 24 m/min on box ways

Limitations

Top speed is 3,500 rpm, against 4,500 rpm on the L210A
Needs a 30 kVA supply, where the L210A runs on 20 kVA
10 in chuck only; the 12 in chuck is the L210D
Turning length is 610 mm (24.0 in), with no longer bed in the table

Best For

Bar work up to Ø77 mm (Ø3.0 in) Heavier cuts in steel with 15 / 18.5 kW (20.1 / 24.8 hp) Large-diameter chucking work at moderate spindle speeds

Frequently Asked Questions

01 What is the bar capacity of the Pinnacle L210C?

Ø77 mm (Ø3.0 in), with a Ø88 mm (Ø3.5 in) hole through the spindle. The L210A and L210B, which use the A2-6 spindle, are listed at Ø65 mm (Ø2.6 in) of bar capacity and a Ø77 mm (Ø3.0 in) hole.

02 Why is the L210C slower than the L210A?

It has the larger A2-8 spindle. Pinnacle lists 35 - 3,500 rpm for the L210C and 45 - 4,500 rpm for the L210A. In exchange the motor goes from 11 / 15 kW (14.8 / 20.1 hp) on the L210A to 15 / 18.5 kW (20.1 / 24.8 hp).

03 What power supply does the L210C need?

The power requirement is listed as 30 kVA and the air requirement as 6 kg/cm². The spindle motor is 15 / 18.5 kW (20.1 / 24.8 hp). The machine weighs 4,200 kg (9,259 lb) and measures 2.7 x 1.6 x 1.8 m.

04 What are the axis travels and feeds of the L210C?

X travel is 210 mm (8.3 in) and Z travel is 610 mm (24.0 in). Rapid speed is 20 / 24 m/min and cutting feed is 0.016 ~ 5,000 mm/min. The turret indexes tool to tool in 0.13 sec.
