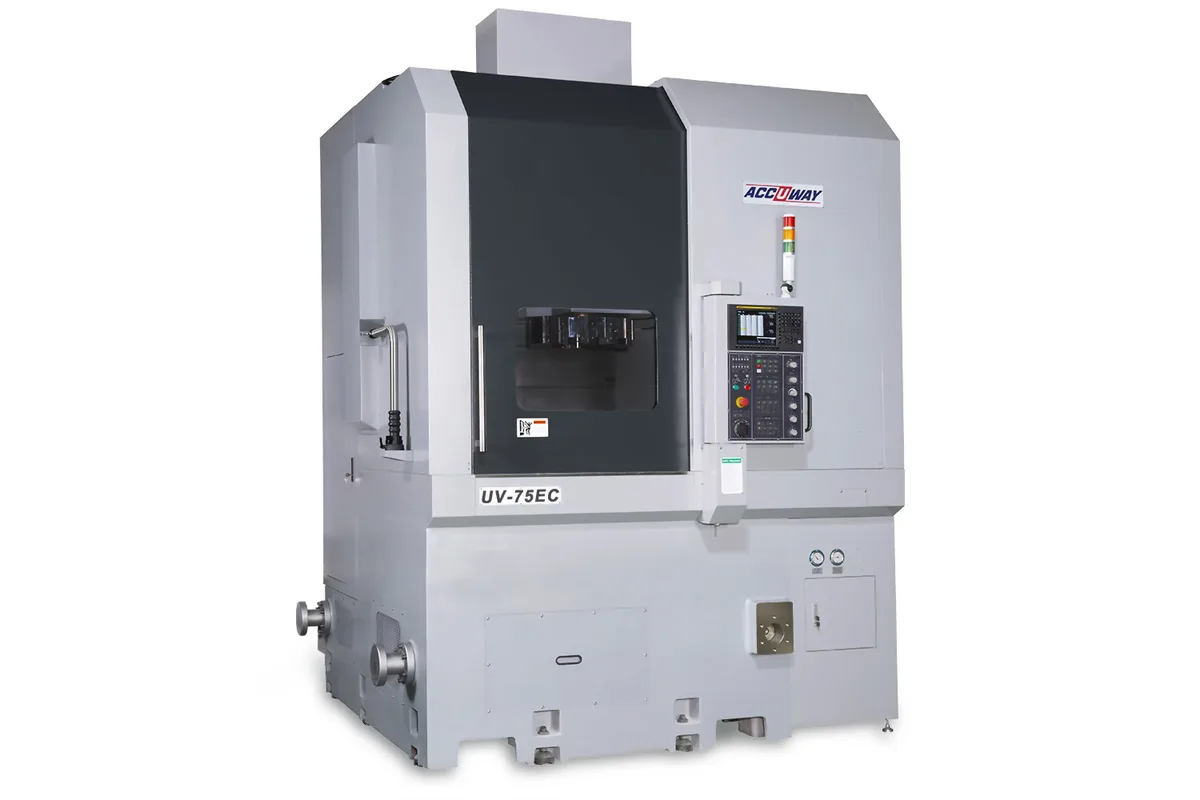

Accuway UV-75EC
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
max turning diameter
How much does the Accuway UV-75EC cost?
Price estimate
We do not have a price for the Accuway UV-75EC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the Accuway UV-75EC the 750 mm class vertical lathe gets a BMT turret with servo mechanical drive in place of the hydraulic BOT unit. The rest of the table is that of the UV-75E: 750 mm (29.5 in) maximum turning diameter, 700 mm (27.6 in) turning length, an A2-11 spindle and 15,000 kg (33,069 lb) of machine.
For a part this size, live tooling changes the routing. A flange 700 mm across that needs a bolt circle would otherwise be lifted to a machining center and re-clocked. The options list for the UV-75EC includes 0 degree and 90 degree rotary tool holders, so holes and flats can be cut in the same chucking. The table does not print rotary tool speed or power, however, and those must be confirmed.
Spindle power is 18.5/22 kW (24.8/29.5 hp) with belt drive. Speed reads 1,600 (630) rpm and the chuck 24 (32) in, the brackets being unexplained on the page; an upgrade to a 32" (40") hydraulic chuck and cylinder and a gearbox are both optional.
The 12 stations take 32 mm (1.3 in) square and 50 mm (2.0 in) round shanks. X travel is 420 mm (16.5 in) and Z is 800 mm (31.5 in), on guideways listed as Linear (Box way). The machine stands 4.2 m tall. Control is a FANUC 0i-T; an auto door and a Heidenhain linear scale are optional accessories.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 850 mm (33.5 in) |
| Max Turning Diameter | 750 mm (29.5 in) |
| Max Turning Length | 700 mm (27.6 in) |
| Guideway Type | Linear (Box way) |
| Spindle Nose | A2-11 |
| Chuck Size | 24 (32) in |
| Max Spindle Speed | 1,600 (630) rpm |
| Spindle Drive | Belt |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 420 mm (16.5 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 7 m/min (276 in/min) |
| Turret Tooling | BMT |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Machine Dimensions | L x W x H: 2.6 x 3.7 x 4.2 m (102.4 x 145.7 x 165.4 in) |
| Machine Weight | 15,000 kg (33,069 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- BMT servo mechanical turret on a 750 mm (29.5 in) vertical turning center
- Optional 0 degree and 90 degree rotary tool holders for drilling and milling in one chucking
- 18.5/22 kW (24.8/29.5 hp) spindle on an A2-11 nose
- 12 stations with 50 mm (2.0 in) round shank capacity
Limitations
- No rotary tool speed or power is printed in the table
- X travel of 420 mm (16.5 in), with no Y axis
- Machine height is 4.2 m on a 2.6 x 3.7 m footprint
- Larger chucks and the gearbox are options
Best For
Frequently Asked Questions
01
Accuway does not define the letter. In the table, the UV-75EC has BMT tooling with a servo mechanical turret, where the UV-75E has BOT tooling with a hydraulic turret, and its options add 0 degree and 90 degree rotary tool holders.
02
X travel is 420 mm (16.5 in) with a rapid traverse of 20 m/min (787 in/min). Z travel is 800 mm (31.5 in) at 7 m/min (276 in/min). Swing over bed is 850 mm (33.5 in).
03
The chuck diameter row reads 24 (32) in. The optional accessories list an upgrade to a non-through hole 3-jaw 32" (40") hydraulic chuck and cylinder. The spindle nose is A2-11.
04
A FANUC 0i-T controller, an RJ-45 interface, a 10.4" colored LCD monitor, a hydraulic power supply unit, a 4-bar coolant system, a single chain type chip conveyor with chip cart, a three-color warning light and a tool kit.
More from Accuway
Other CNC Lathes / Turning Centers
DN Solutions PUMA VTR 1216 F

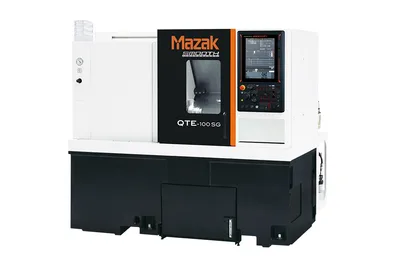

Mazak QTE

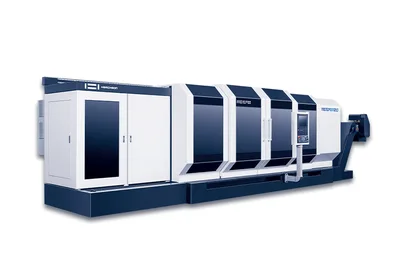

Hwacheon MEGA+140
