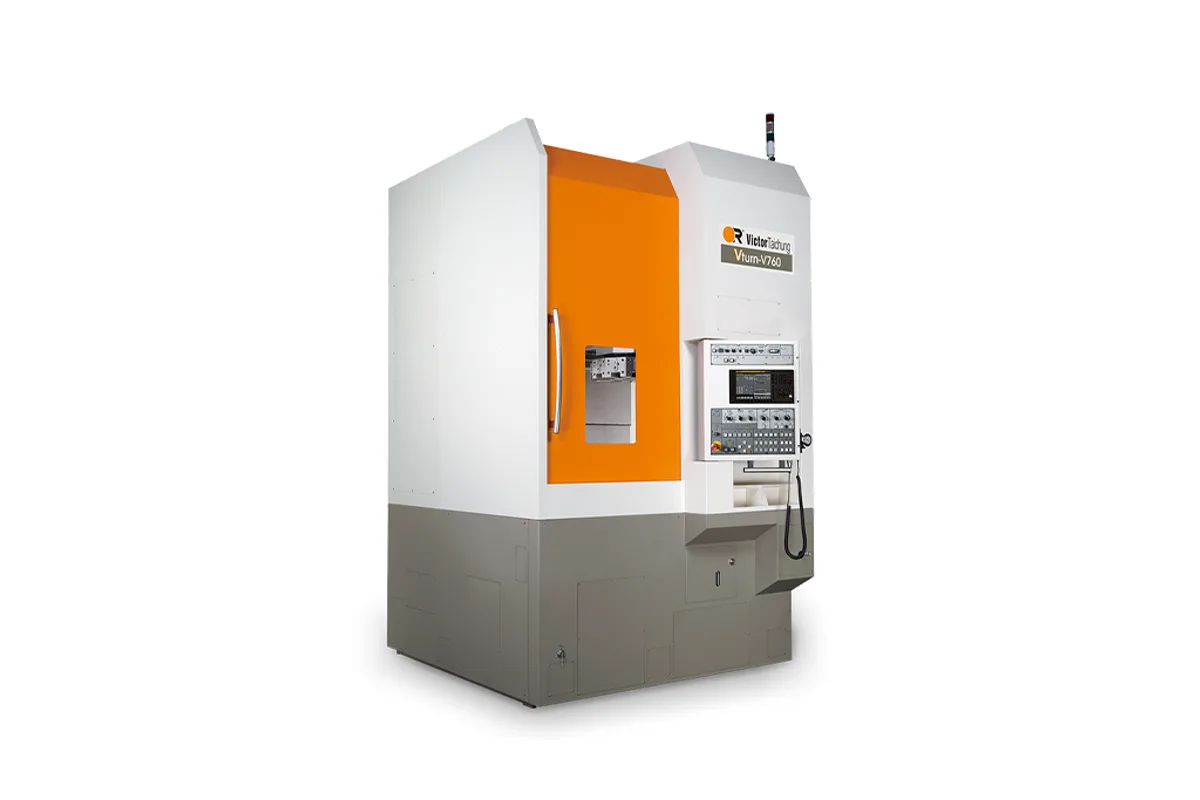

Victor Taichung Vturn-V760
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-V760 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-V760 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-V760 is a geared vertical turning lathe for parts up to Ø760 mm (Ø29.92 in) in diameter and 760 mm (29.92 in) tall. Its spindle has an A2-11 nose with an 18 in chuck and runs to 2,000 rpm. Weight is 12,500 kg (27,557.74 lb), double that of the Vturn-V560.
The drive is the centre of the design. Victor Taichung fits a wide-range spindle motor coupled to a gearbox and says the pairing gives high torque at extremely low spindle speeds. That is what large cast and forged discs need, since a face of that size is cut at low spindle speed. The structure is Meehanite cast iron with wide-span box slideways, and an oil cooler for the gearbox is standard.
Between the two configurations very little moves. The C Axis machine is listed at Ø730 mm (Ø28.74 in) maximum turning diameter and takes VDI-50 tooling in place of □32 mm shanks. Standard turning diameter is Ø630 mm (Ø24.8 in), turning length 760 mm (29.92 in) and the turret count 12 in both columns.
Chuck options run well past the standard size, each with its own speed limit, and a higher column adds 100mm. The maker notes a swing of 900mm for the model. Swing over the carriage in the table is Ø650 mm (Ø25.59 in).
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | Ø630 mm (Ø24.8 in) |
| Max Turning Diameter | 2 Axis: Ø760 mm (Ø29.92 in); C Axis: Ø730 mm (Ø28.74 in) |
| Max Turning Length | 760 mm (29.92 in) |
| Swing Over Carriage | Ø650 mm (Ø25.59 in) |
| Max Spindle Speed | 2,000 rpm |
| Spindle Nose | A2-11 (18") |
| Turret Tools | 12 |
| Tool Shank Size | 2 Axis: □32 mm; C Axis: VDI-50 |
| Machine Weight | 12,500 kg (27,557.74 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Wide-range spindle motor coupled with a gearbox for torque at low speed
- Ø760 mm (Ø29.92 in) maximum turning diameter with an 18 in chuck
- 12-tool turret in both configurations
- Wide-span box slideways in a Meehanite cast iron structure
- Oil cooler for the gearbox is standard
Limitations
- 2,000 rpm top speed limits small-diameter finishing
- The C Axis machine drops to Ø730 mm (Ø28.74 in) of turning diameter
- 12,500 kg (27,557.74 lb) needs a proper foundation
- Larger chucks are options and lower the permitted speed
Best For
Frequently Asked Questions
01
Up to Ø760 mm (Ø29.92 in) in diameter on the 2 Axis machine, or Ø730 mm (Ø28.74 in) with the C axis, and up to 760 mm (29.92 in) in turning length. Standard turning diameter is Ø630 mm (Ø24.8 in).
02
A wide-range Fanuc spindle motor coupled with a gearbox, which the maker says provides high torque at extremely low spindle speeds. Maximum speed is 2,000 rpm on an A2-11 nose with an 18 in chuck.
03
The 2 Axis column lists □32 mm shank tools and the C Axis column lists VDI-50 tooling, with 12 tools in the turret either way. A VDI turret also appears on the option list.
04
The Vturn-V760 turns Ø760 mm (Ø29.92 in) at up to 2,000 rpm and weighs 12,500 kg (27,557.74 lb). The Vturn-V1000 turns Ø1,000 mm (Ø39.37 in) at up to 1,500 rpm and weighs 16,000 kg (35,273.91 lb).
